Removal Procedure

  1. Remove the cruise control cable from the cruise control module. Refer to Cruise Control Cable Replacement .
  2. Disconnect the electrical connector from the cruise control module.
    Fig 1: Remove Cruise Control Cable & Electrical Connector
    G01831009Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control module to the shock tower nuts.

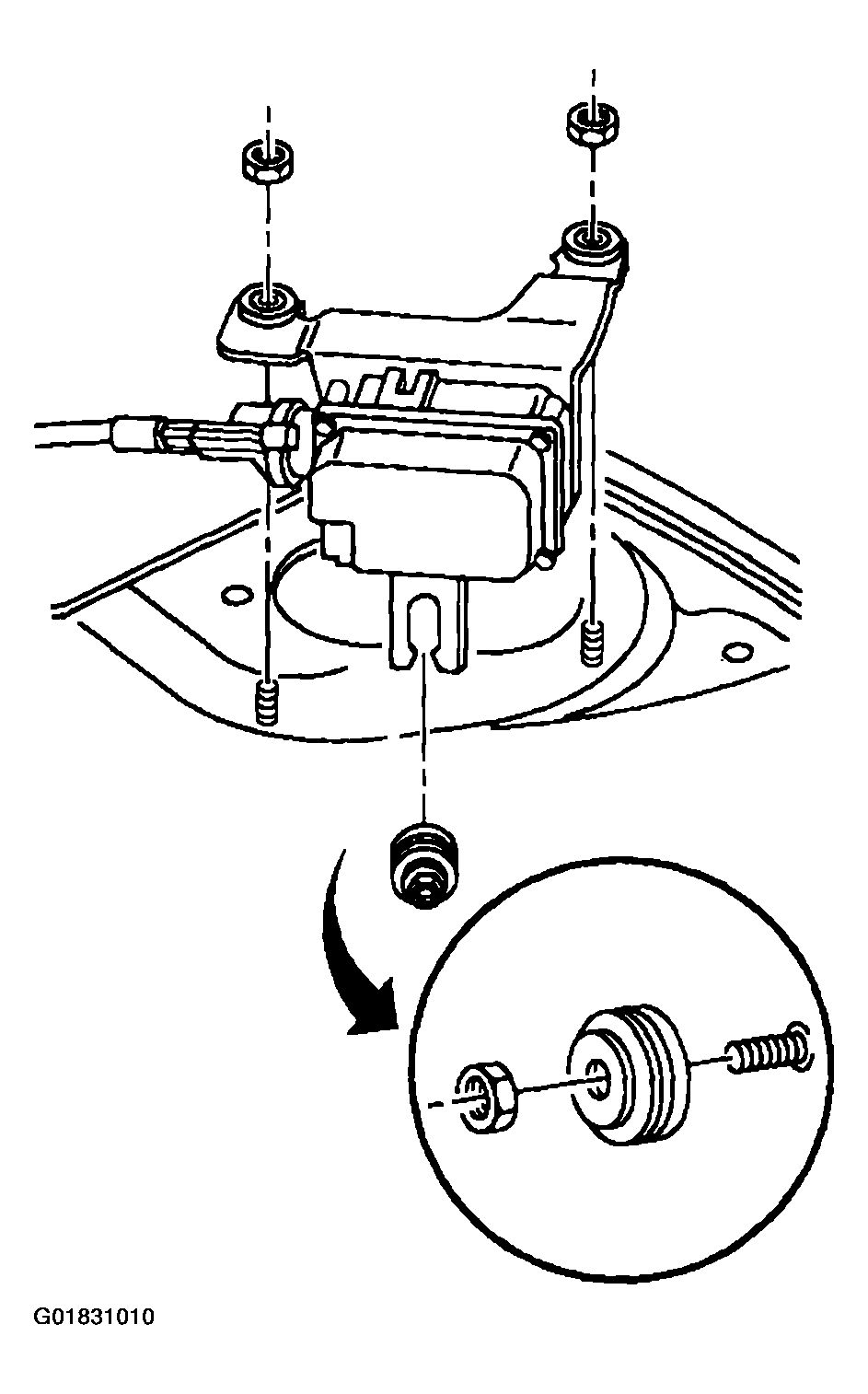

    Fig 2: Remove Cruise Control Module To Shock Tower Nuts
    G01831010Courtesy of GENERAL MOTORS CORP.
