HVAC Control Module Replacement

REMOVAL PROCEDURE

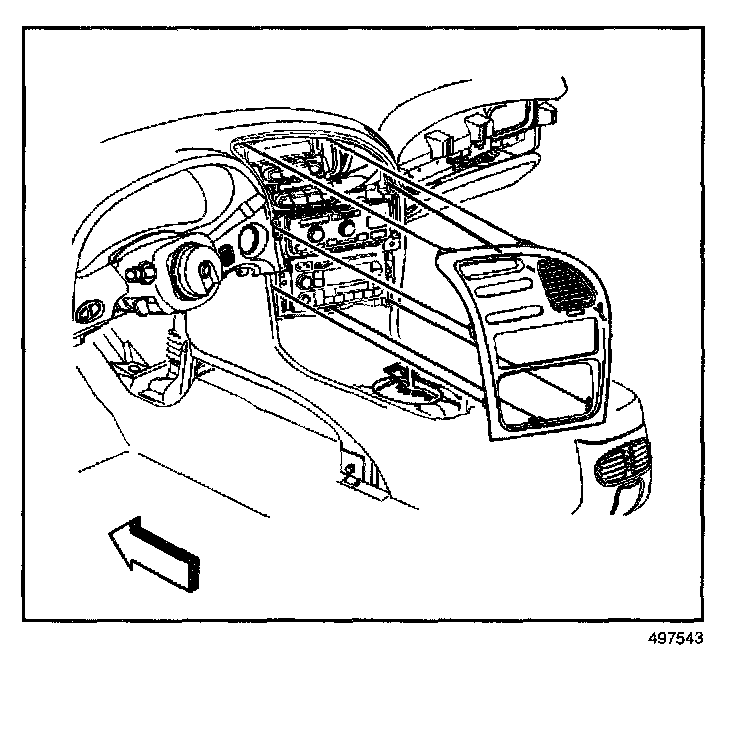

1. Remove the center IP trim panel.
2. Pinch the tabs on the control module and pull rearward on the control module to remove from the instrument panel.

INSTALLATION PROCEDURE




1. Install the control module into the instrument panel ensuring the tabs are seated into the IP.
2. Install the center IP trim panel.
3. Reprogram the control module. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) or Body Control Module (BCM) Programming/RPO Configuration (IPM) or Body Control Module (BCM) Programming/RPO Configuration (RIM) in Body Control System.
