Scan Tool Data List - Dash Integration Module (DIM)

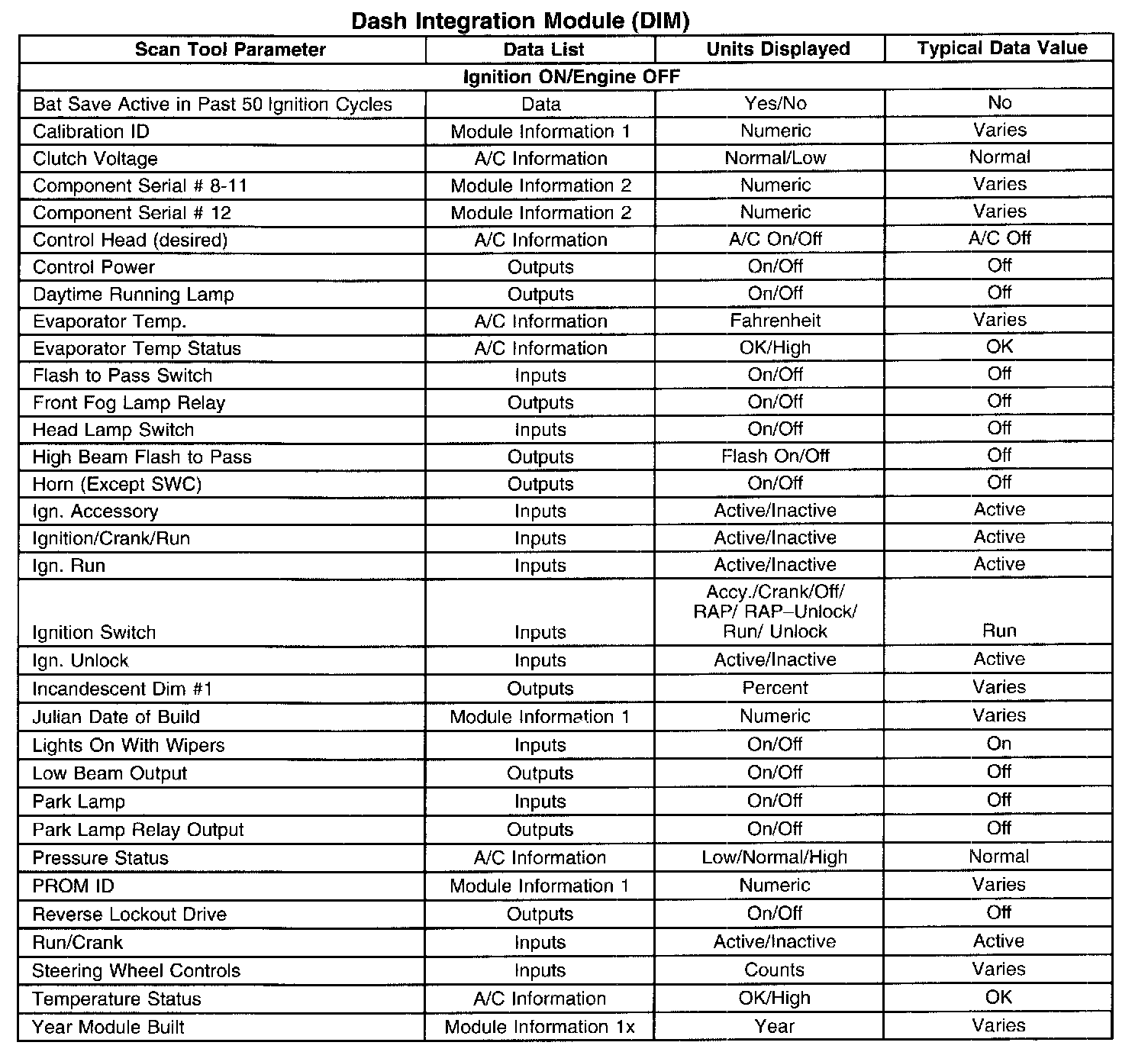

Dash Integration Module (DIM) Part 1:



Dash Integration Module (DIM) Part 2:
