Home >> Oldsmobile >> 2002 >> Alero L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly

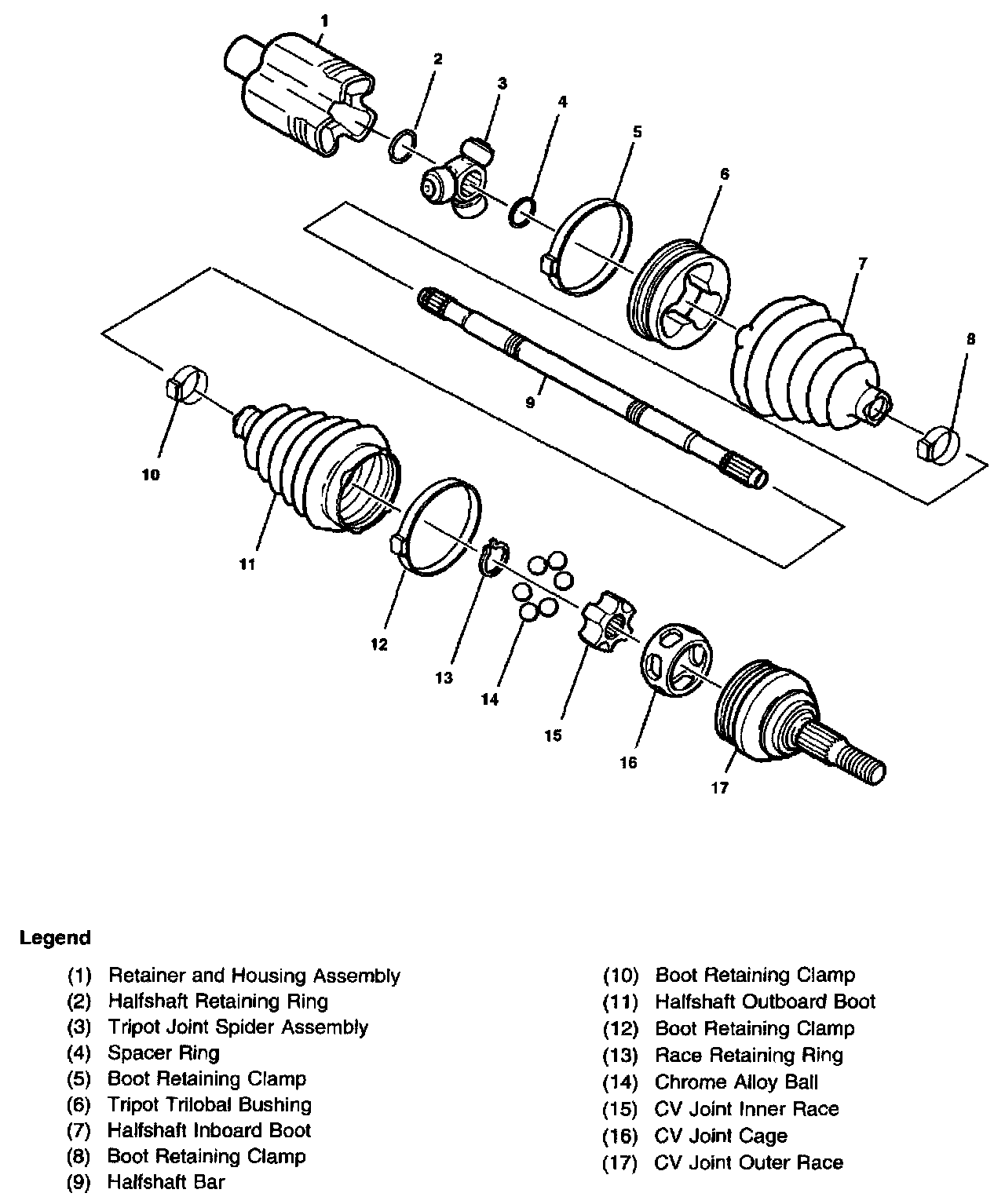

Axle Shaft Assembly
