Instrument Panel Control Module: Diagrams

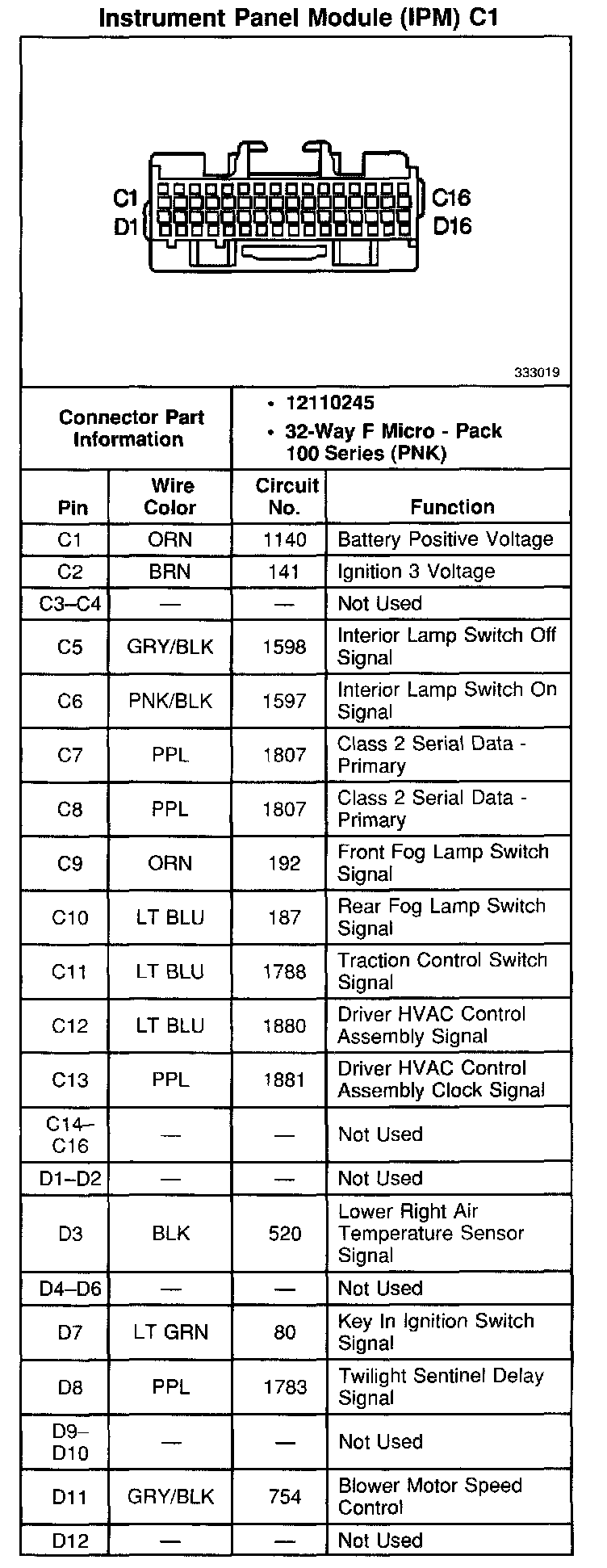

Instrument Panel Module (IPM) C1 (Part 1 Of 2):

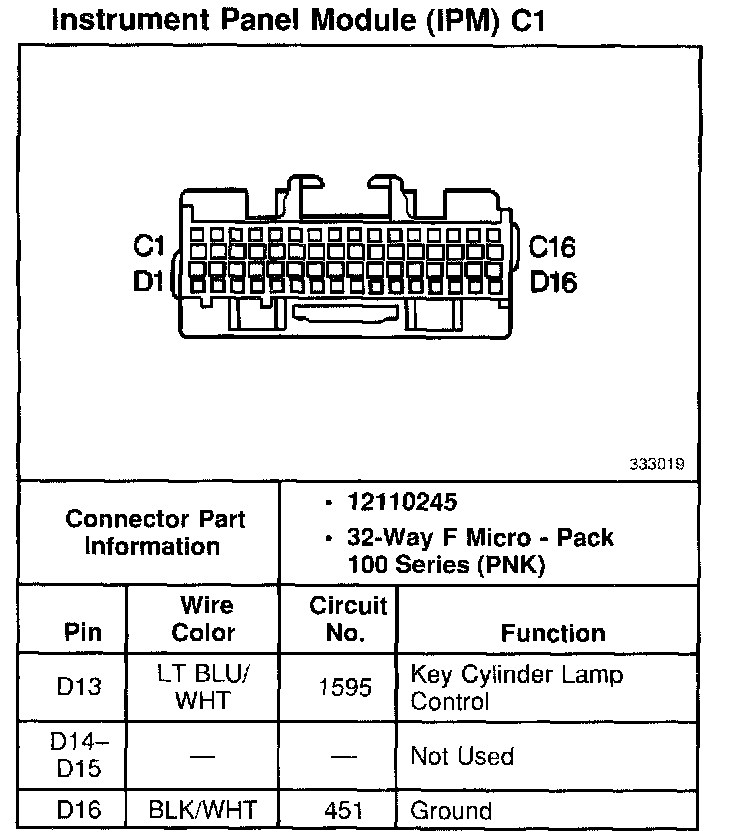

Instrument Panel Module (IPM) C1 (Part 2 Of 2):

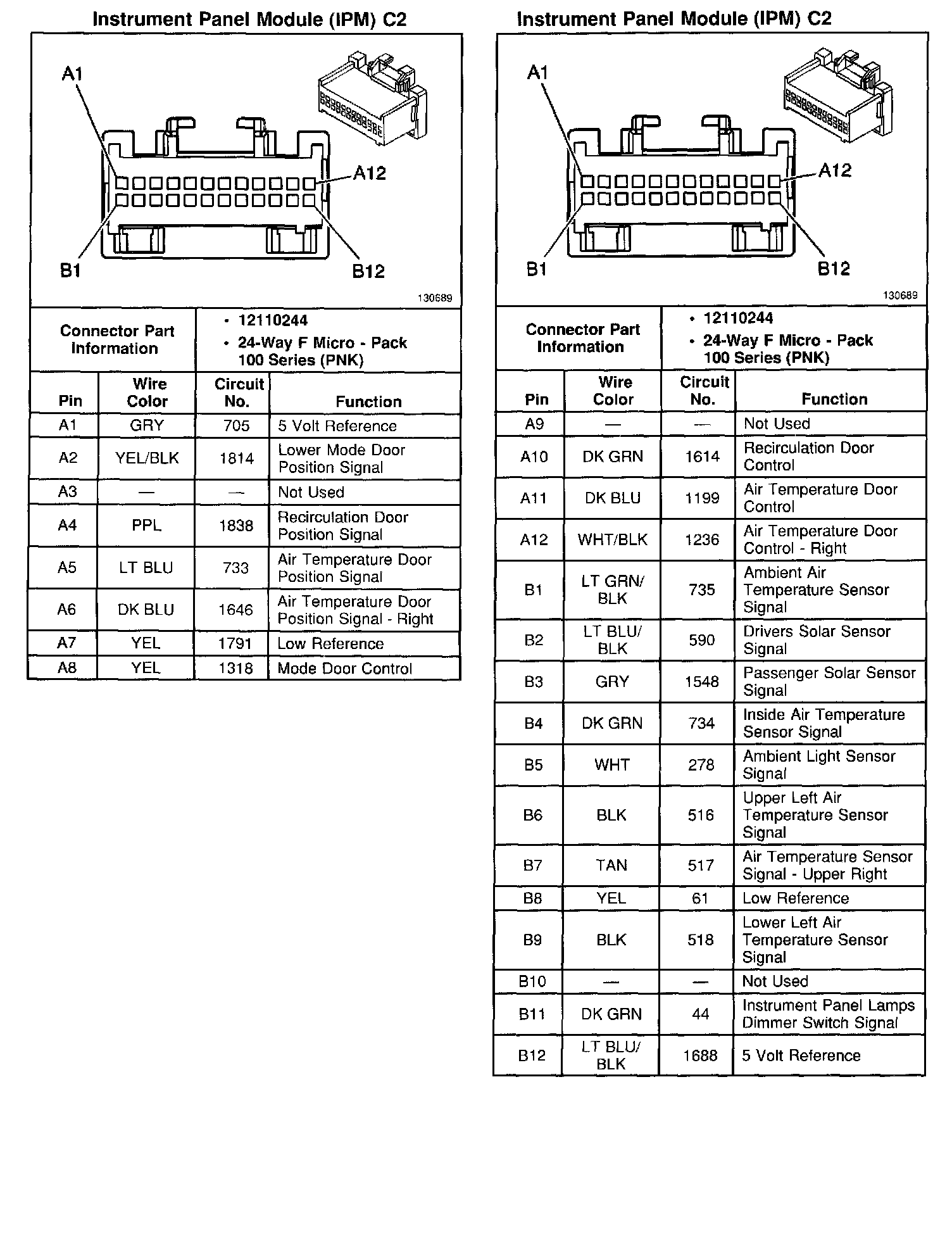

Instrument Panel Module (IPM) C2:
