Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Device Controls
Device Controls

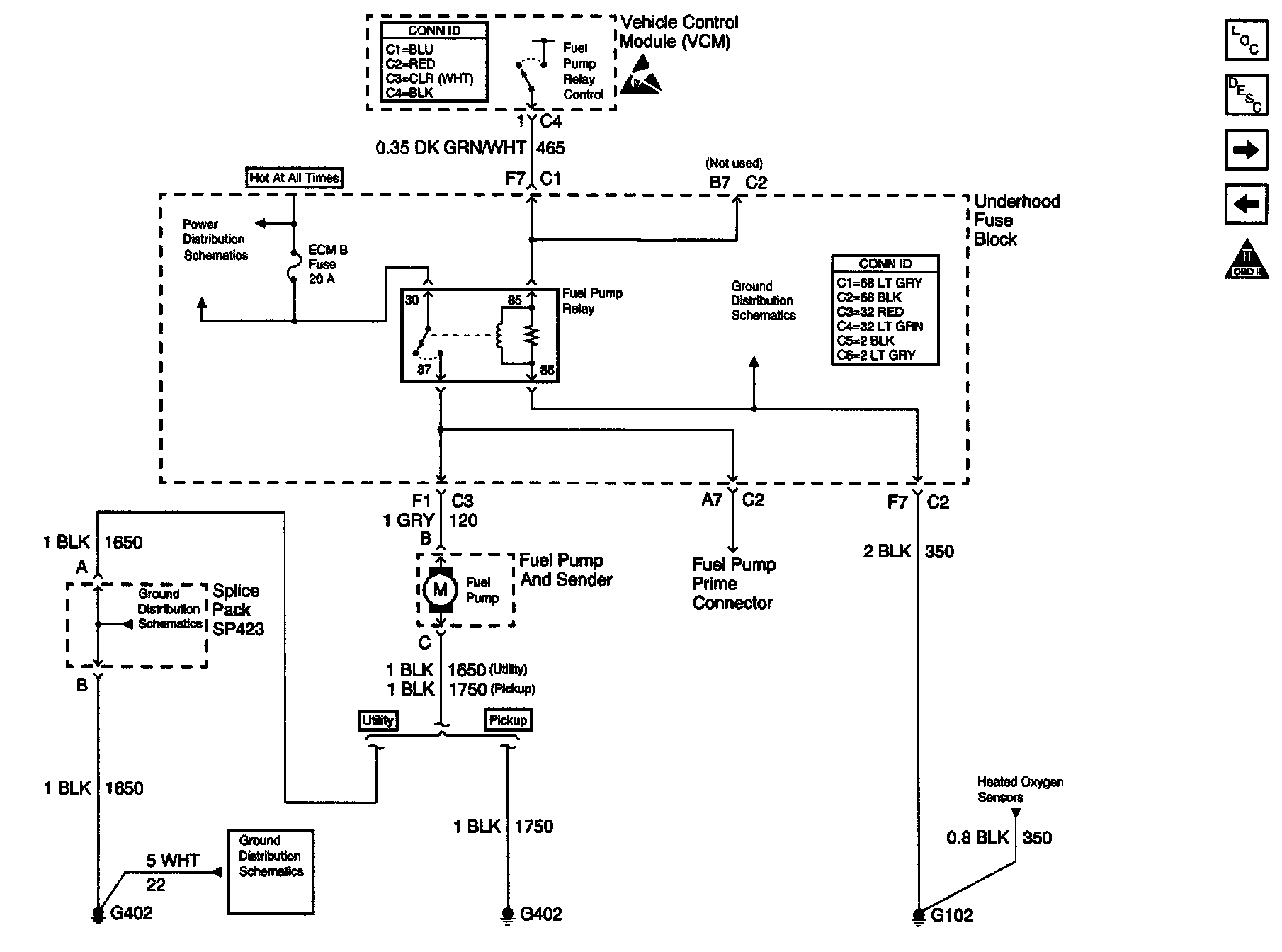

Engine Control Schematics: Fuel Pump Controls:
