Home >> Oldsmobile >> 2000 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations >> Connector Locations >> Vehicle Control Module (VCM) Connector C4

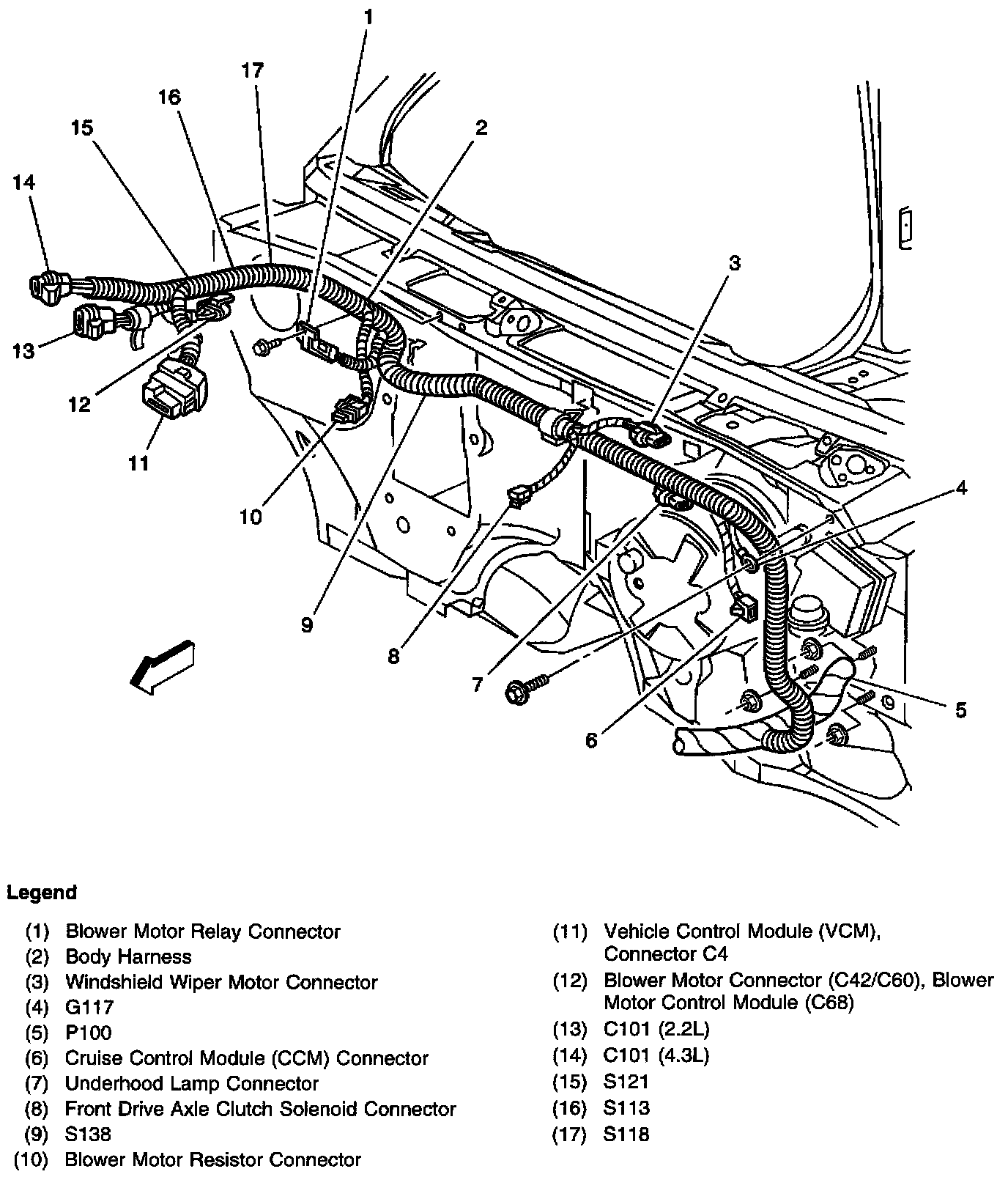

Vehicle Control Module (VCM) Connector C4

Locations View:
