PWR,GND,Transfer Case Shift CNTRL Module & VIU
PWR,GND,Transfer Case Shift CNTRL Module & VIU

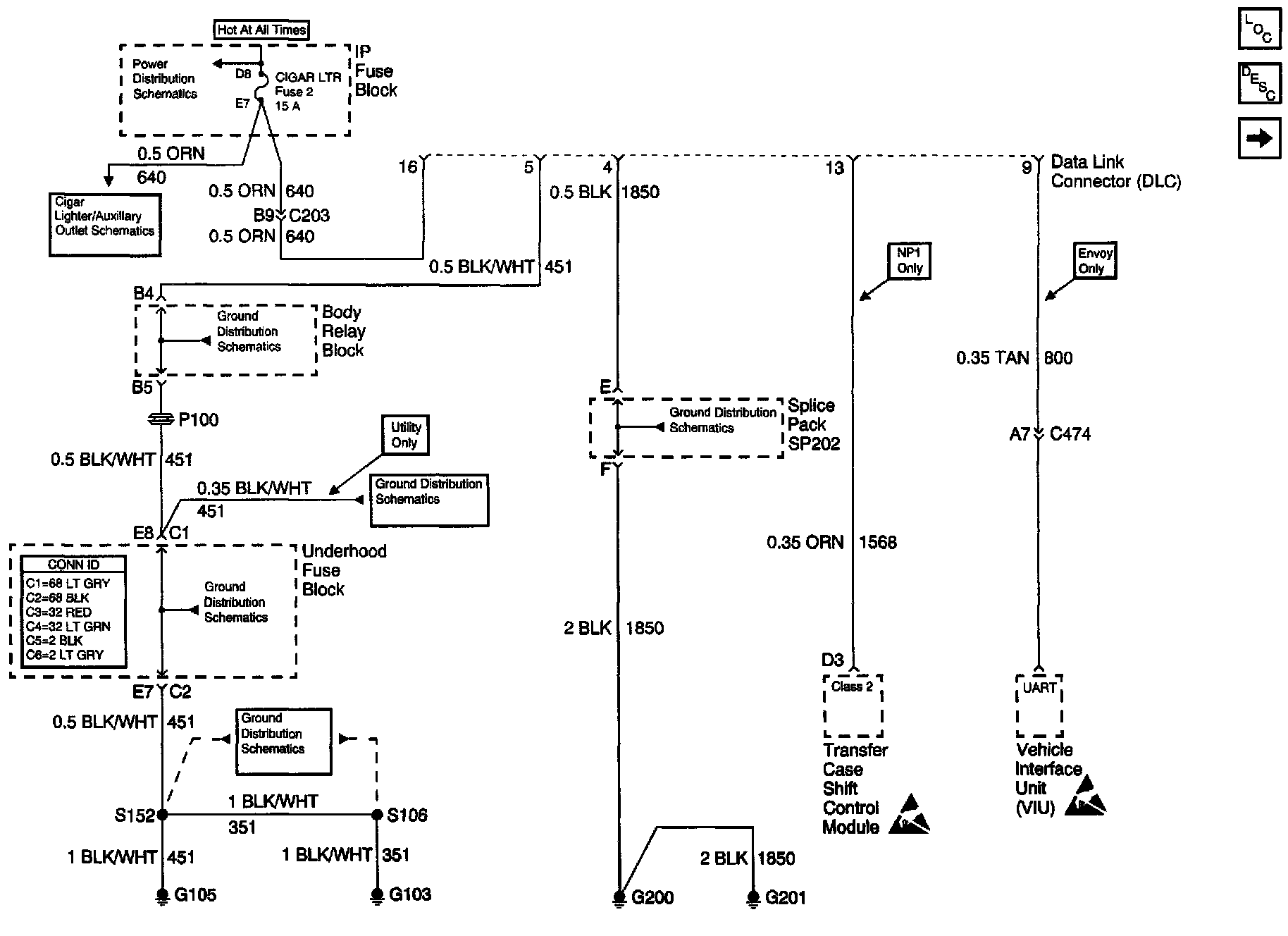

Data Link Connector (DLC) Schematics: Power, Ground, Transfer Case Shift Control Module And Vehicle Interface Unit (VIU):
