Home >> Oldsmobile >> 2000 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> CLSTR And 4WD Fuses

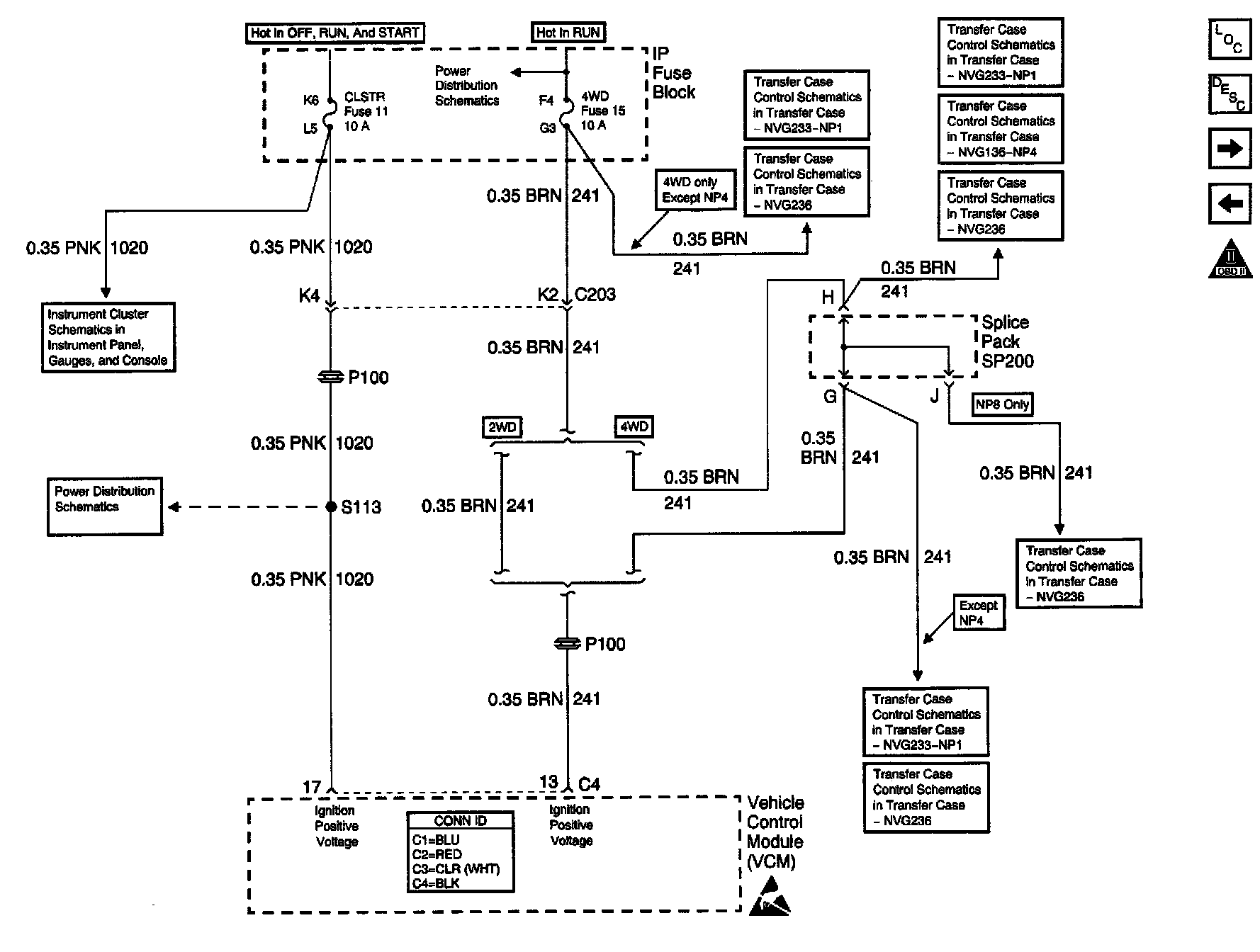

CLSTR And 4WD Fuses

Engine Control Schematics: CLSTR And 4WD Fuses:
