Home >> Oldsmobile >> 2000 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Diagrams

Control Module HVAC: Diagrams

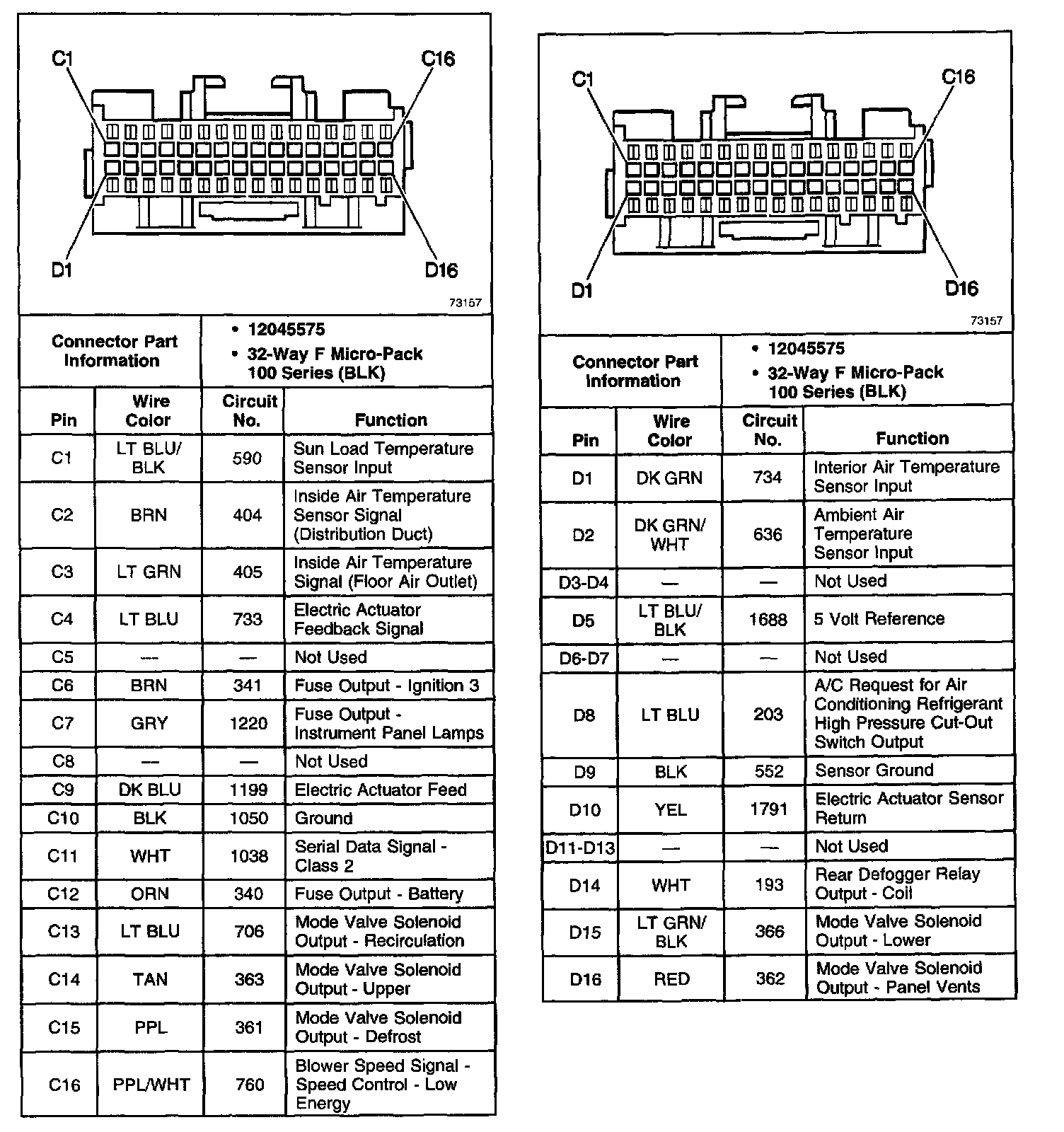

Electronic Climate Control (ECC) Module:
