Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Wiper and Washer Systems >> Wiper Control Module >> Diagrams >> Windshield Wiper/Washer Module C2

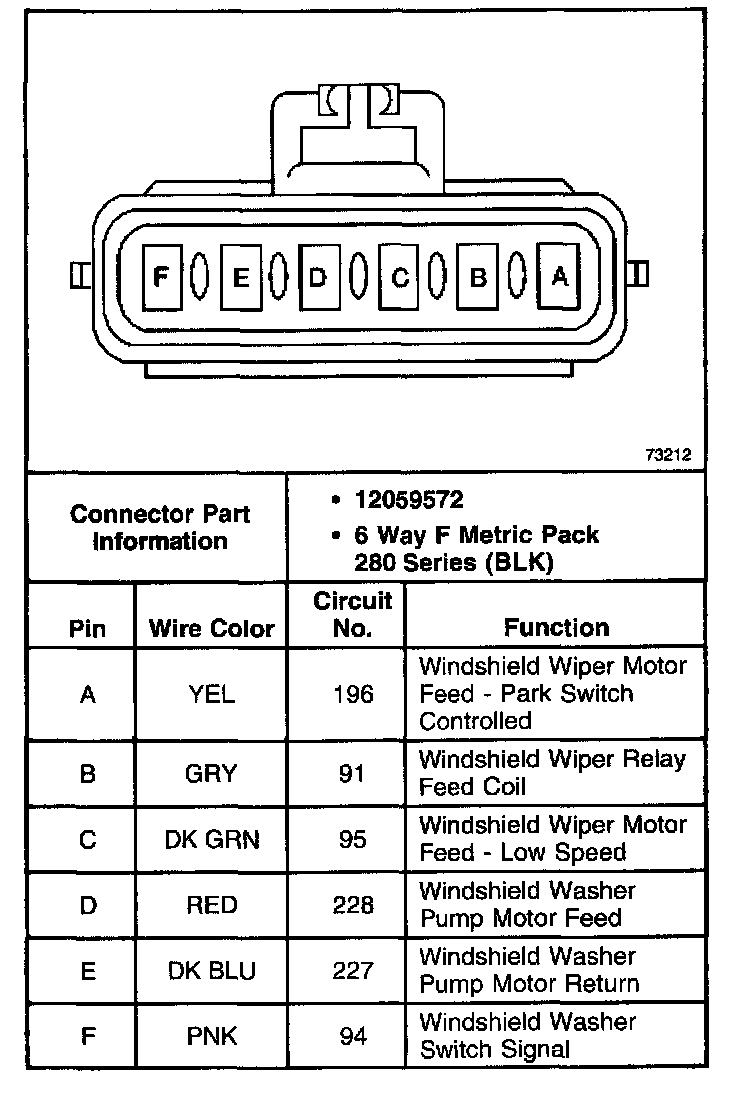

Windshield Wiper/Washer Module C2

Windshield Wiper/Washer Module C2:
