Power Door Lock Circuits
Power Door Lock Circuits

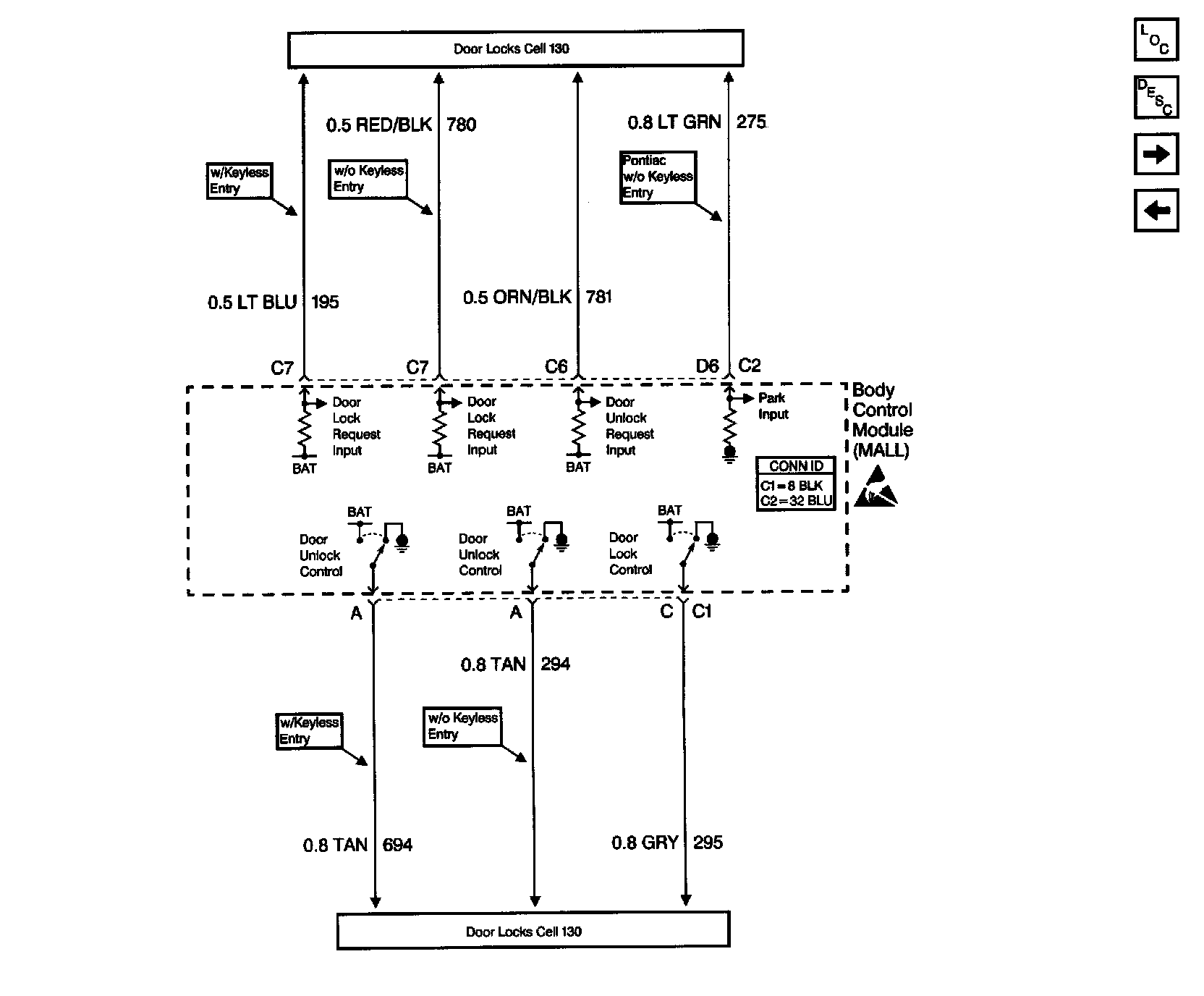

Body Control Module Schematics: Power Door Lock Circuits:
