Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

Oil Pressure Sensor: Locations

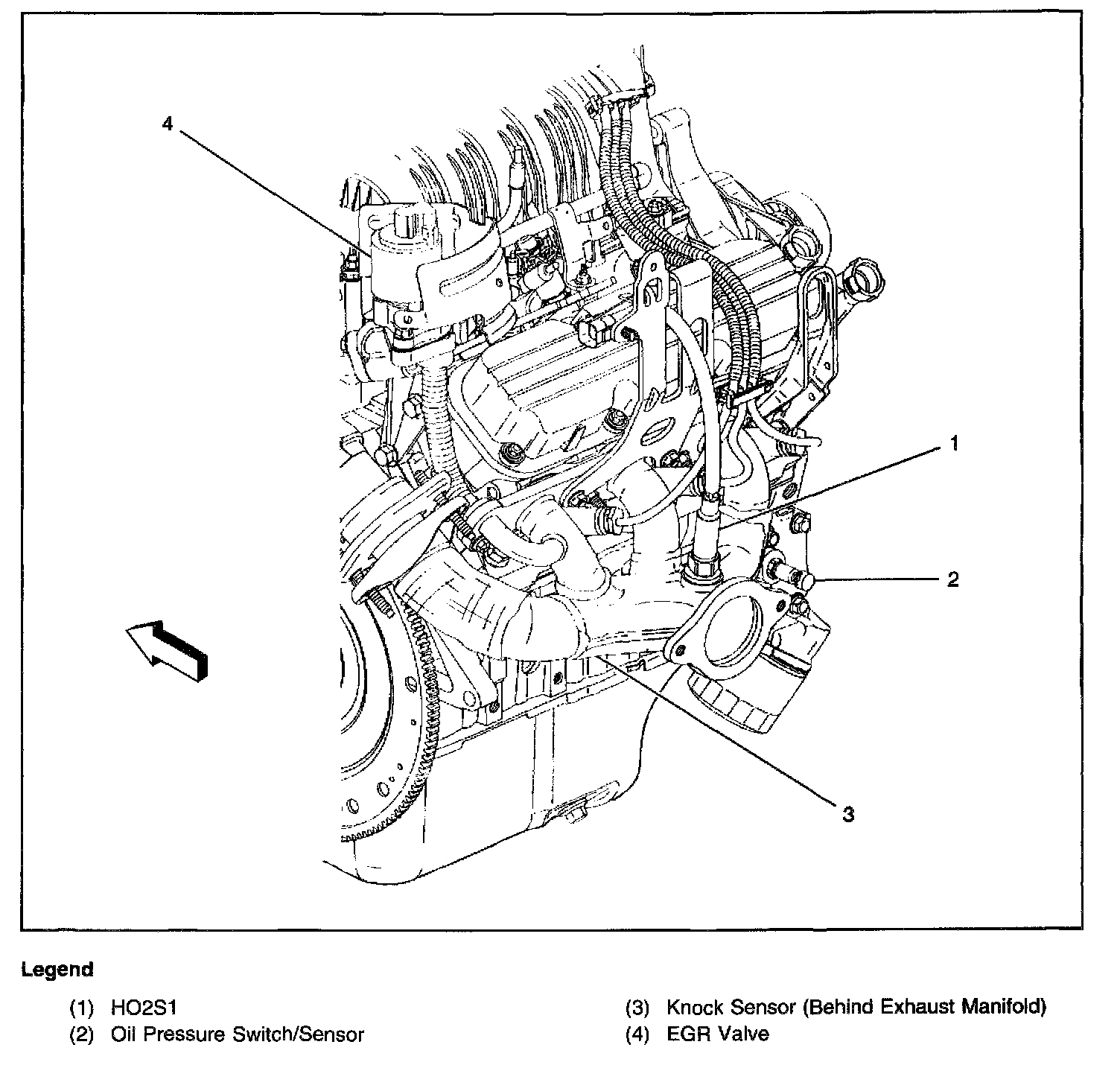

Left Hand Rear Of The Engine:

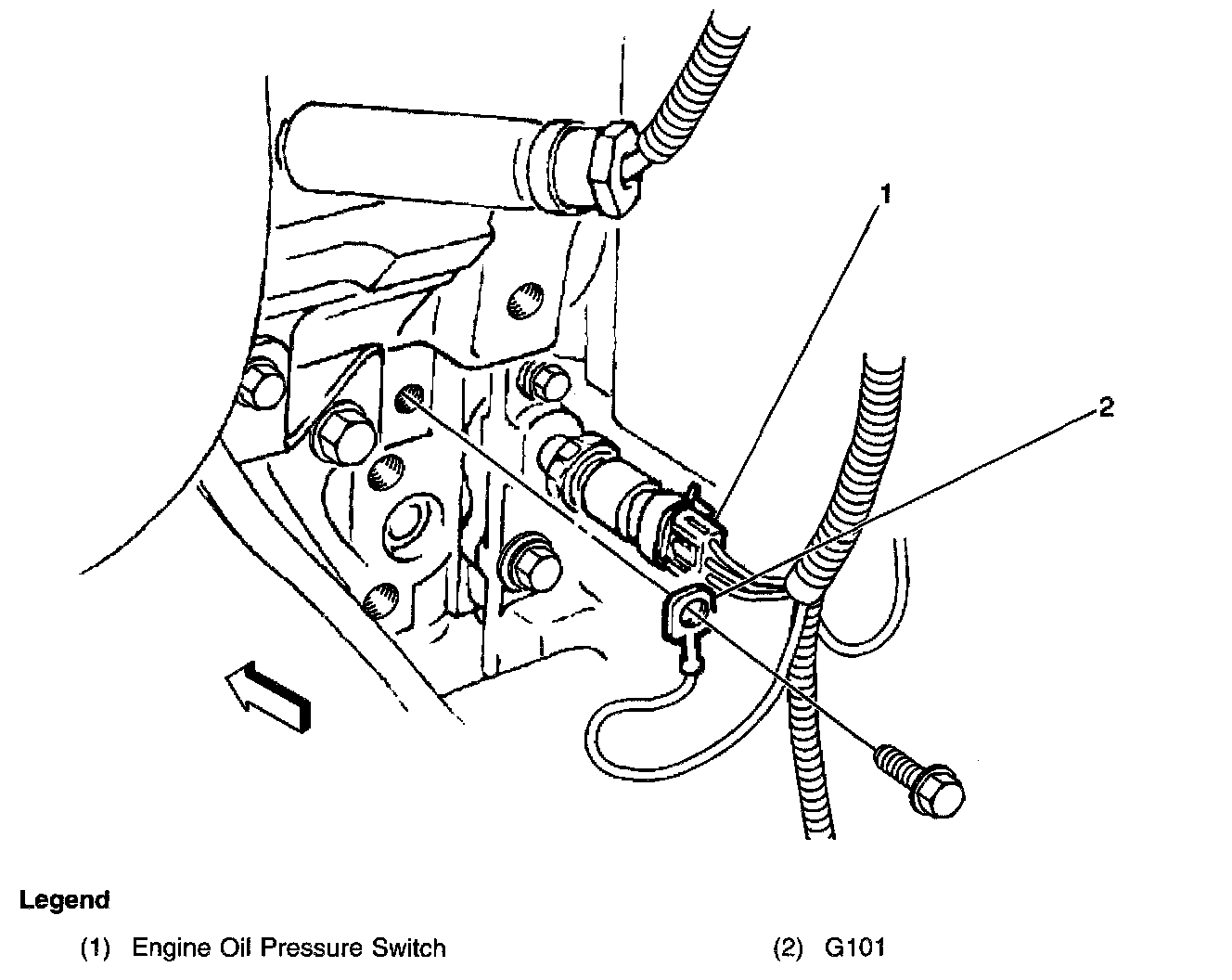

Rear View:





On the right rear corner of the engine, below the power steering pump
