Air Flow Meter/Sensor: Locations

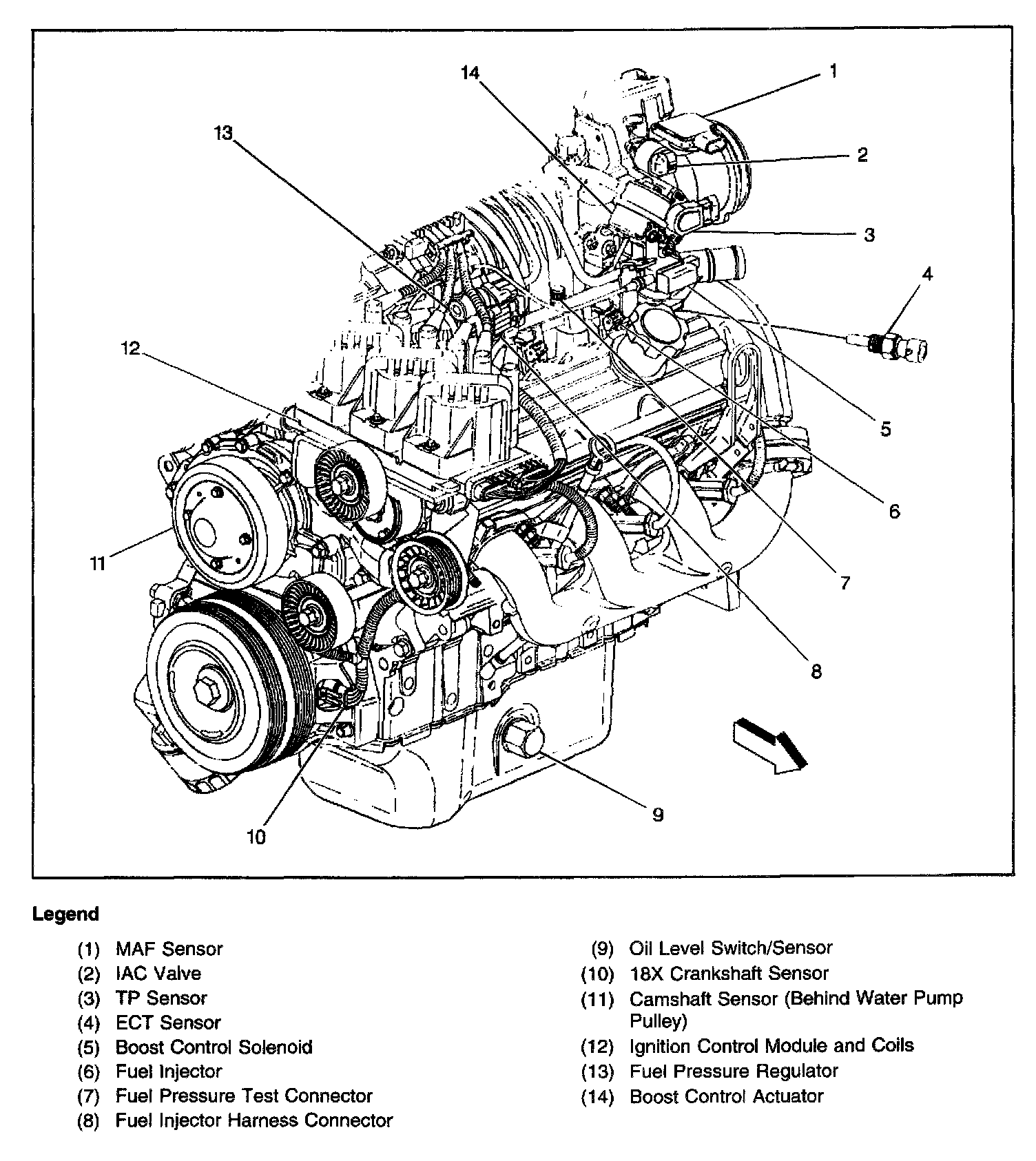

Front View:

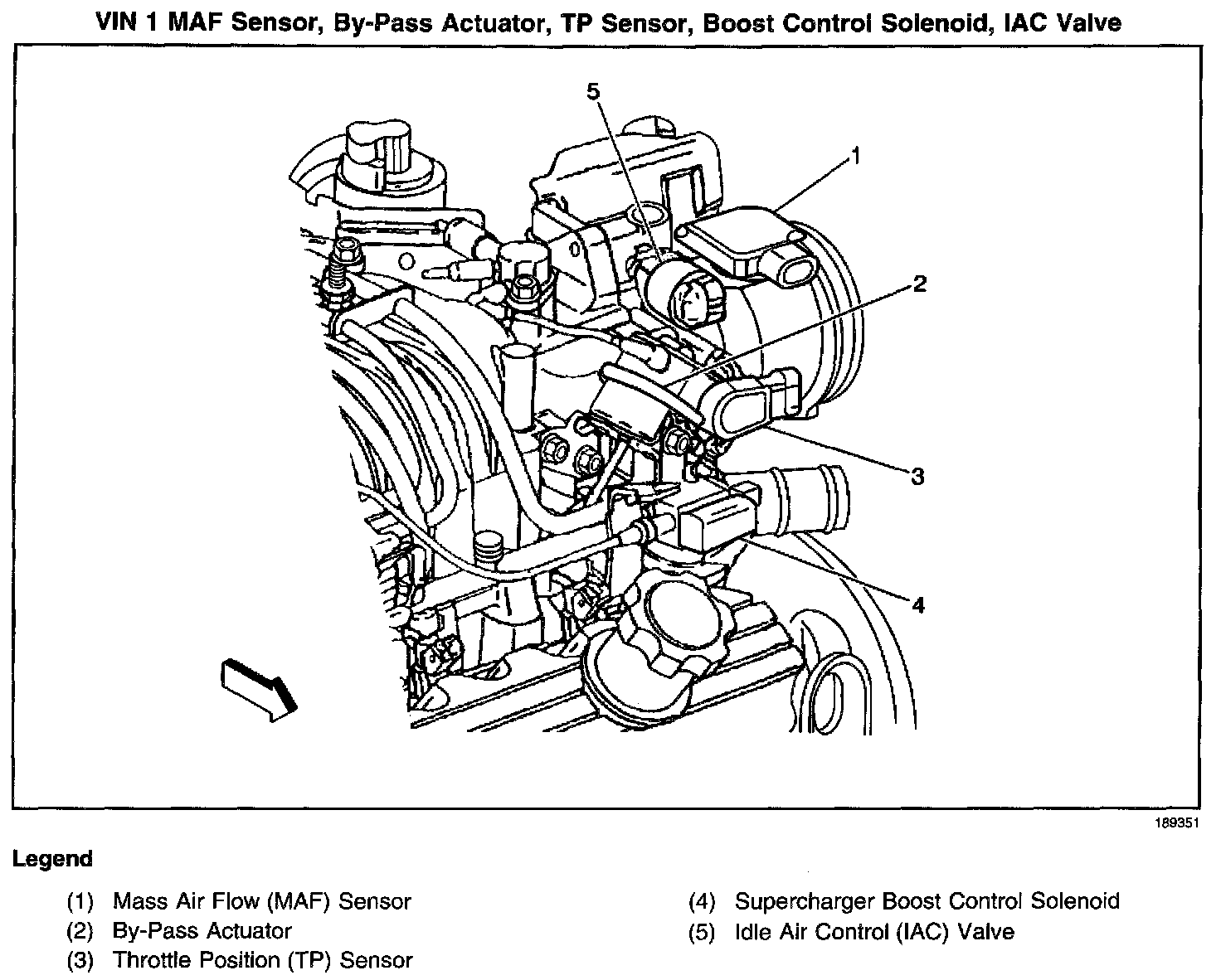

Locations View:




Center left hand of the engine, on the top of the throttle body
