Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Diagrams >> Lamp Control Module (LCM) C2

Lamp Control Module (LCM) C2

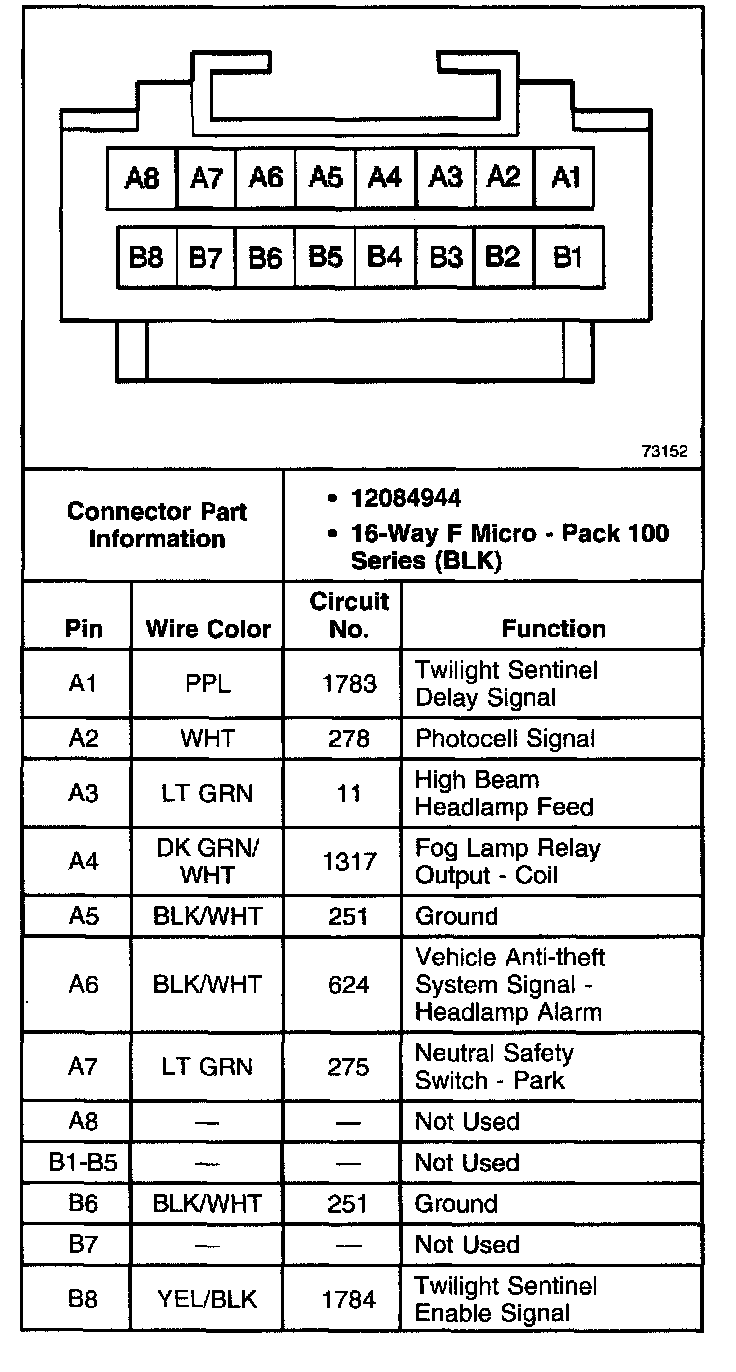

Lamp Control Module C2 (Oldsmobile And Pontiac):
