Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Auto Door Lock Inputs, RFA Link

Auto Door Lock Inputs, RFA Link

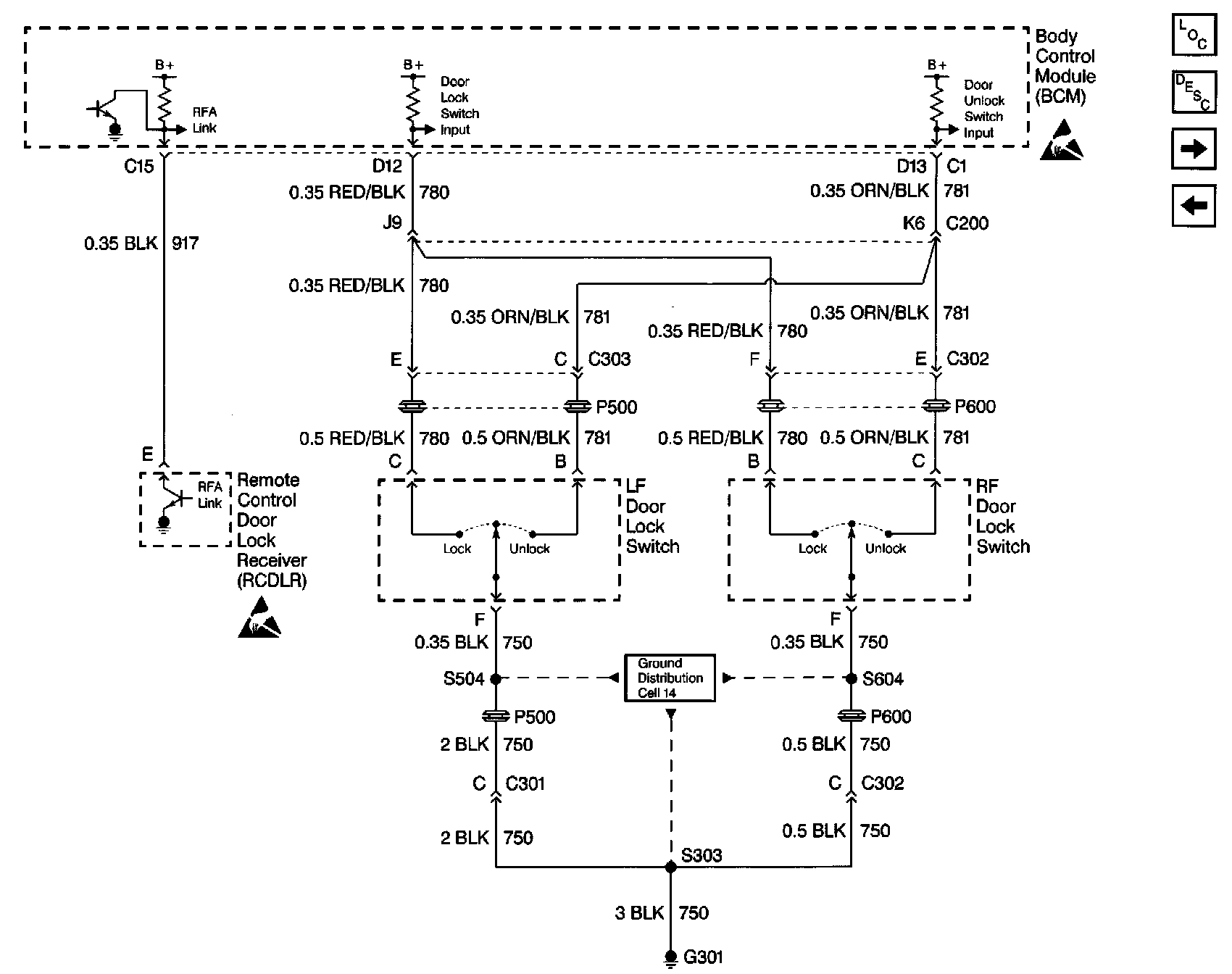

Body Control Module Schematics: Auto Door Lock Inputs, RFA Link:
