Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> I/P Fuse Block

I/P Fuse Block

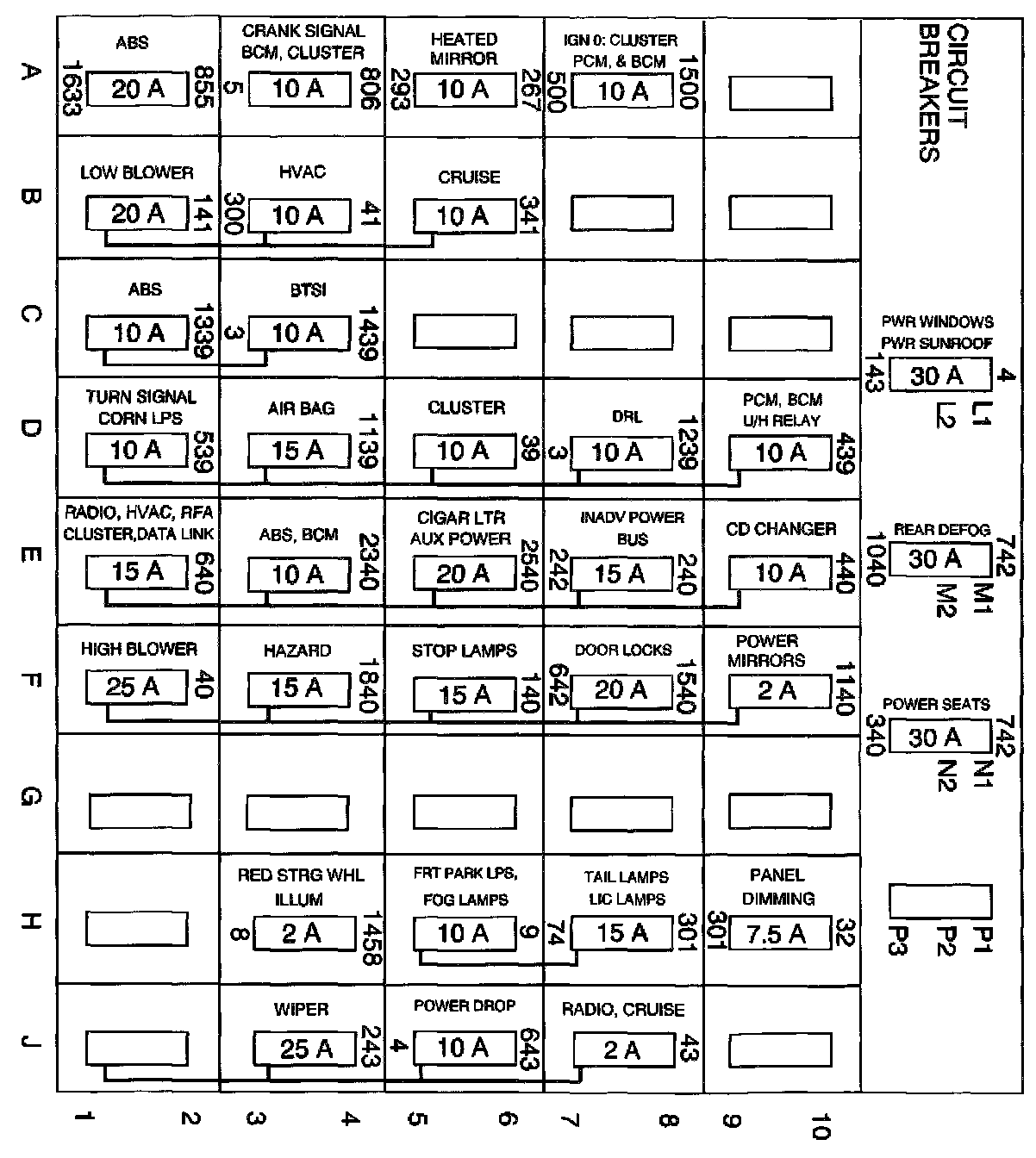

Fuse Block Details Schematics (Instrument Panel Fuse Block):
