Engine

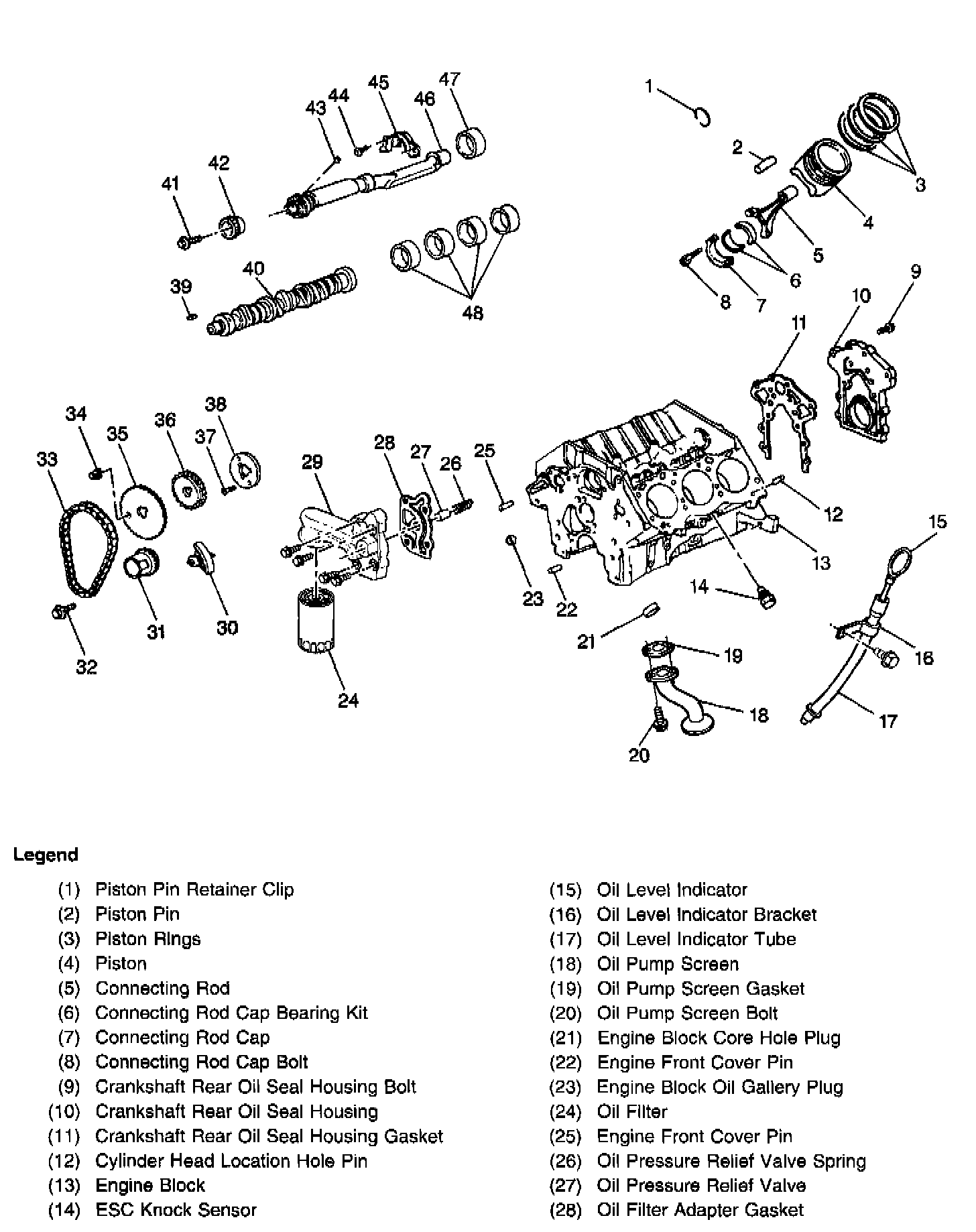

ENGINE BLOCK AND COMPONENTS

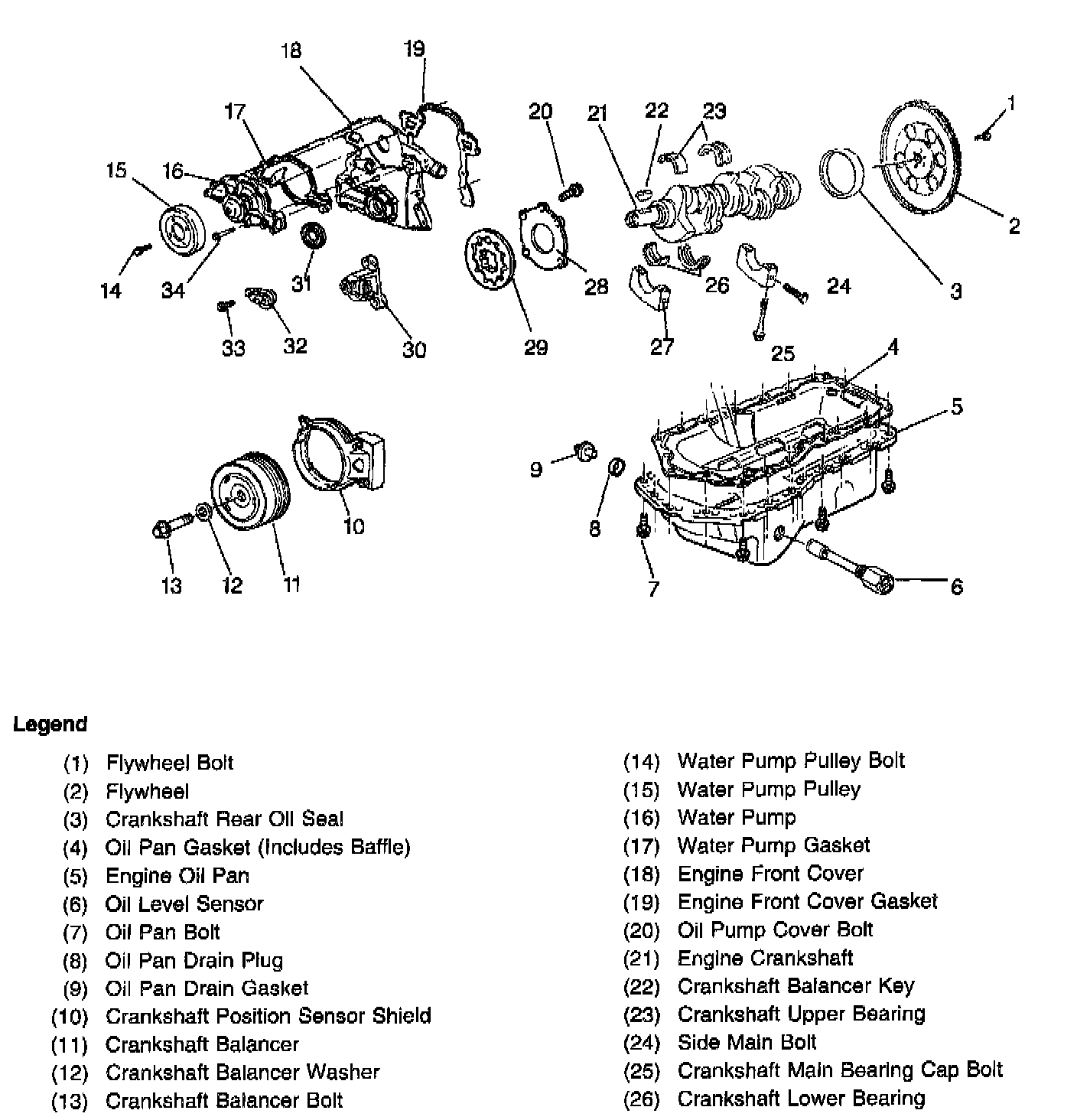

CRANKSHAFT AND COMPONENTS

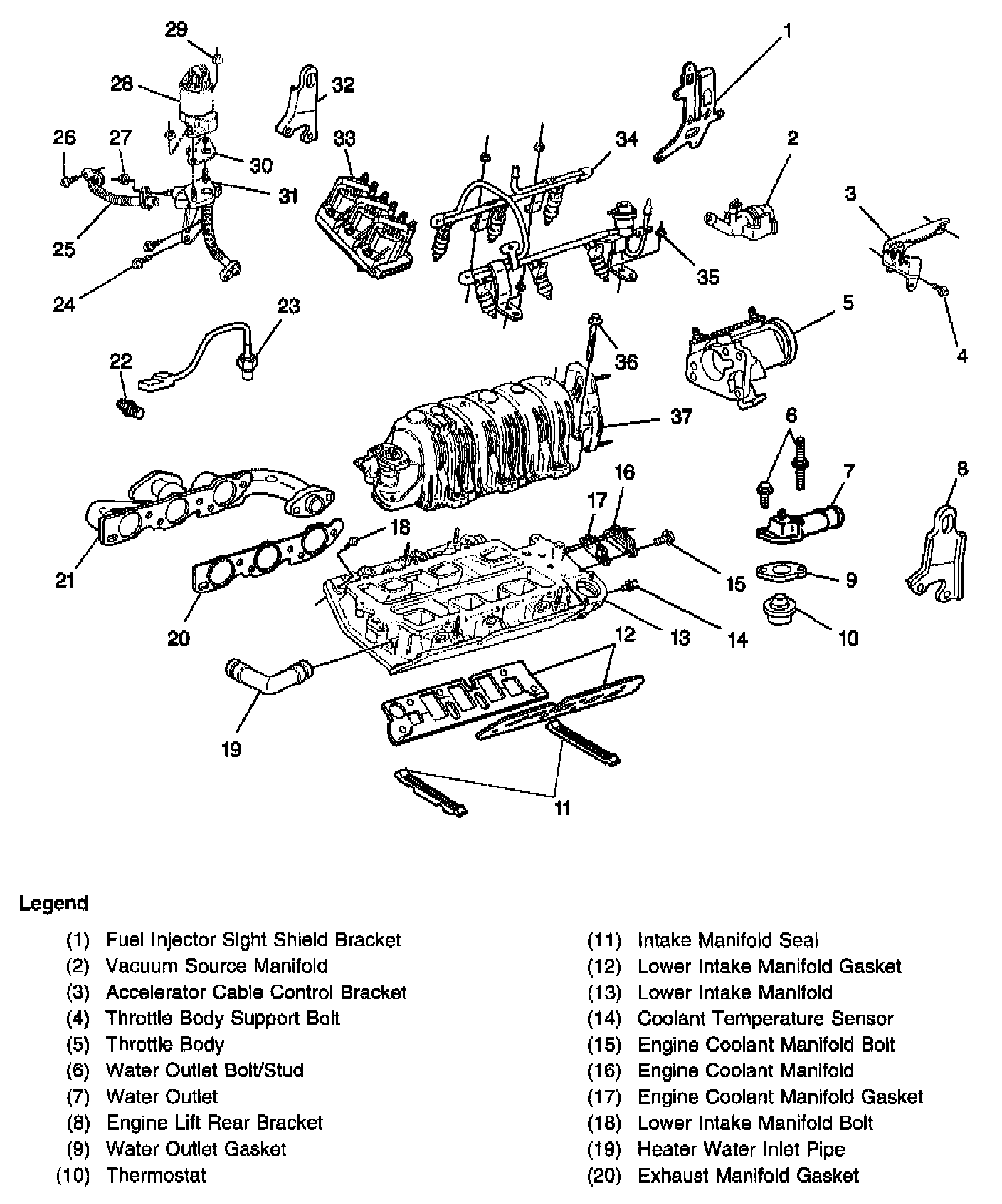

INTAKE MANIFOLD AND COMPONENTS

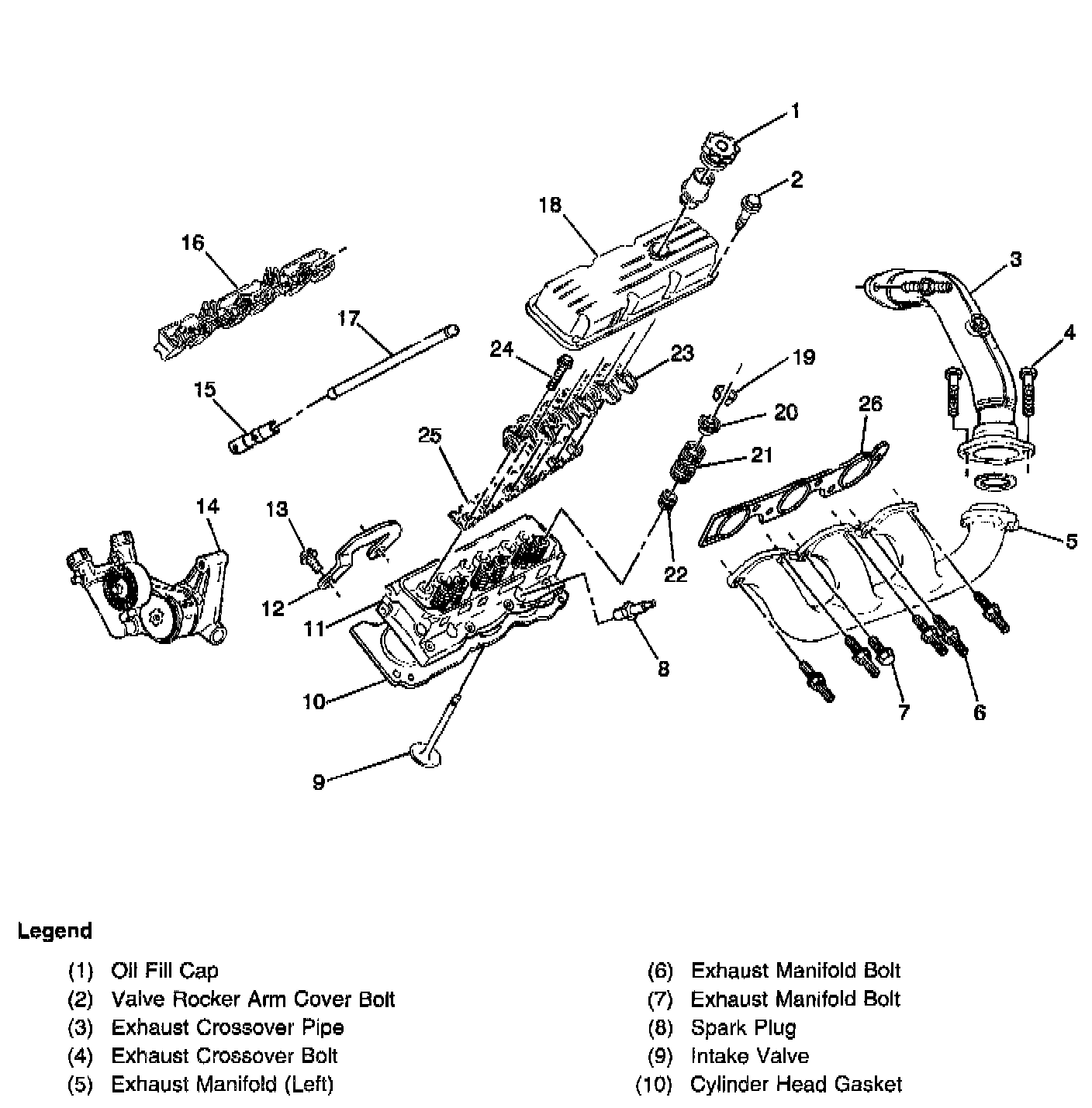

CYLINDER HEAD AND COMPONENTS
