Window Panel, Rear

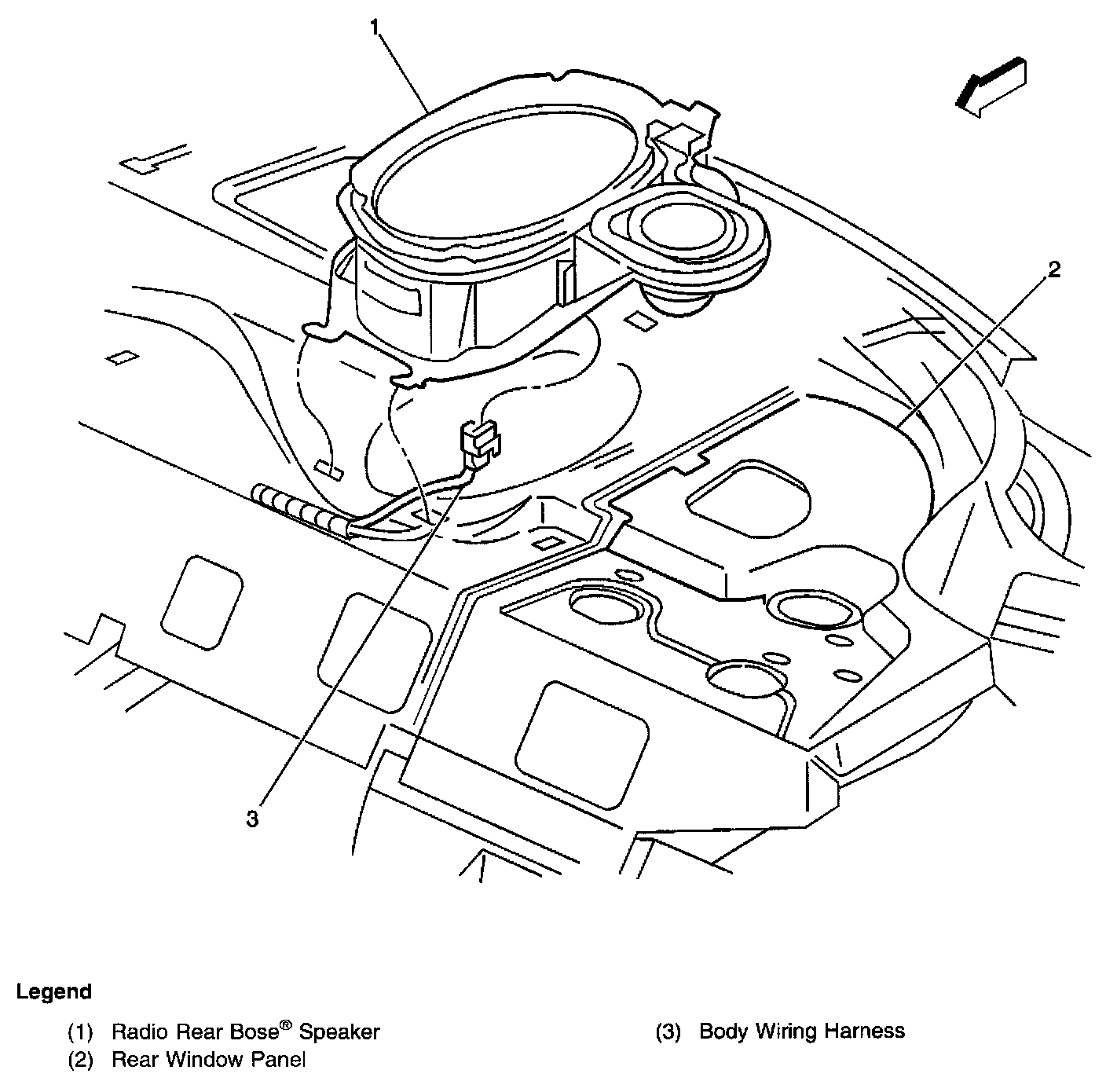

Bose (R) Speaker (w/ RPO U85 Only) - LH Side Of Rear Window Panel (RH Side Similar):

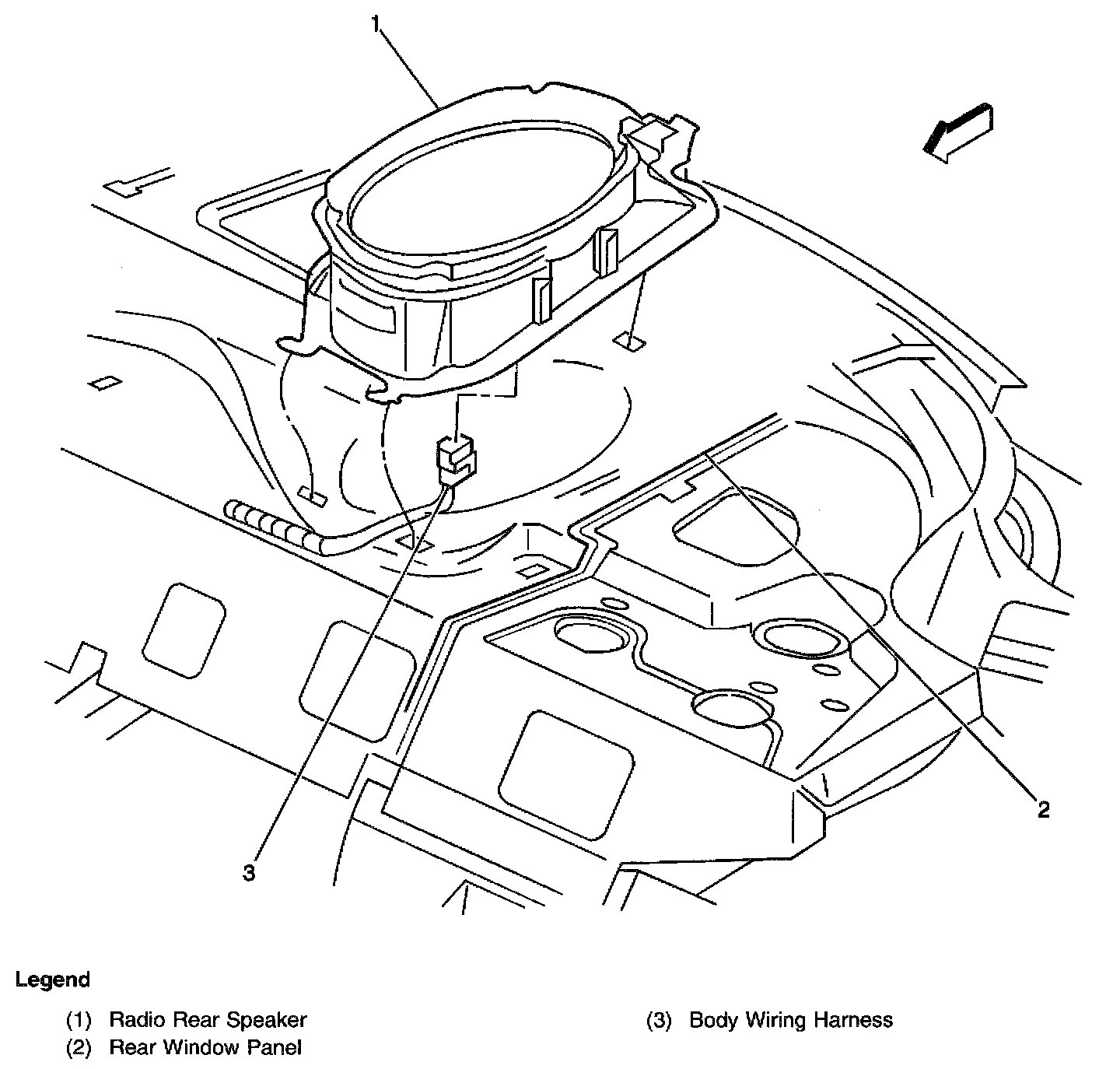

Speaker (w/o RPO U85) - LH Side Of Rear Window Panel (RH Side Similar):

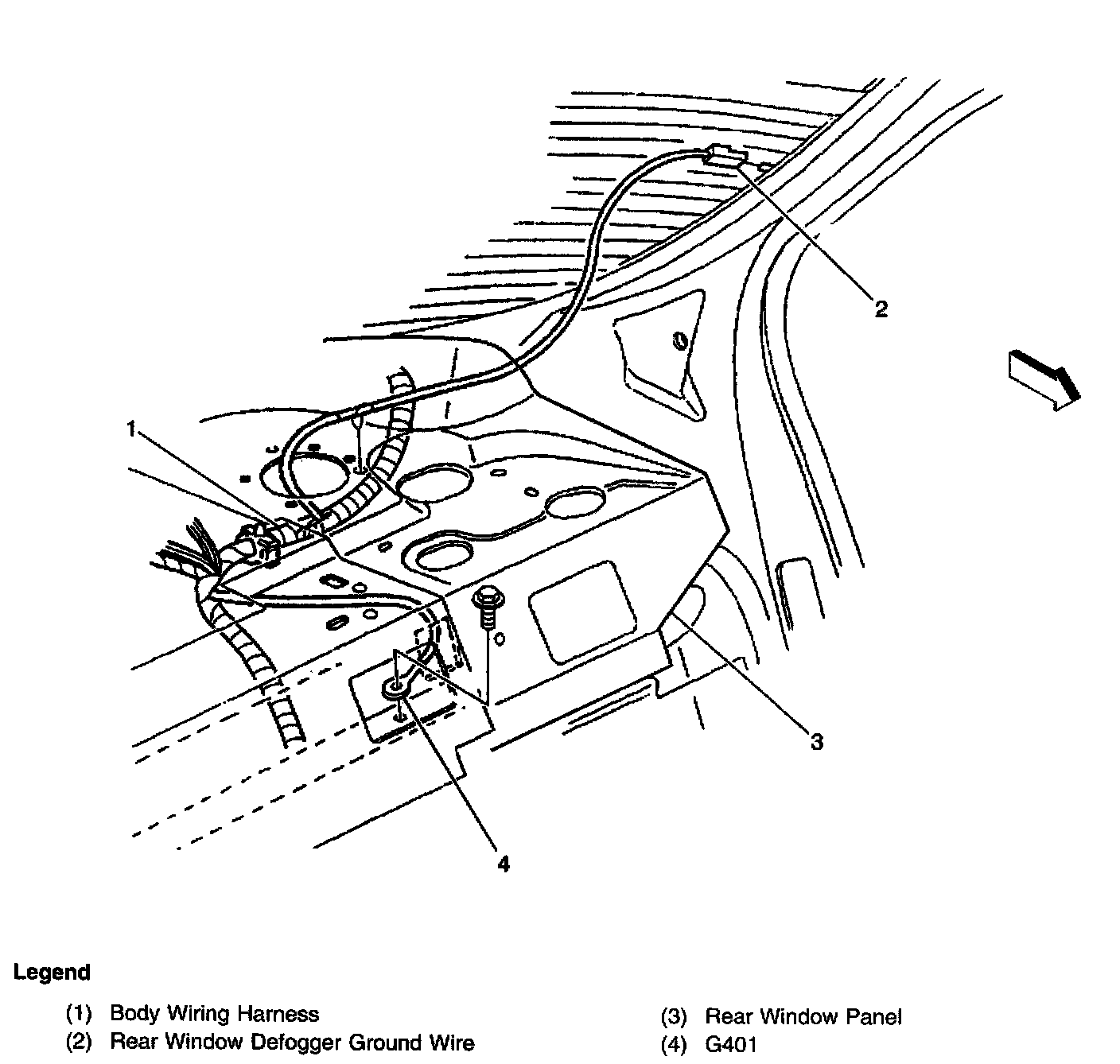

G401 - LH Side Of Rear Window Panel:
