Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Battery

Battery

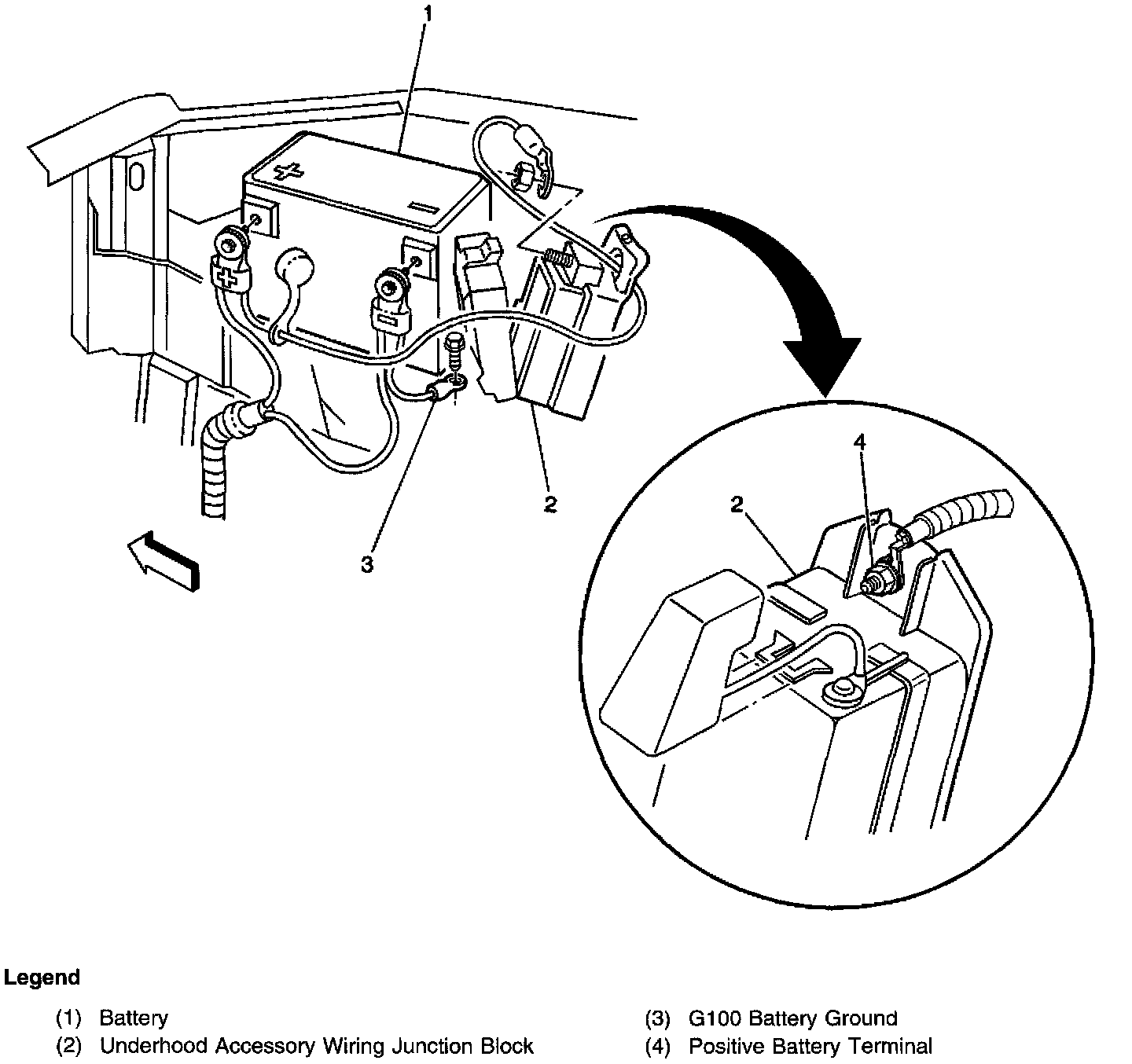

RH Side Of Engine Compartment:





Right side of the engine compartment
