Home >> Oldsmobile >> 1999 >> Cutlass V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper Intake Manifold and Components

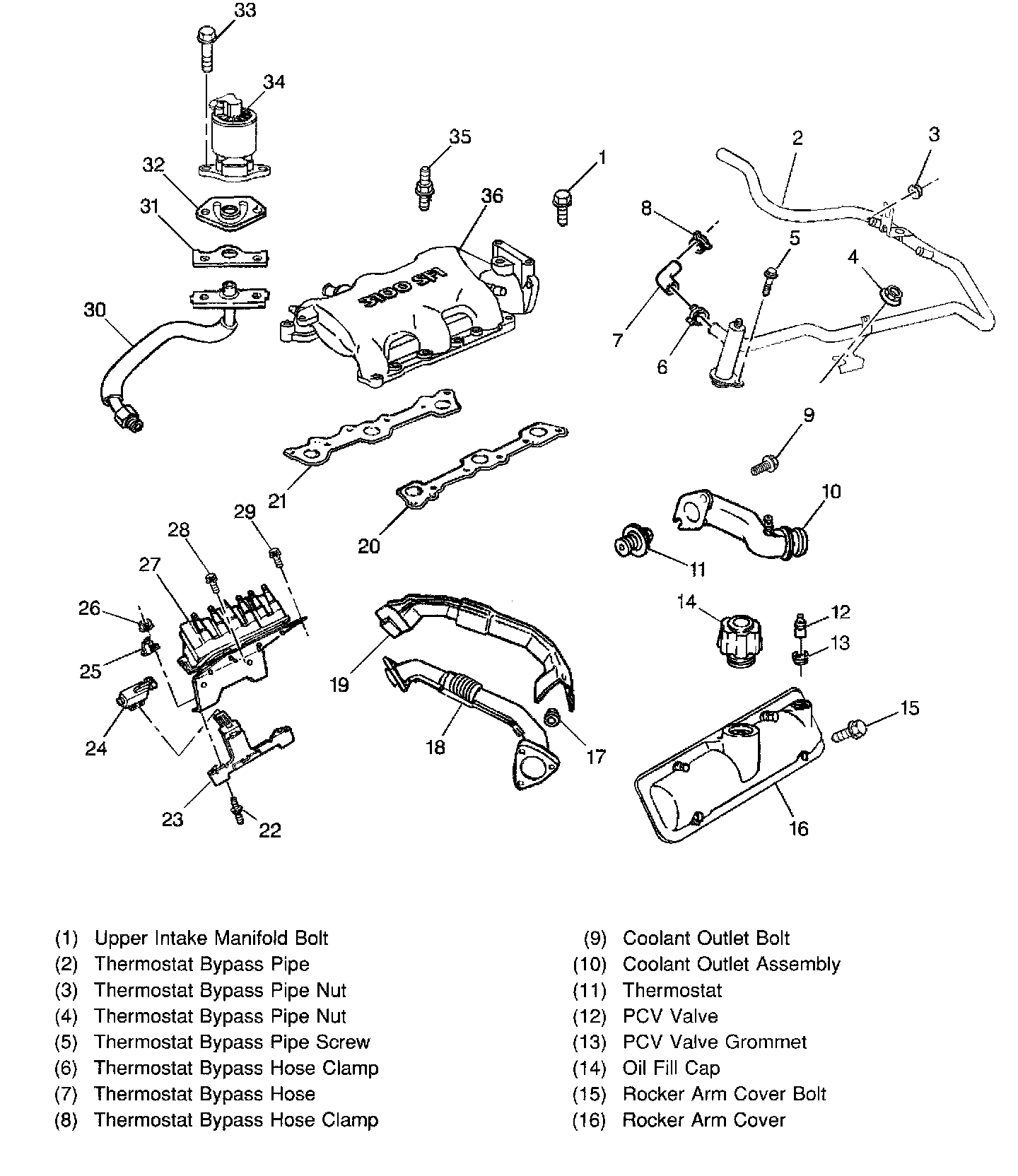

Upper Intake Manifold and Components

Part 1 Of 2:

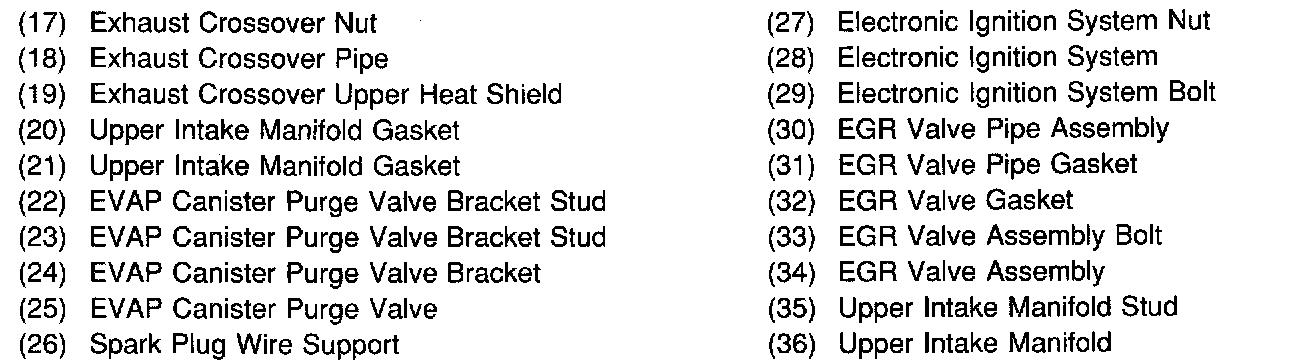

Part 2 Of 2:
