Home >> Oldsmobile >> 1999 >> Cutlass V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

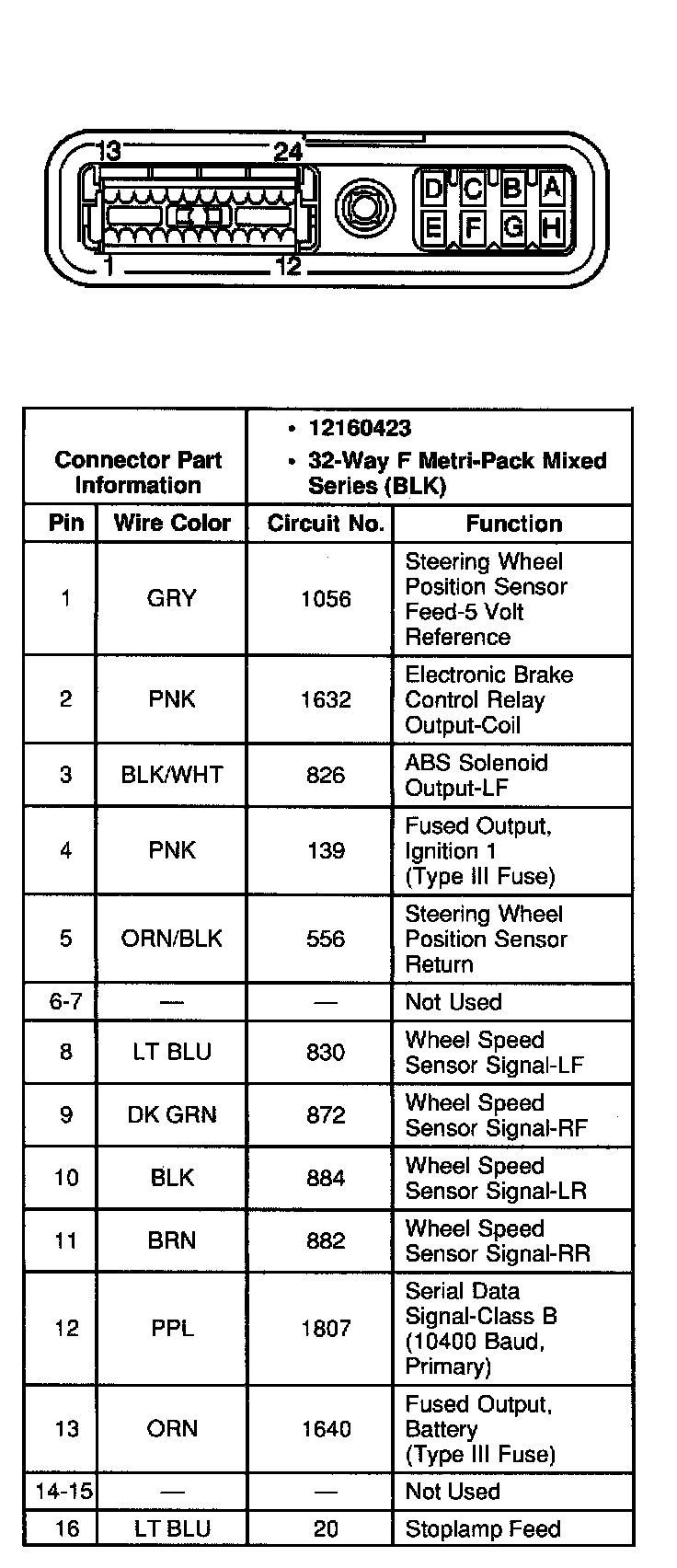

Part 1 Of 2:

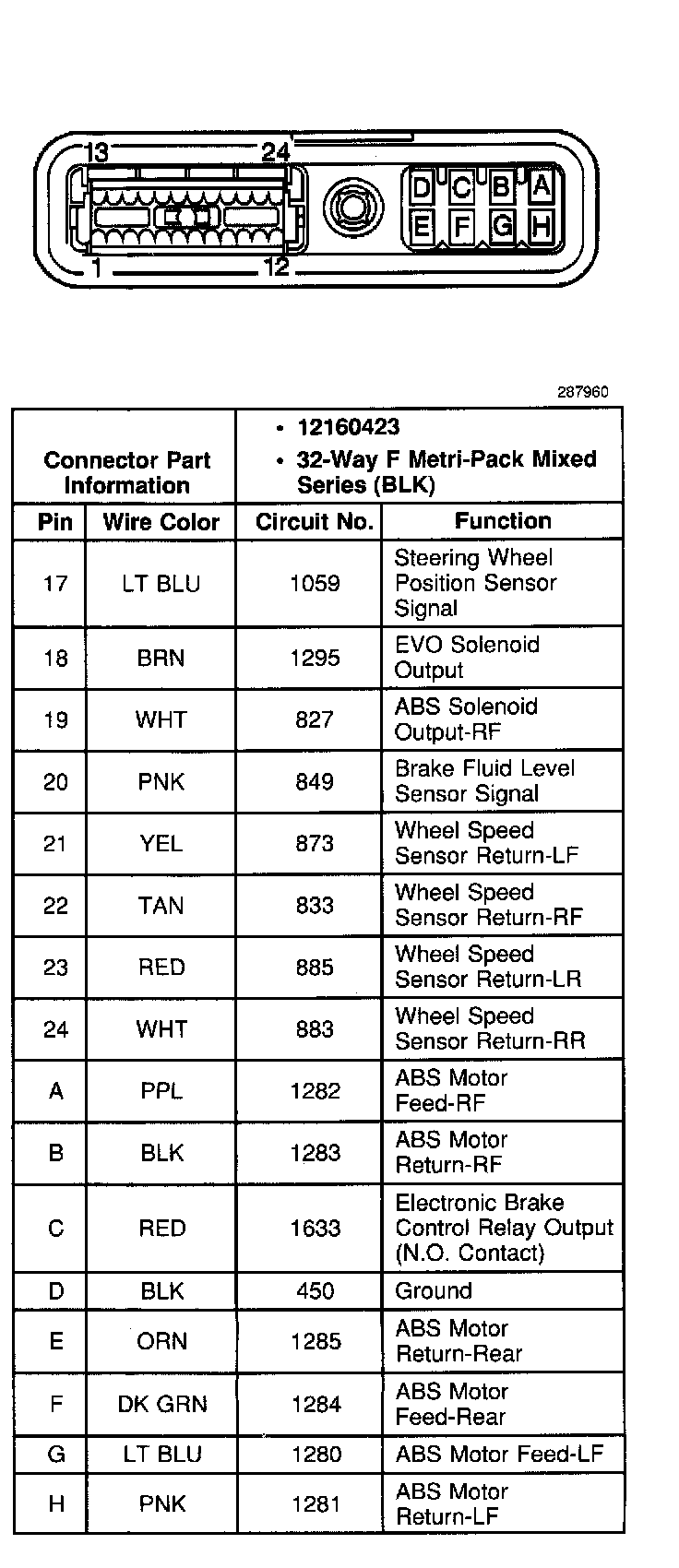

Part 2 Of 2:
