Automatic Transmission Preference Switch and S390
Automatic Transmission Preference Switch and S390

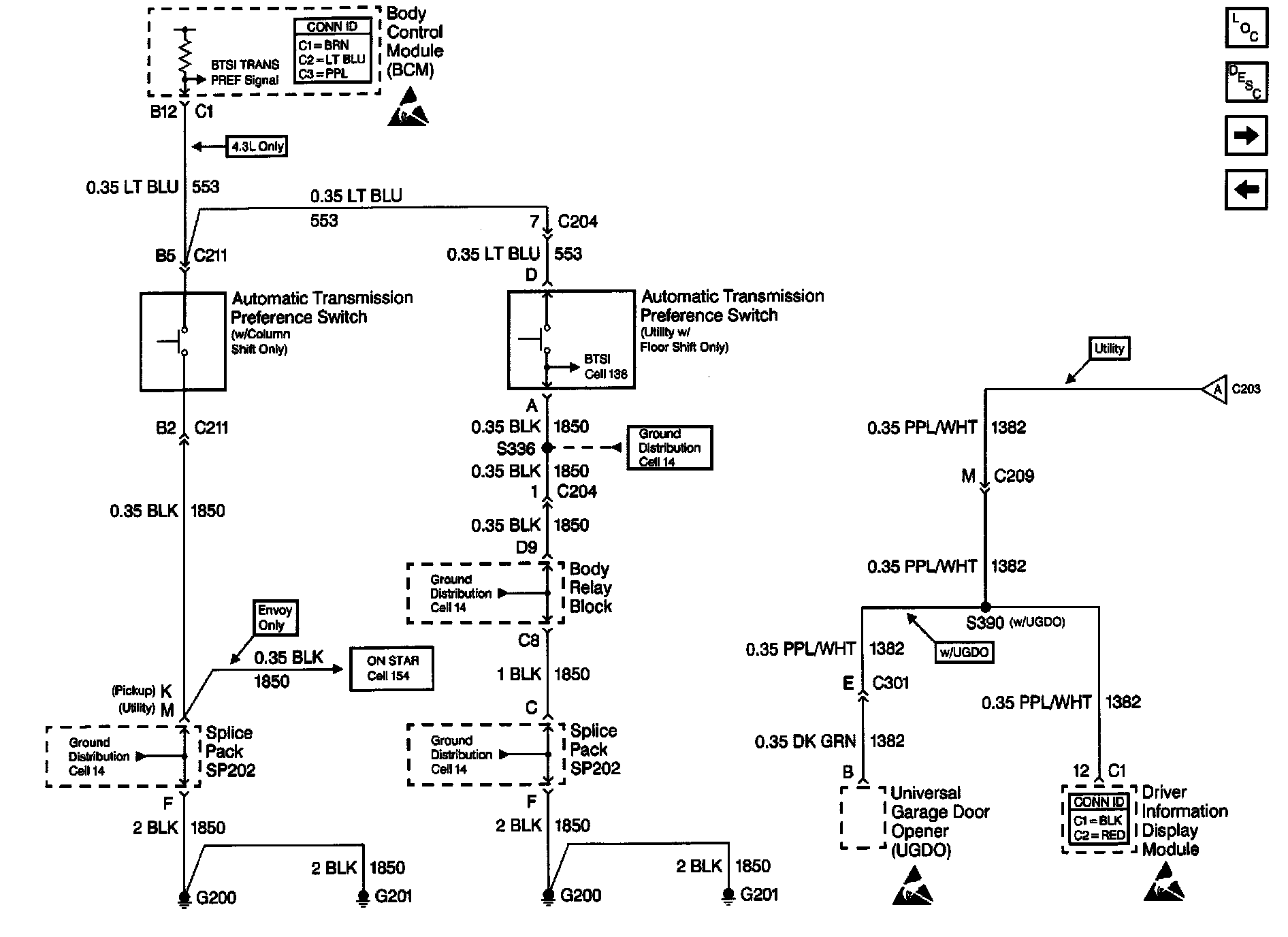

Body Control Module Schematics: Automatic Transmission Preference Switch And S390:
