Rear Release Inoperative With Transmitter

NOTE: For testing procedure, see Fig 1.

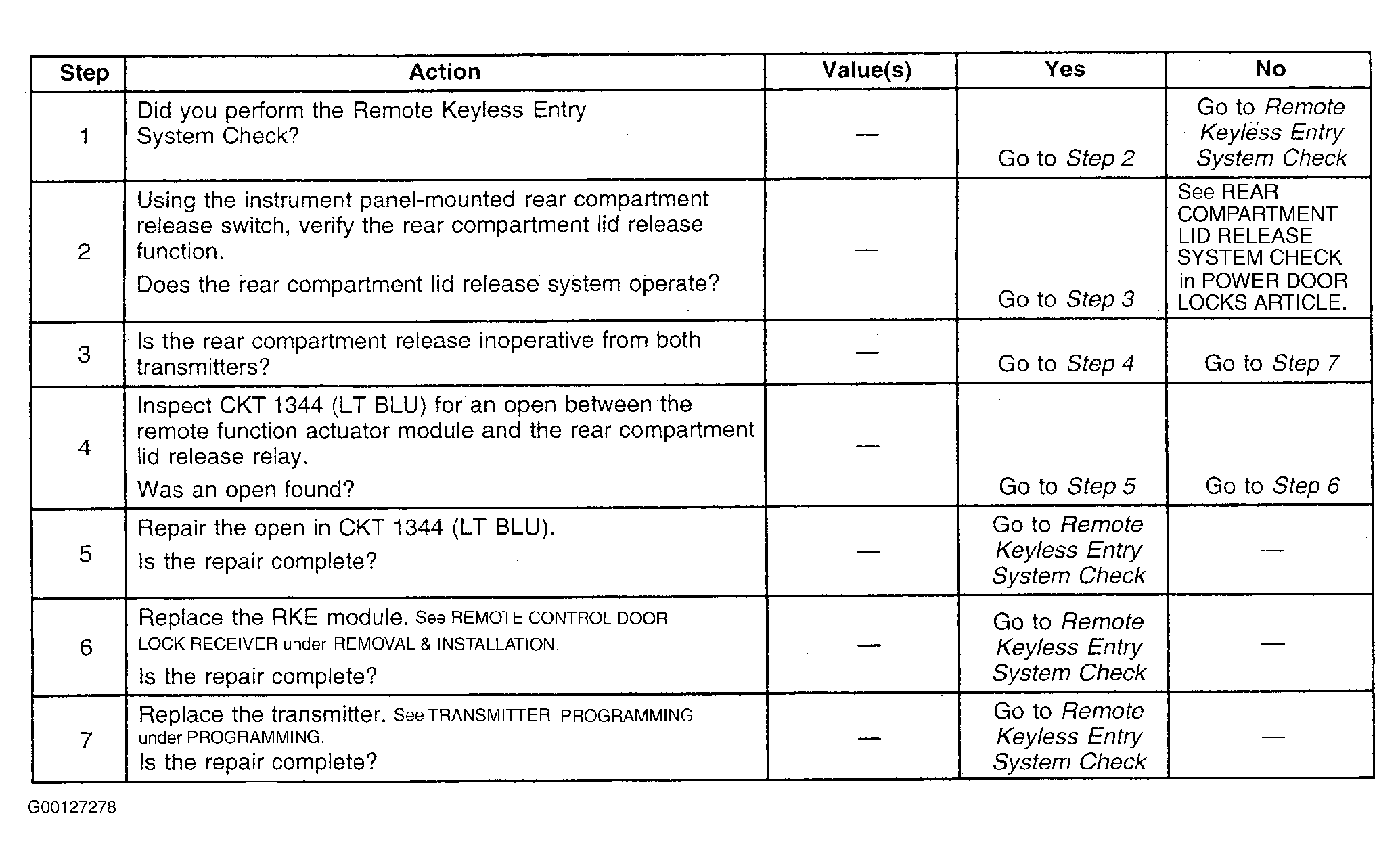

Fig 1: Rear Release Inoperative With Transmitter

G00127278

Courtesy of GENERAL MOTORS CORP.
