Component Location
REMOTE KEYLESS ENTRY COMPONENT LOCATION
| Component | Location |
|---|---|

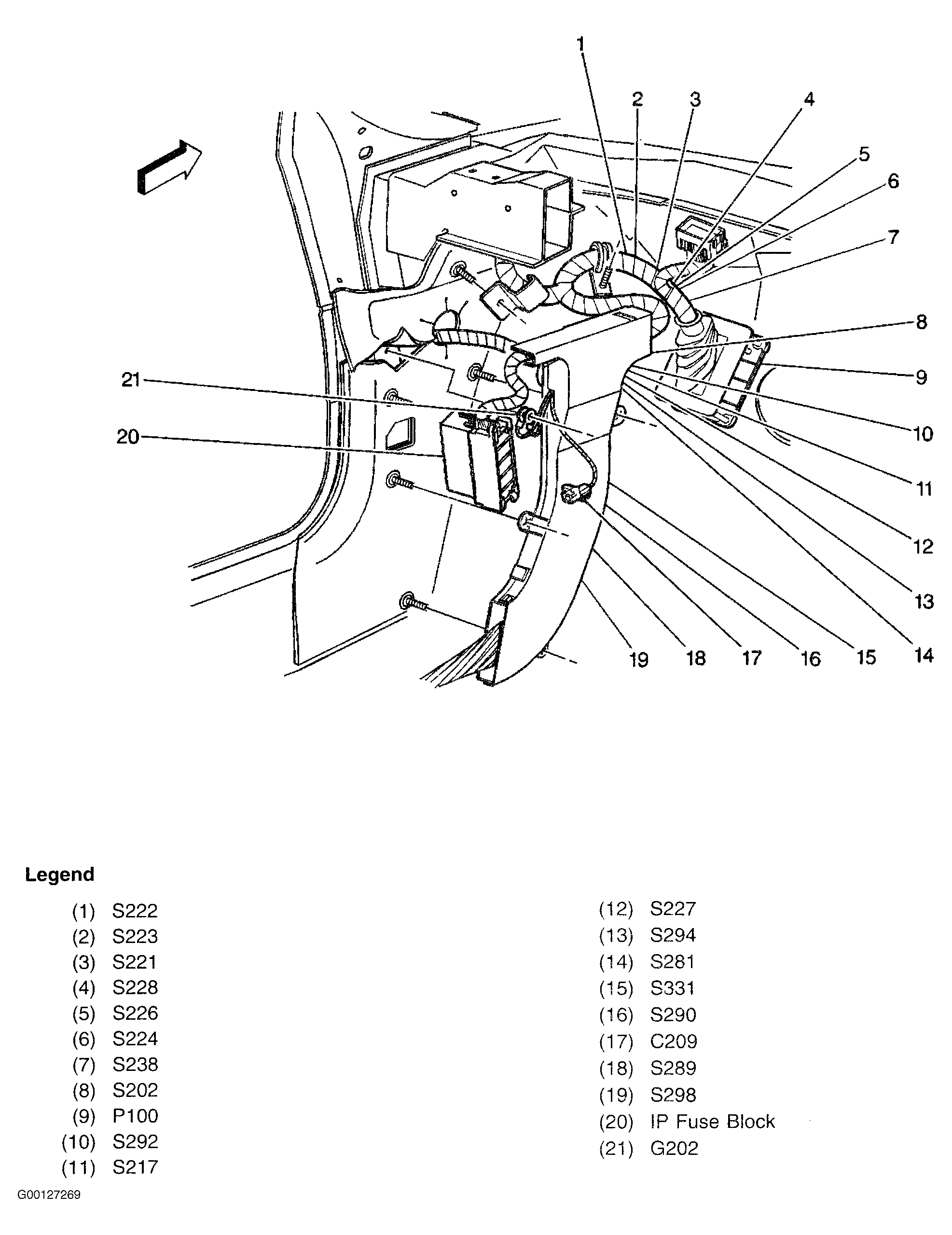

| Instrument Panel Fuse Block | In The Left Side Of The Passenger Compartment, Attached To The Door Hinge Pillar. See Fig 3. |
| Park/Neutral Position (PNP) Switch (Buick) | Left Hand Of The Transaxle, Below The Exhaust Gas Recirculation Valve. See Fig 1. |
| Park/Neutral Position (PNP) Switch (Oldsmobile) | Left Hand Of The Transaxle, Below The Exhaust Gas Recirculation Valve. See Fig 1. |

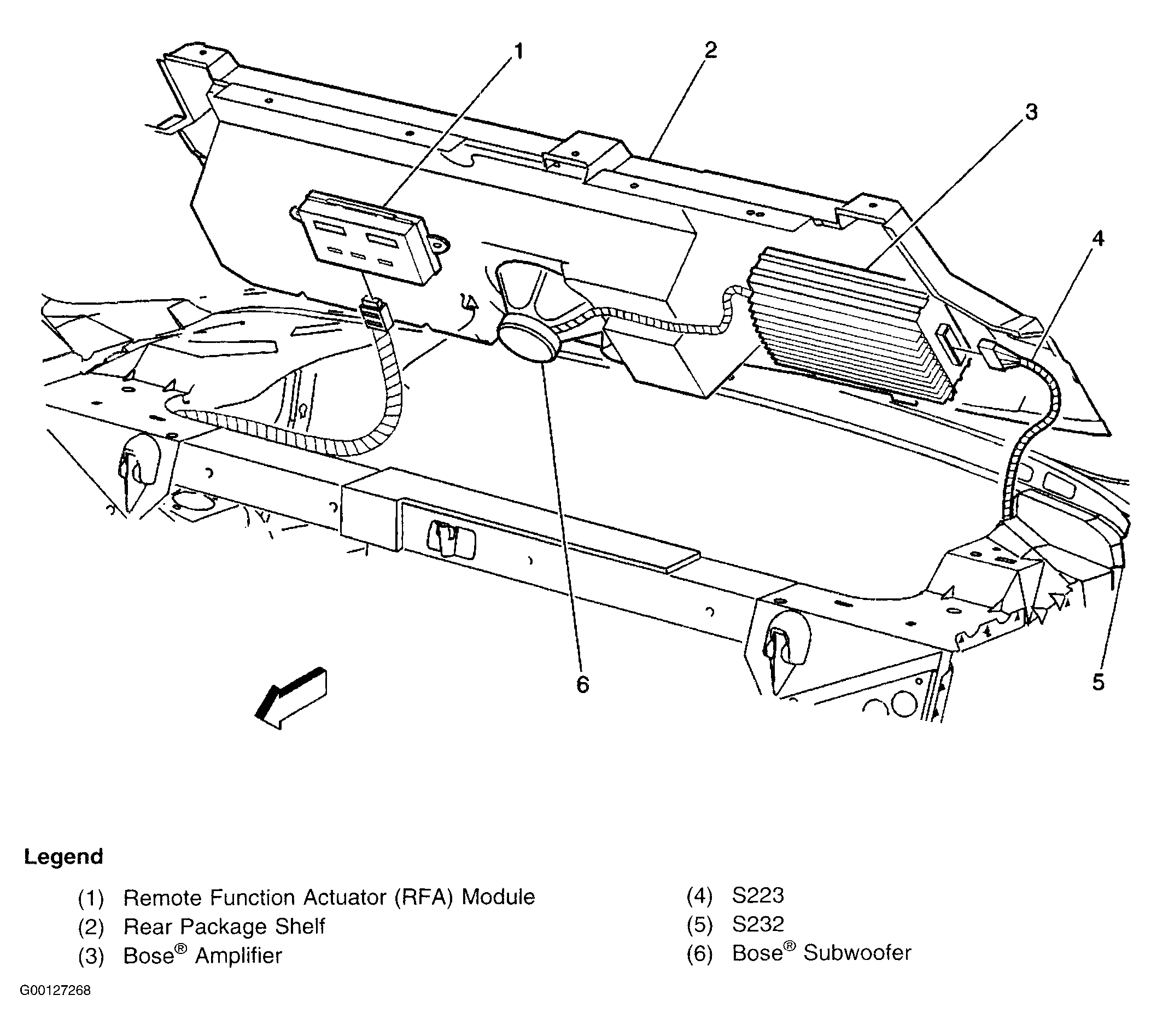

| Remote Function Actuator (RFA) Module | Right Hand Rear Of The Passenger Compartment, Under The Rear Shelf Trim Panel. See Fig 4. |

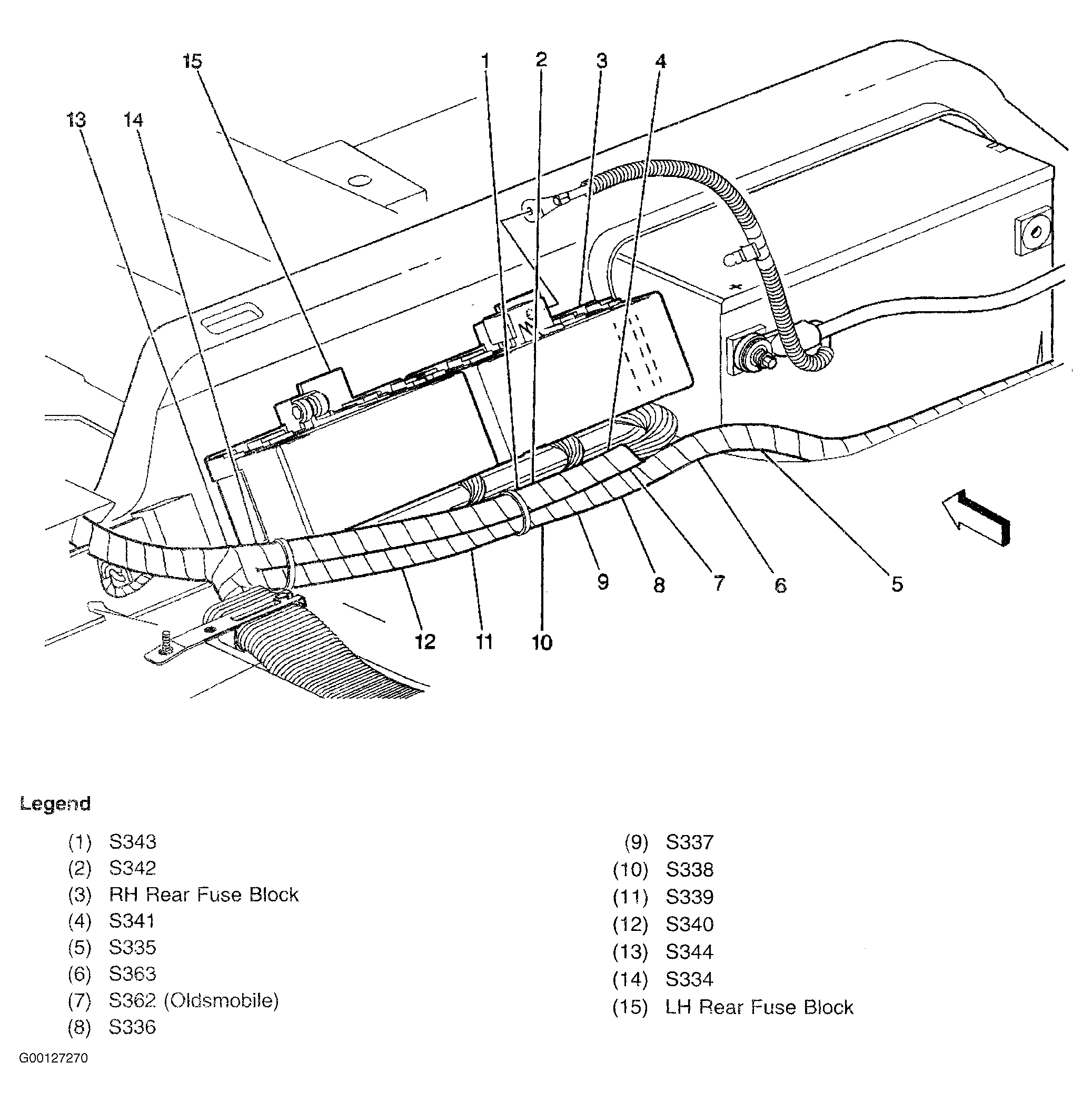

| Right Rear Fuse Block | Right Hand Rear Of The Passenger Compartment, Under The Rear Seat Cushion. See Fig 2. |
| C114 (7 Cavities, Oldsmobile) | Body Harness To The Park/Neutral Switch Harness, Left Hand Center Of The Engine Compartment |
| G302 | Left Hand Rear Of The Passenger Compartment, Under The Rear Seat Cushion |
| P100 | Left Hand Rear Of The Engine Compartment, Near The Base Of The Strut Tower. See Fig 3. |

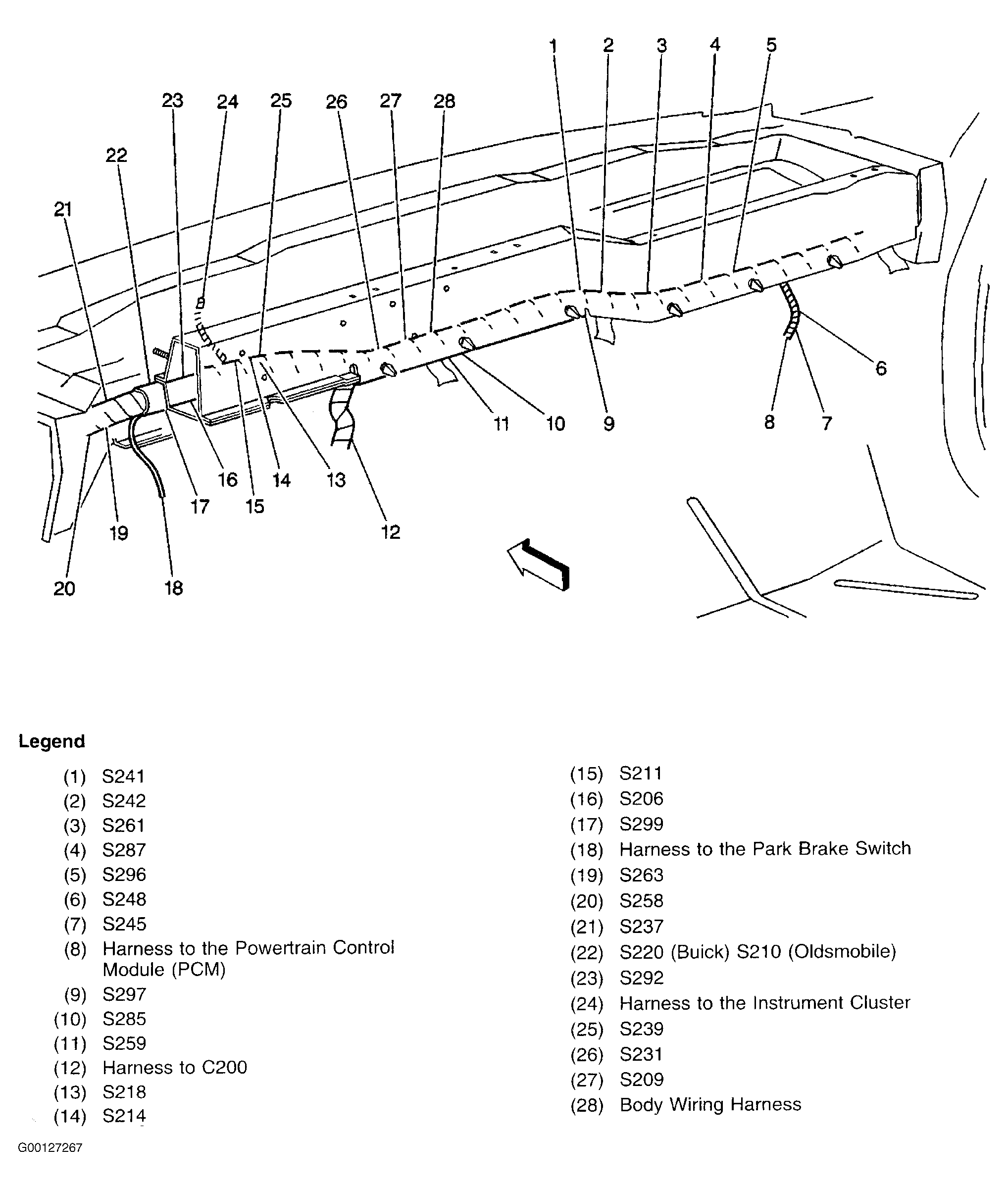

| S211 | In The Body Harness 14" (35.5 cm) From The Turn Signal Flasher. See Fig 5. |
| S227 | In The Body Harness, Approx 18.9" (48 cm) From The P100 Pass-Through. See Fig 3. |
| S258 | In The Body Harness, Approx 13.8" (35 cm) From The Park Brake Switch. See Fig 5. |
| S292 | In The Body Harness, Approx 14.3" (36.5 cm) From The P100 Pass-Through. See Fig 5. |
| S366 | In The Body Harness, Approx 46" (117 cm) From The P800 Pass-Through. See Fig 2. |
| S418 | In The Body Harness, Approx 63.5" (161.5 cm) From The P800 Pass-Through |
| S451 | In The Body Harness, Approx 60.9" (155 cm) From The P800 Pass-Through |
