Home >> Oldsmobile >> 1998 >> Regency V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly

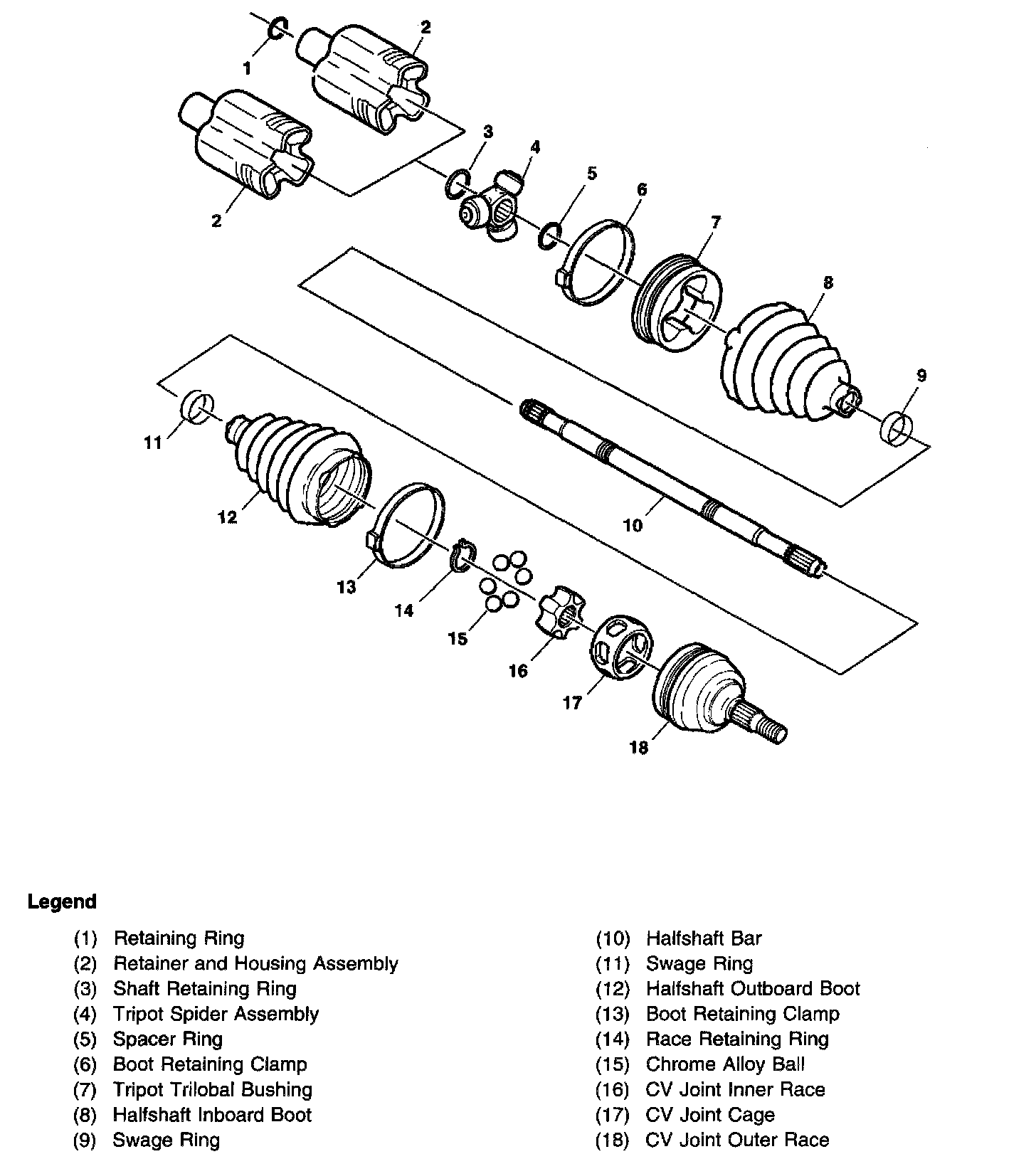

Axle Shaft Assembly

Tripot Design - Front Wheel Halfshaft:
