Home >> Oldsmobile >> 1998 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Locations >> Blower Control Module

Blower Control Module

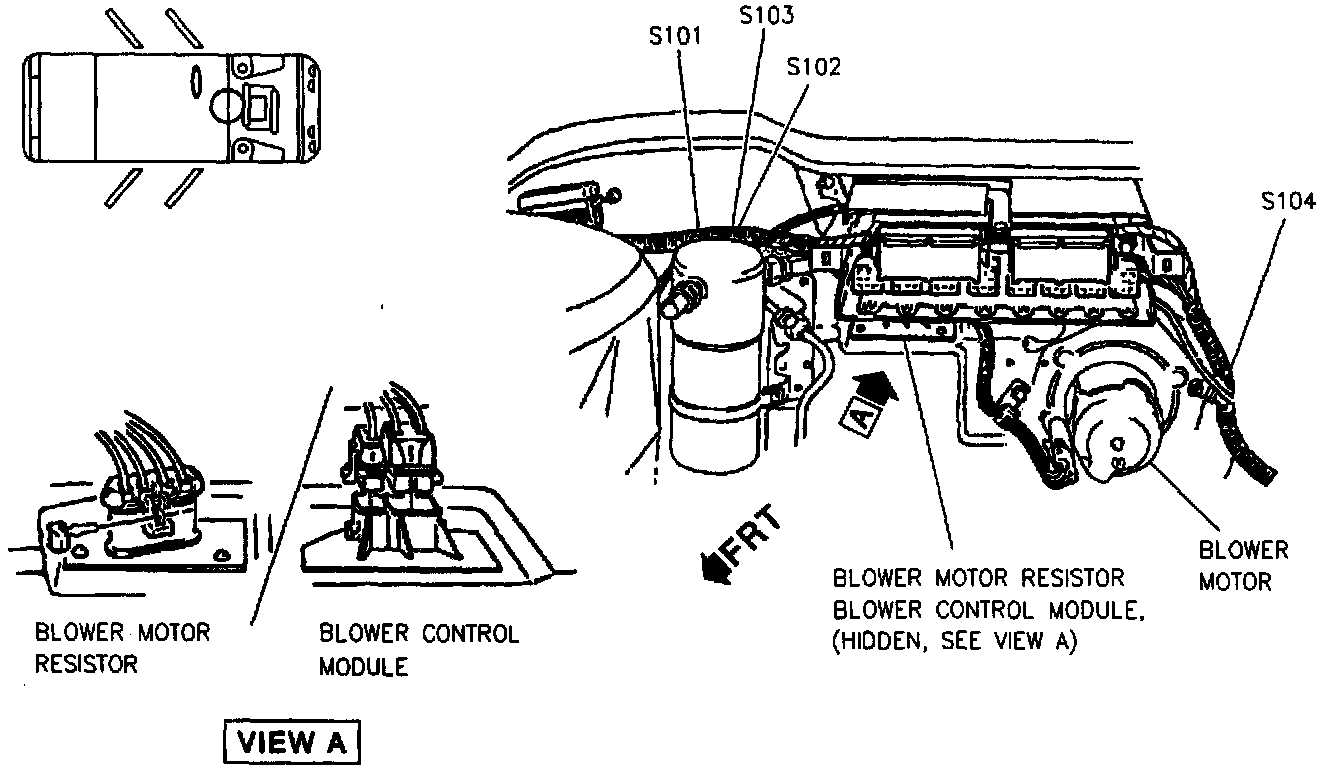

Rear Of Of The Engine Compartment:

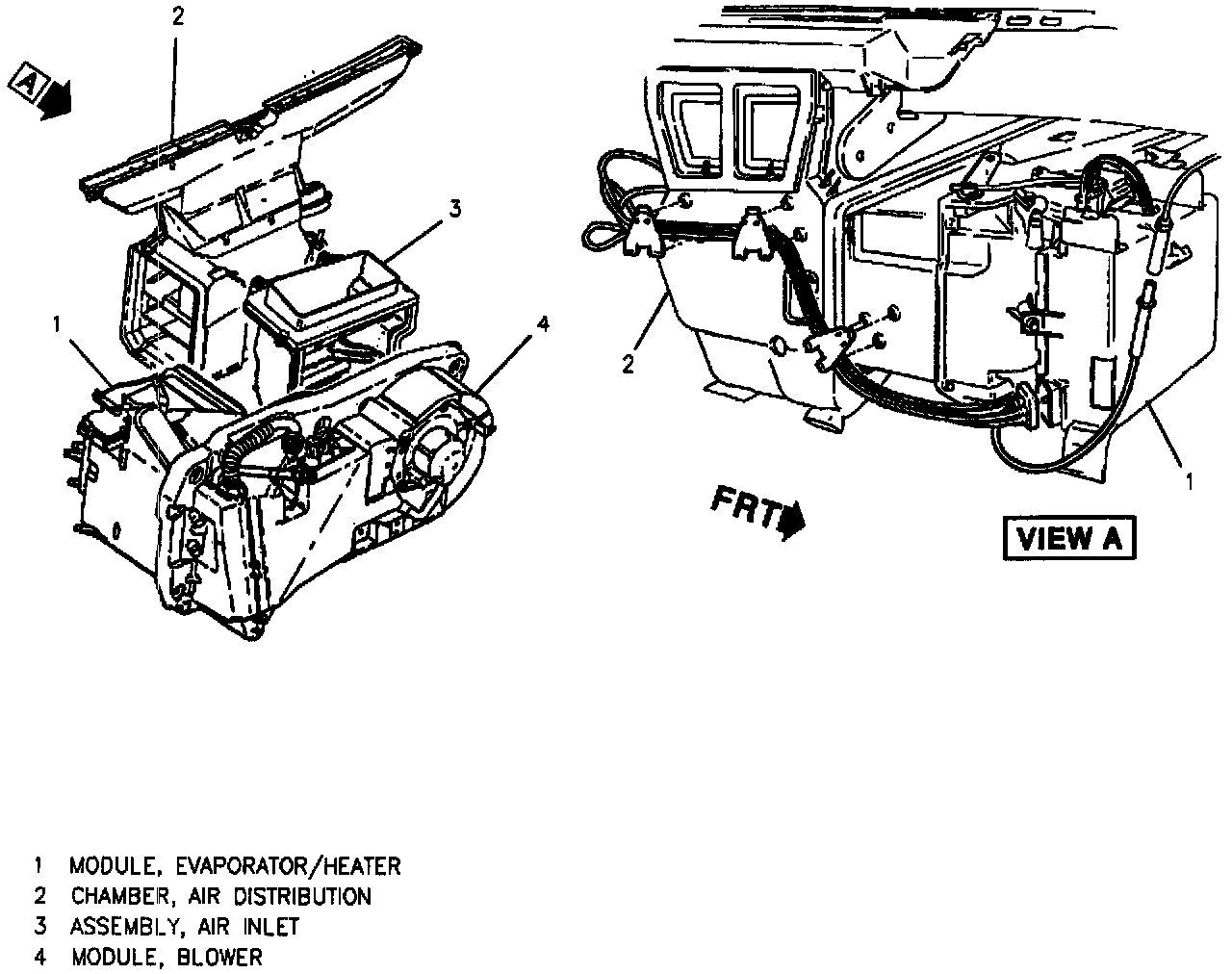

Air Distribution System:
