Home >> Oldsmobile >> 1998 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Diagrams >> Adaptive Lamp Monitor Control Module >> C1

C1

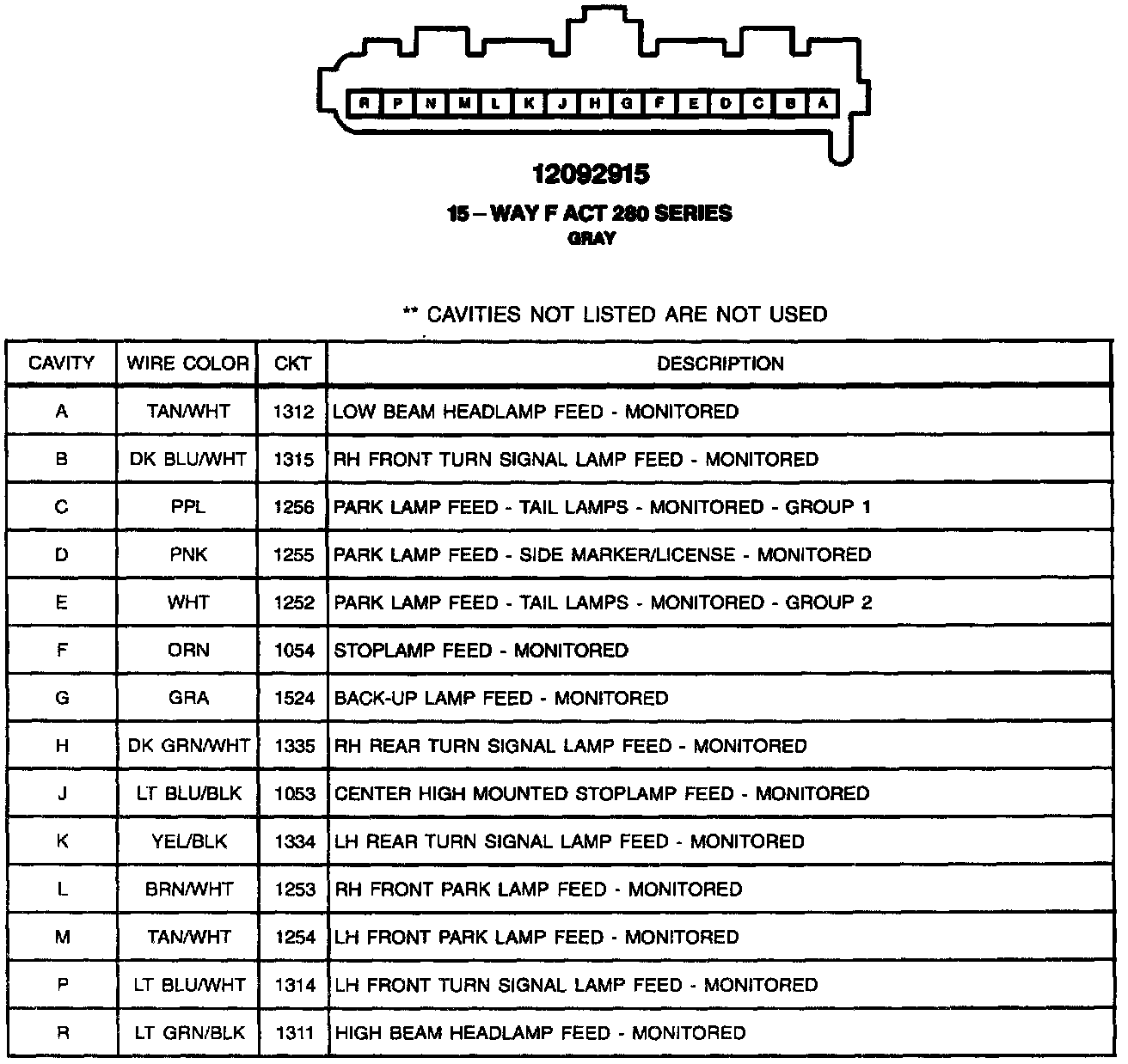

Adaptive Lamp Monitor Control Module: C1:
