Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Specifications
>>
Electrical Specifications
>>
Fuse Block Fuse Applications
Fuse Block Fuse Applications

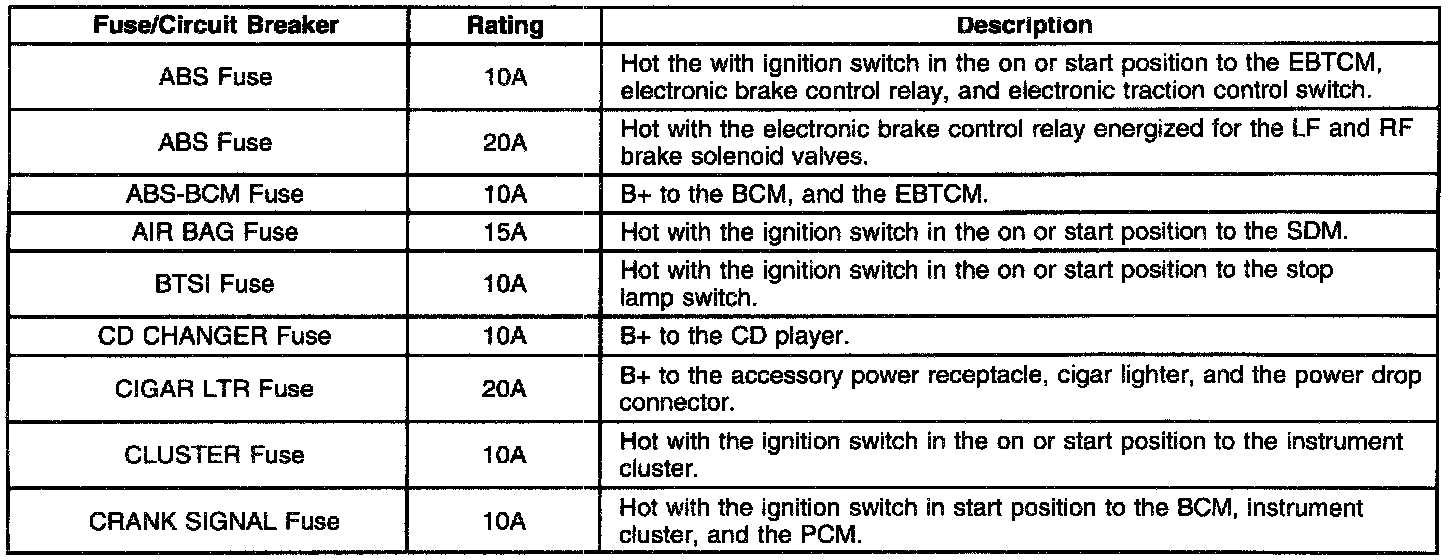

Fuse Block Fuse Applications (Part 1 Of 2):

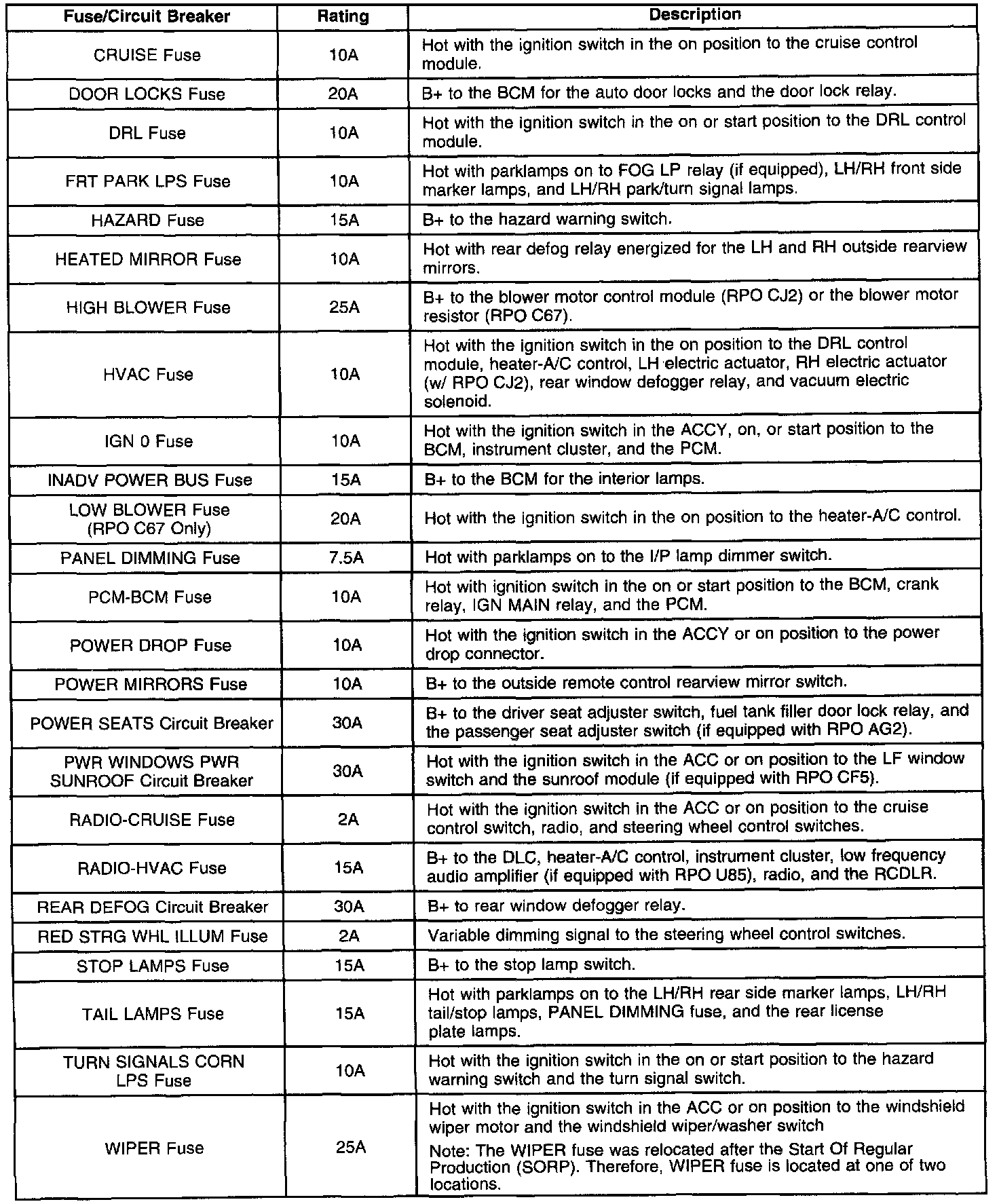

Fuse Block Fuse Applications (Part 2 Of 2):
