C1
C1

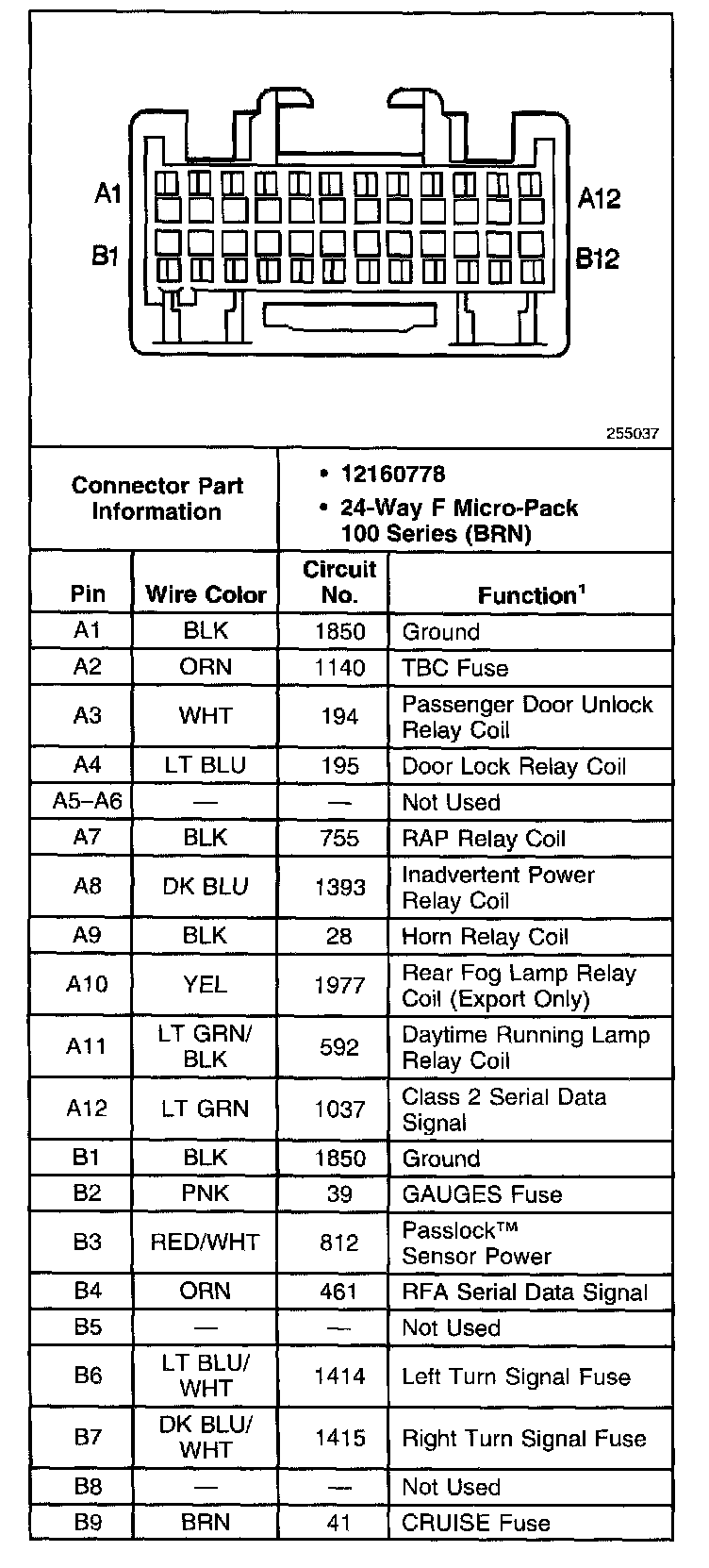

Body Control Module Connector: C1 (Part 1 Of 2):
Body Control Module Connector: C1 (Part 2 Of 2):
