Oldsmobile
>>
1998
>>
Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

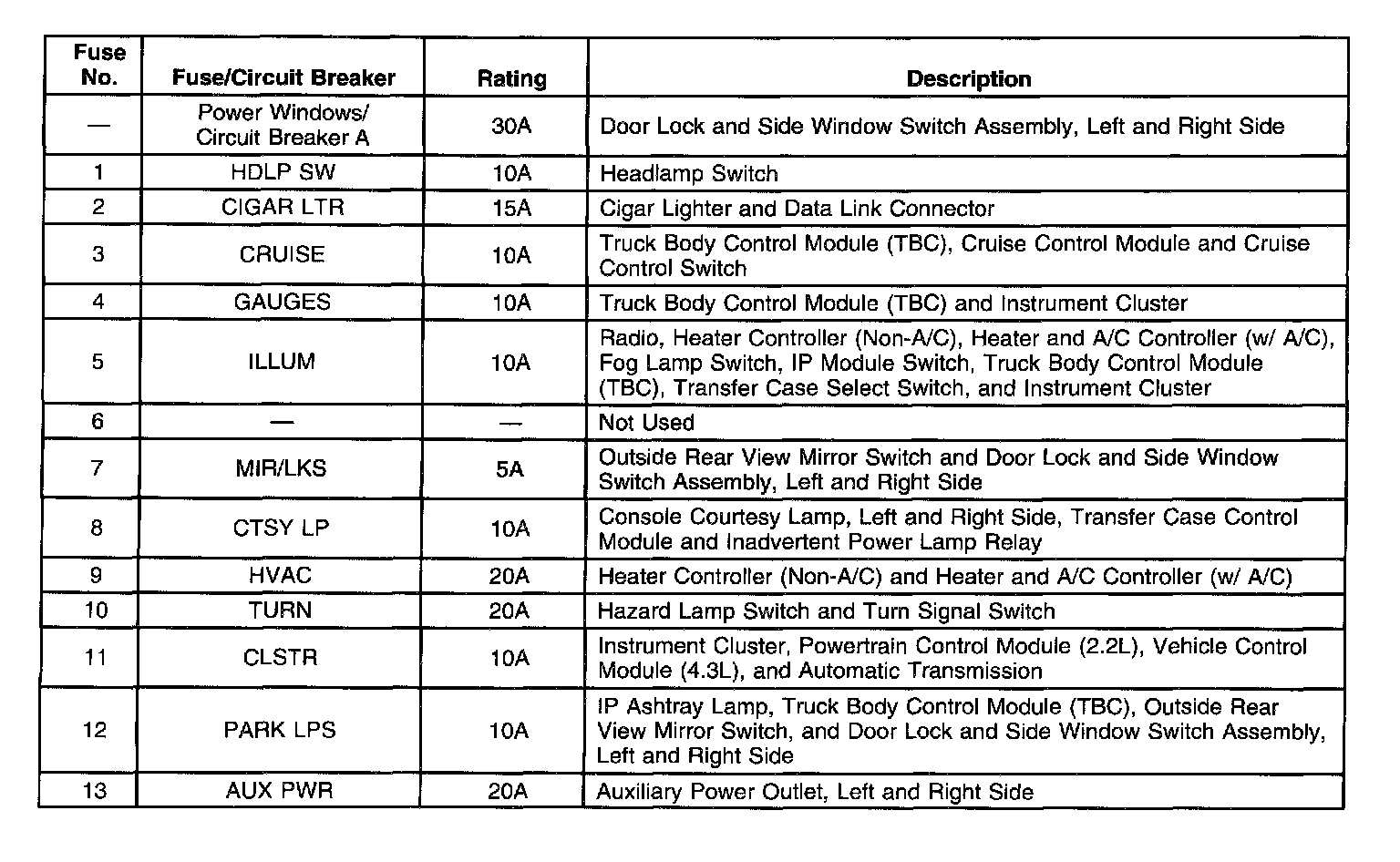

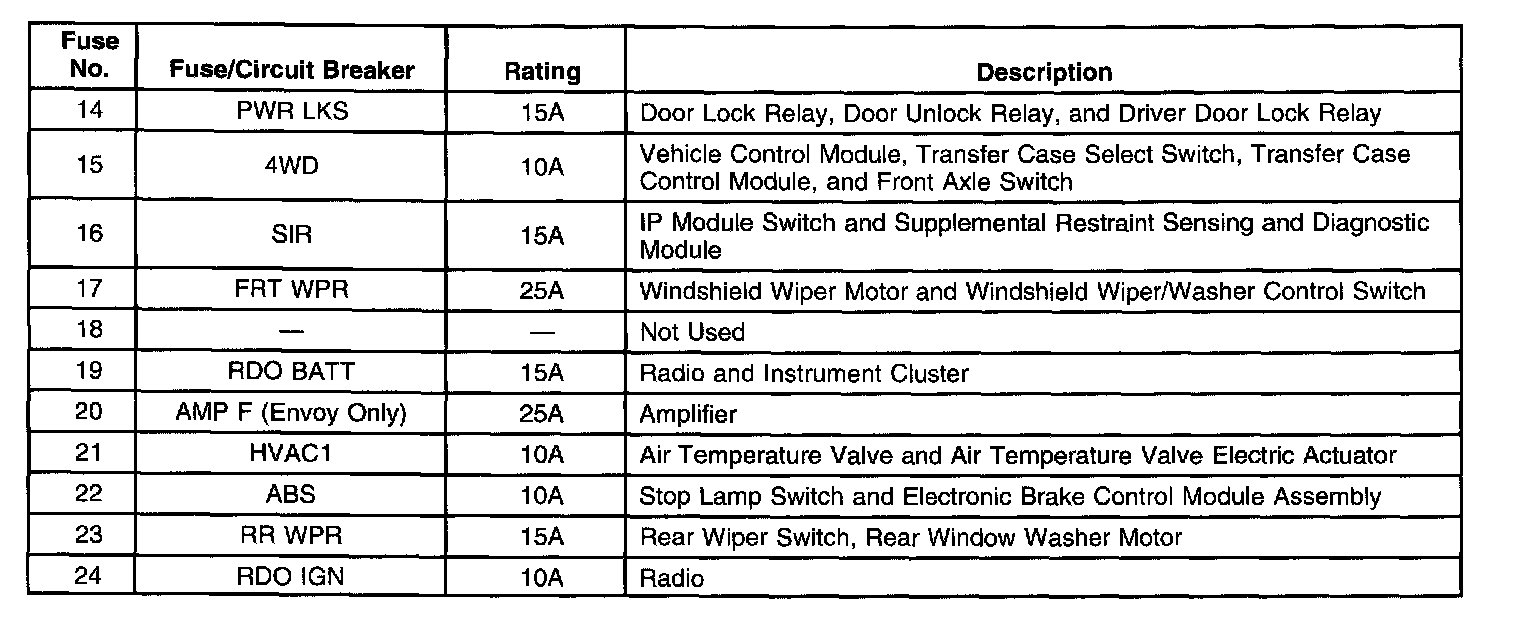

Fuse Application Table
Fuse Application Table

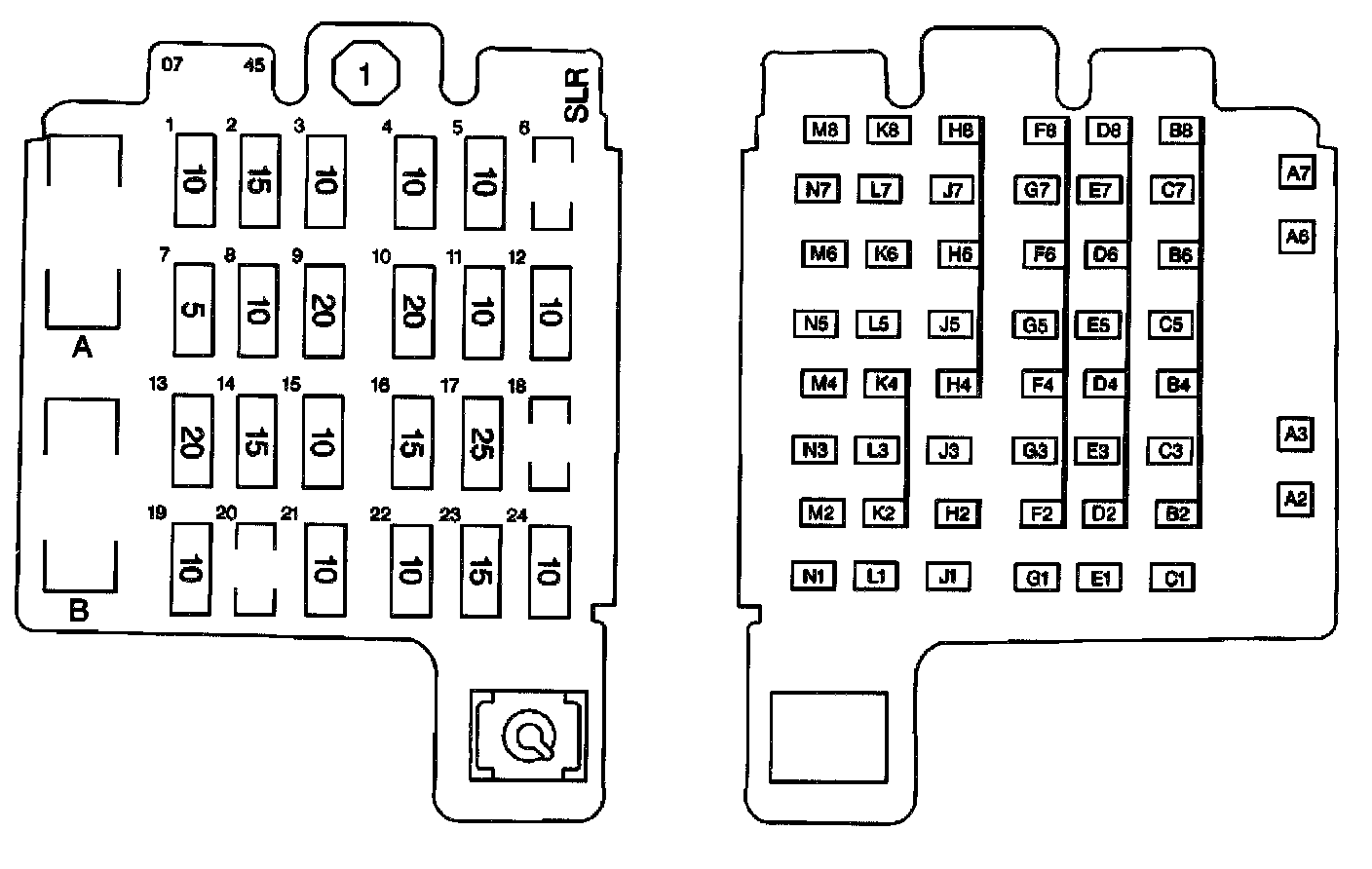

IP Fuse Block Details:
IP Fuse Block Details (Part 1 Of 2):
IP Fuse Block Details (Part 2 Of 2):
