Home >> Oldsmobile >> 1997 >> Regency >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Park Neutral Position (PNP) Switch C1 & C2

Park Neutral Position (PNP) Switch C1 & C2

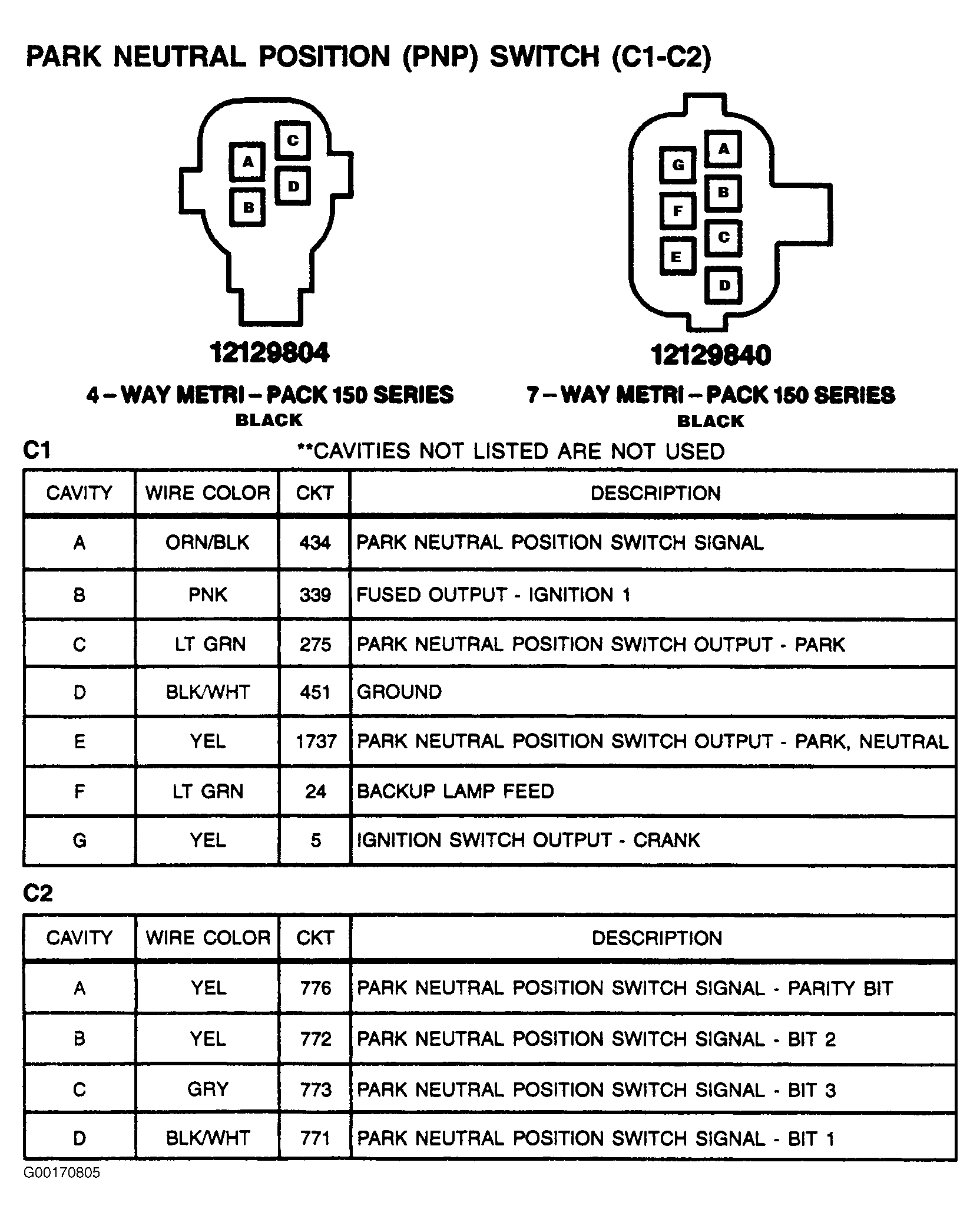

Fig 1: Park Neutral Position (PNP) Switch C1 & C2 - 4-Pin Connector (Black) & 7-Pin Connector (Black)

G00170805

Courtesy of GENERAL MOTORS CORP.
