Transmission Position Sensor/Switch: Locations

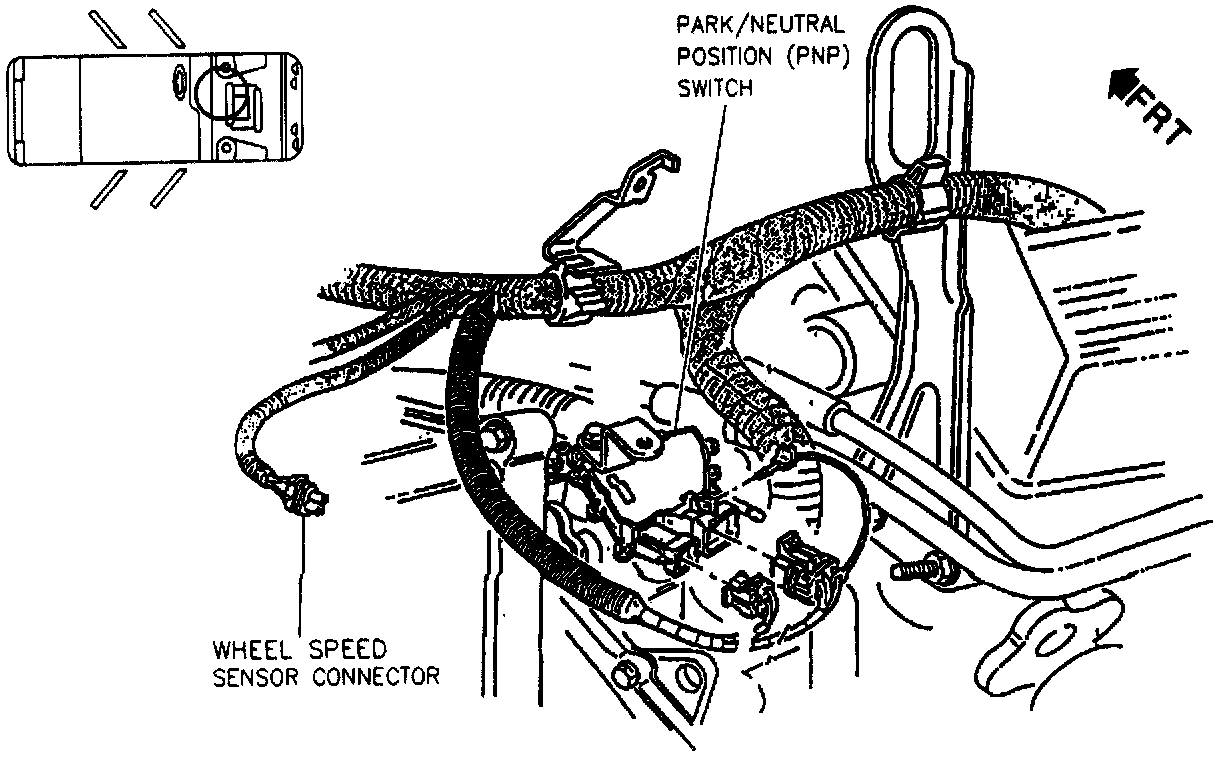

LH Side, Top Of Transaxle:

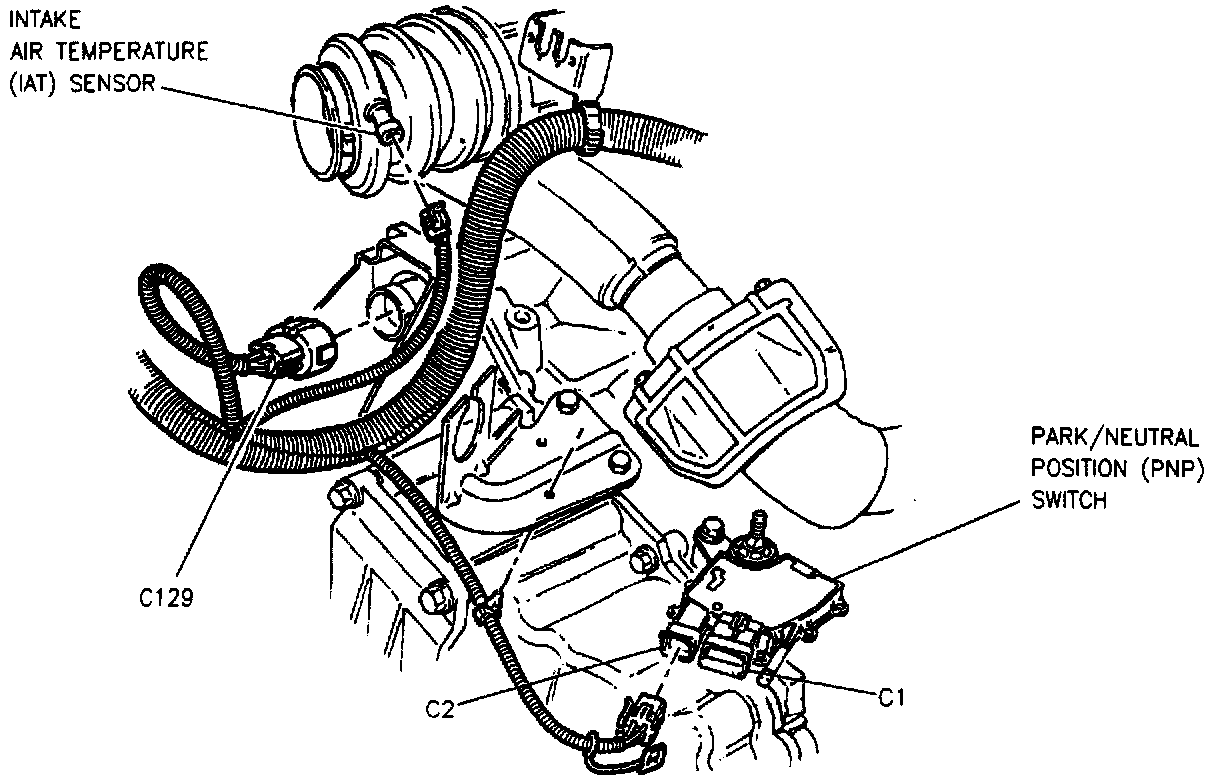

LH Side, Top Of Transaxle:
