Component Locations

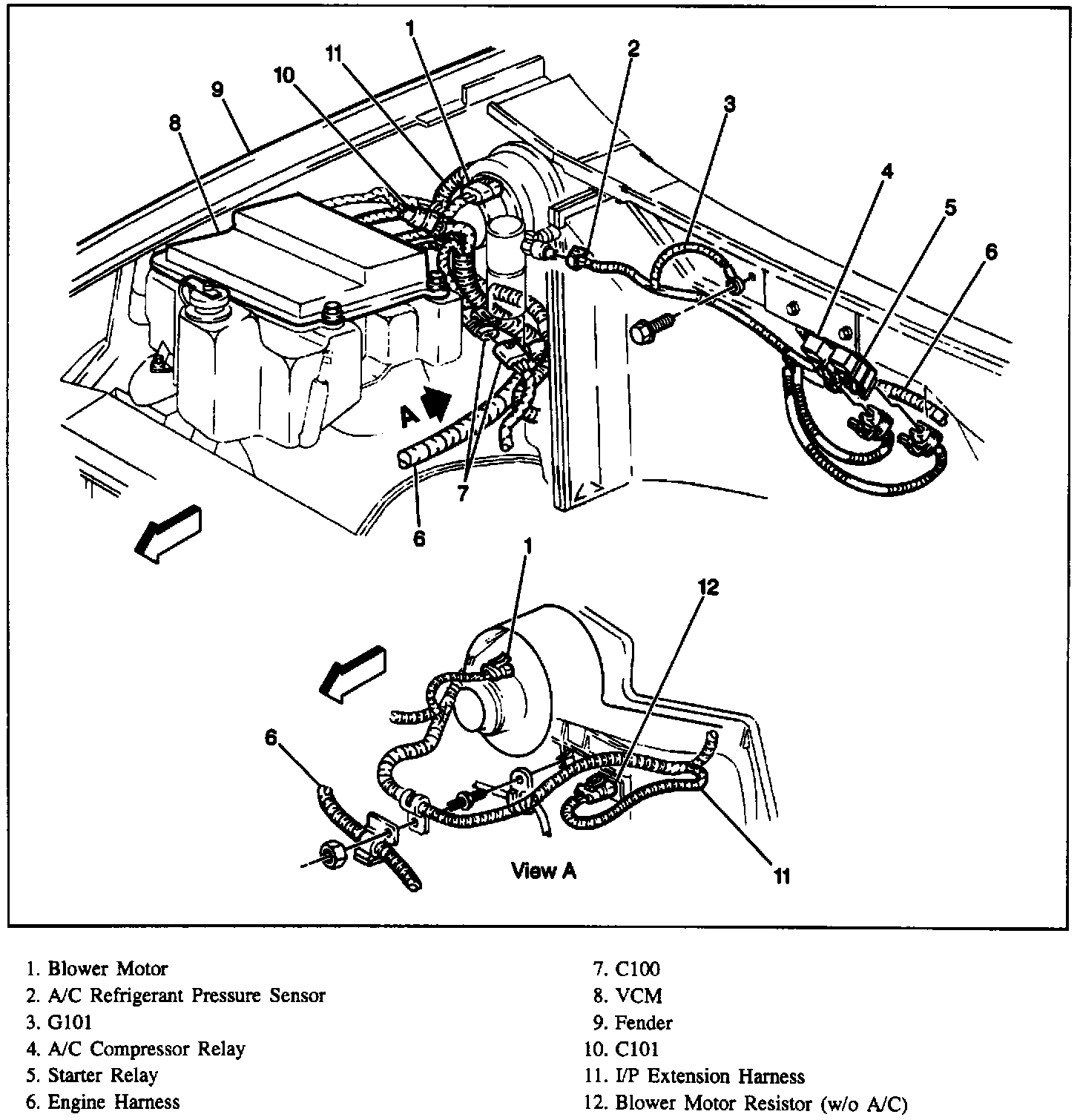

RH Rear Engine Compartment Wiring For Heater Or A/C:

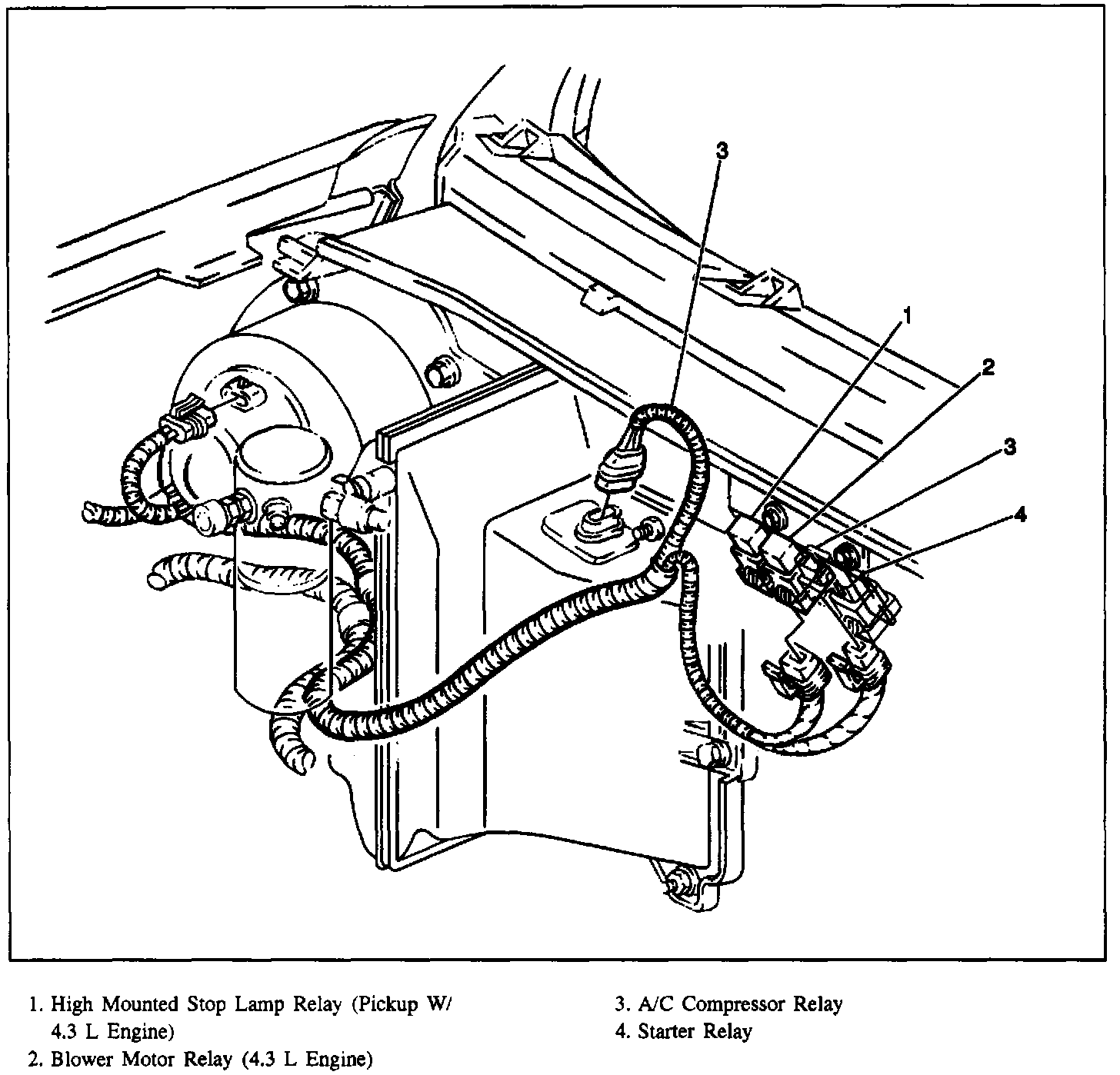

Engine Compartment Right Rear Wiring:

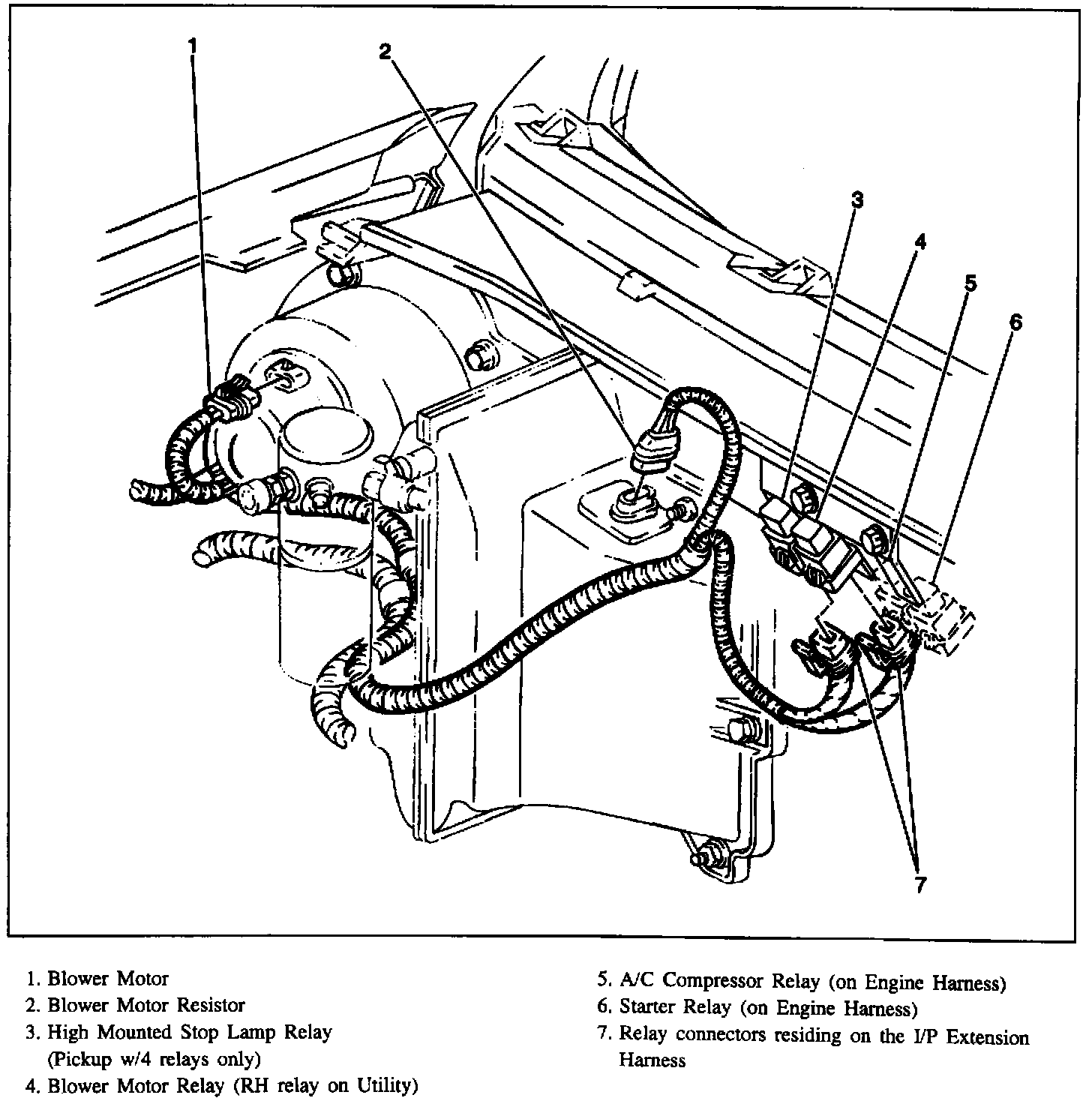

RH Rear Engine Compartment Wiring (I/P Extension Harness):
