Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
Connector Views
Vehicle Speed Sensor (W/ A/T And VSS Extension Harness):
Vehicle Speed Sensor (W/ M/T):

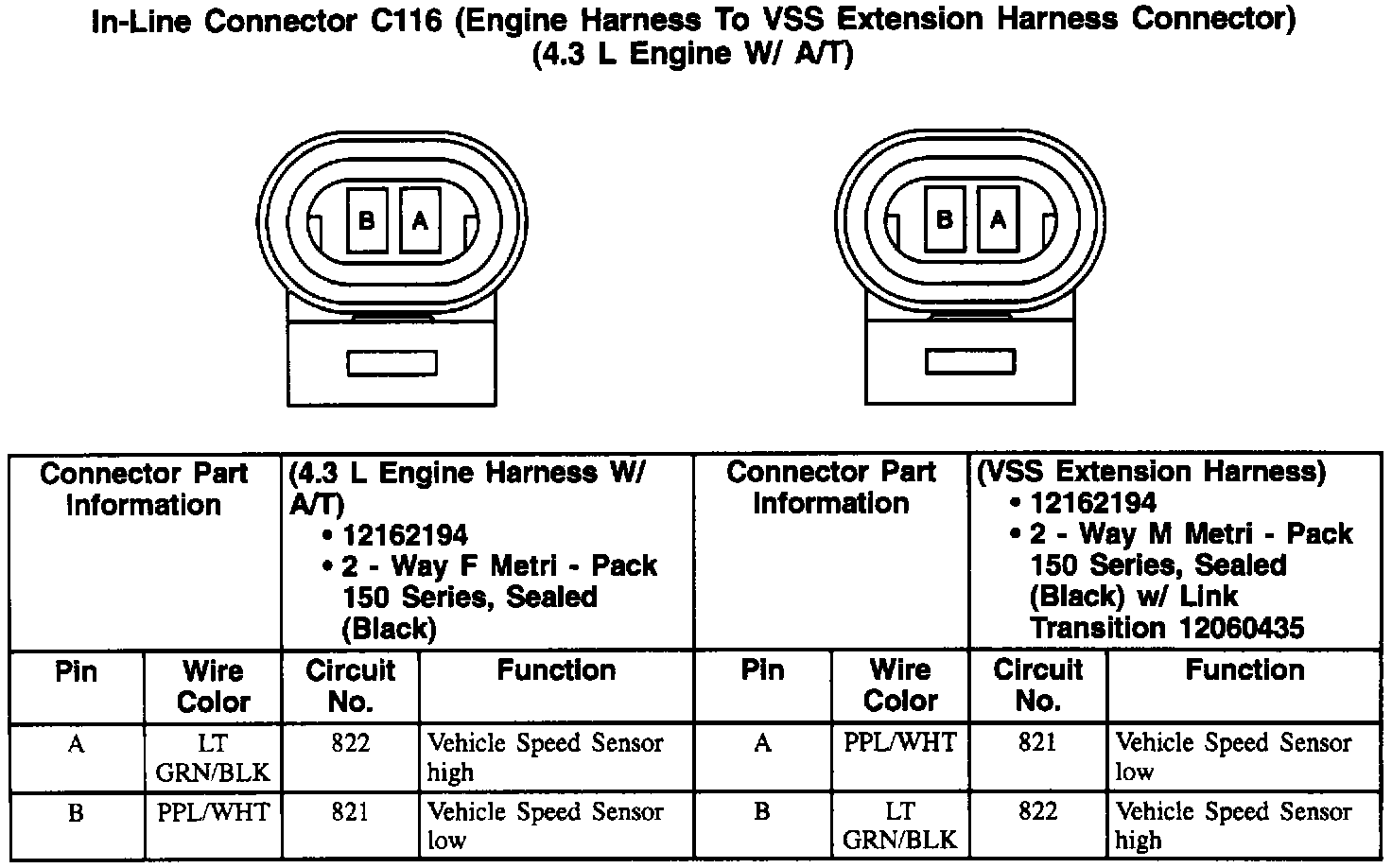

In-Line Connector: C116 (With A/T):
