Home >> Oldsmobile >> 1997 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> I/P Fuse Block

I/P Fuse Block

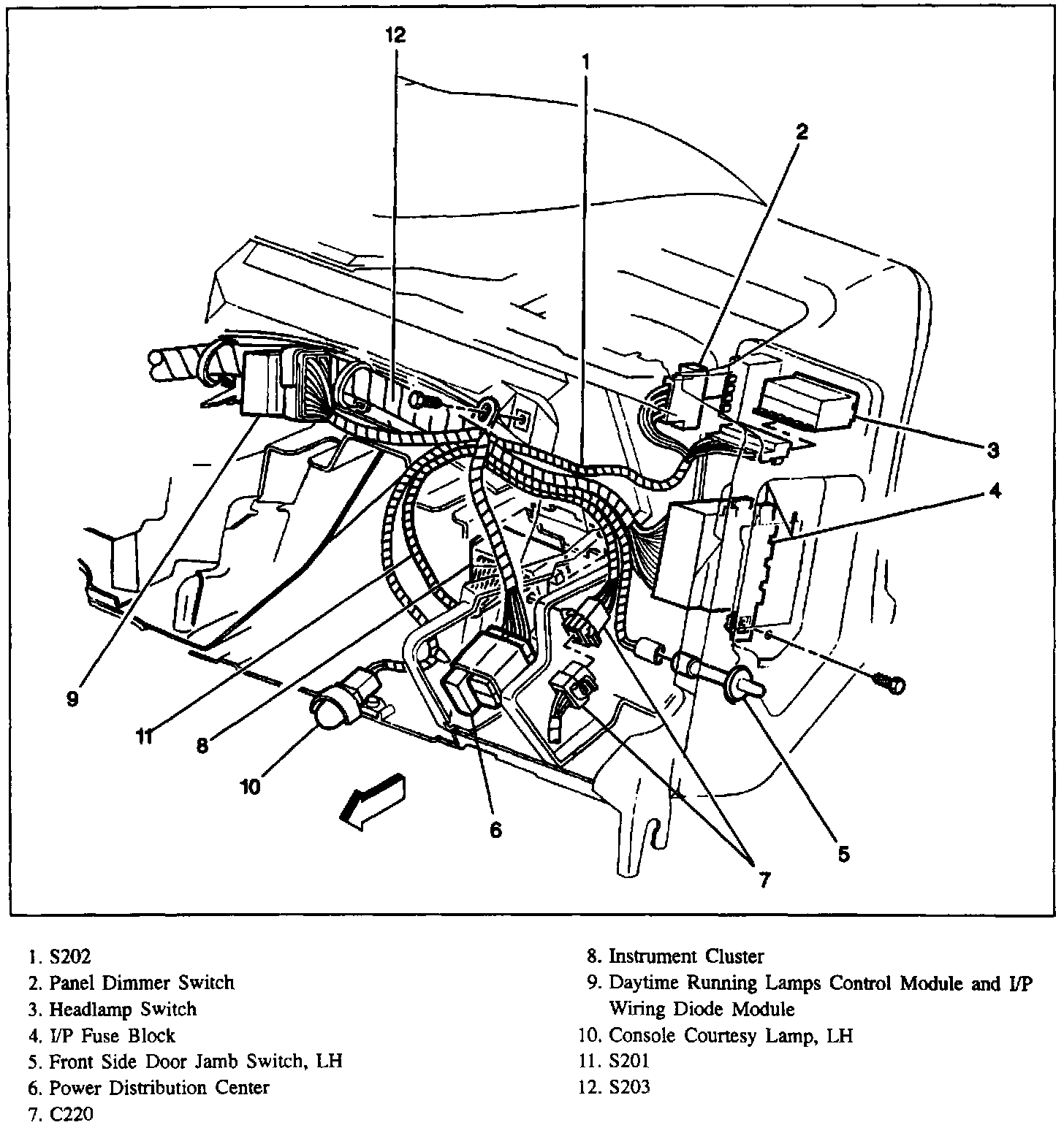

I/P Wiring (LH Side):
