Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Application Table
Fuse Application Table

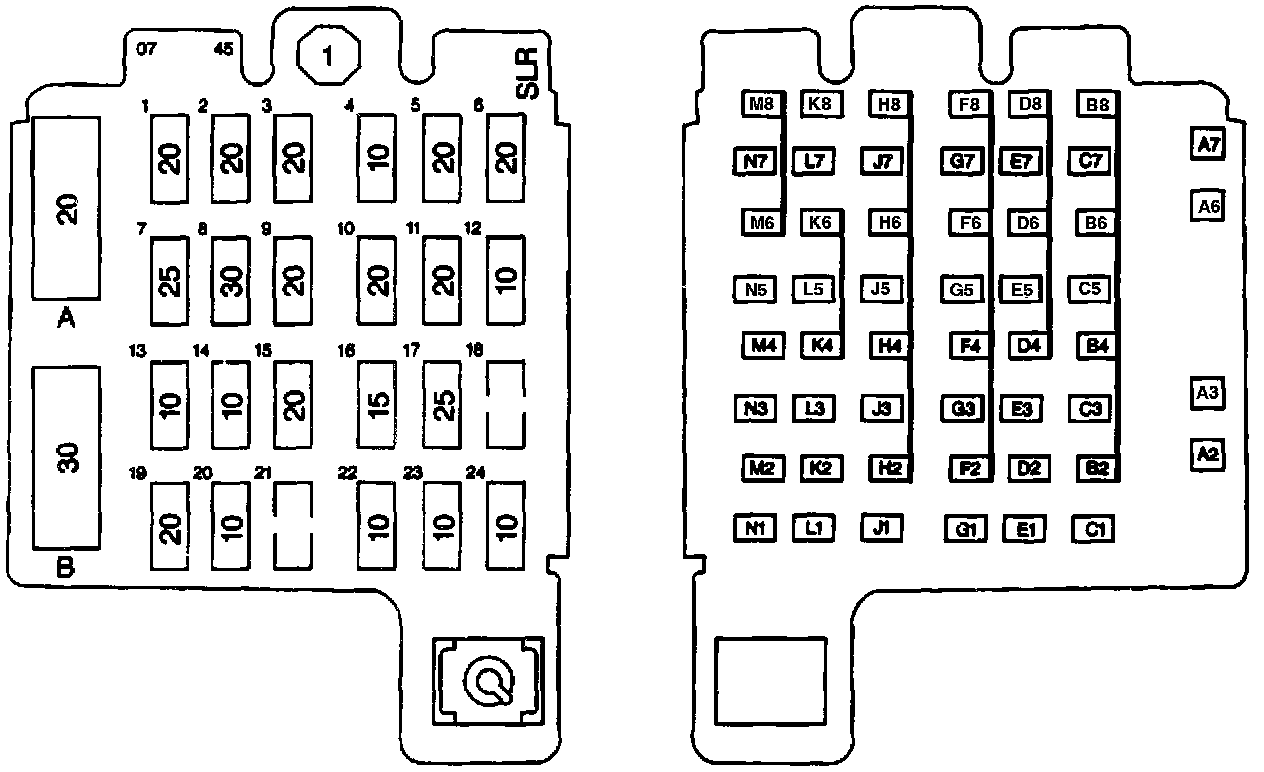

Fuse Block Details:

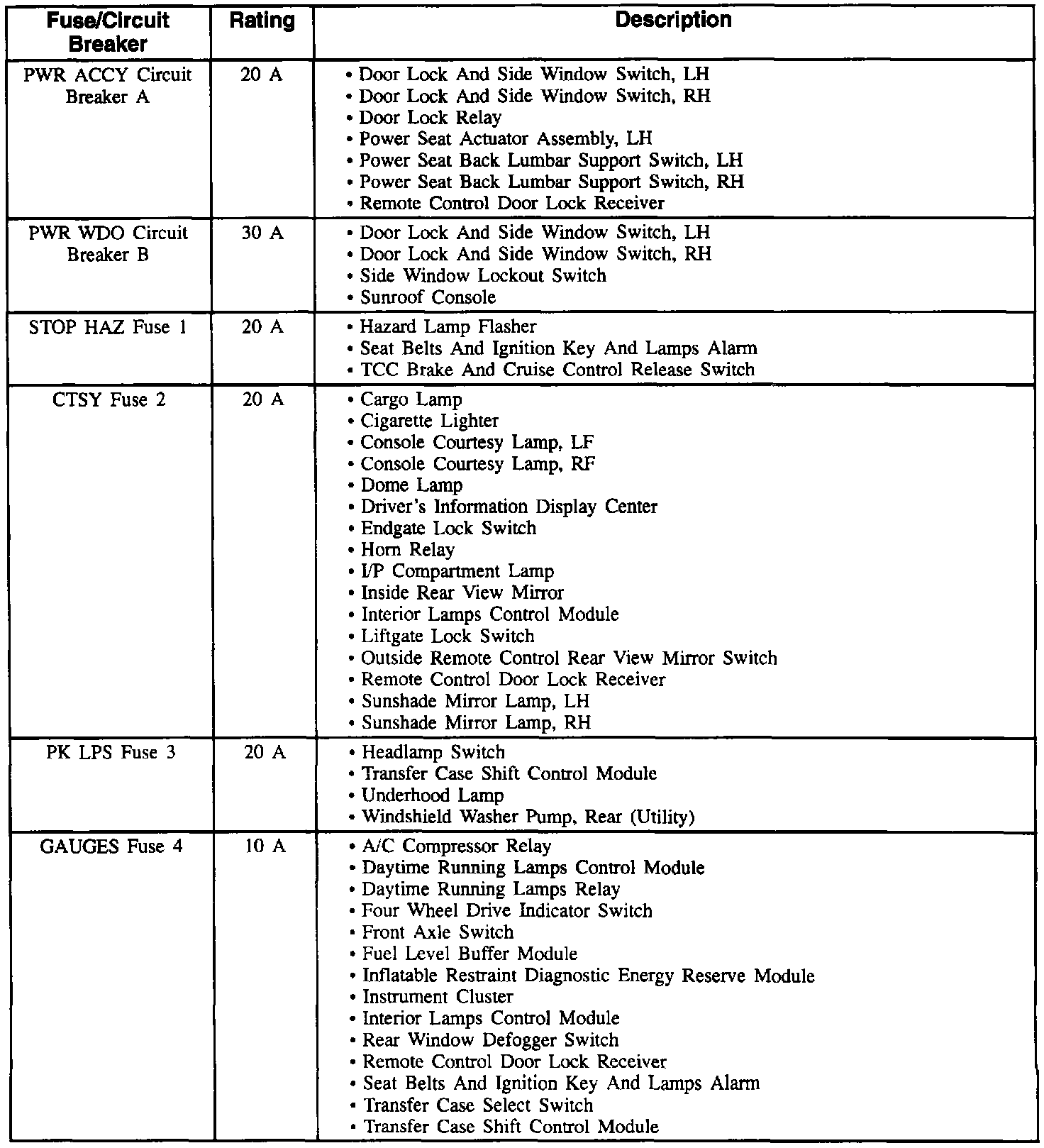

Fuse Application Table (Part 1 Of 3):

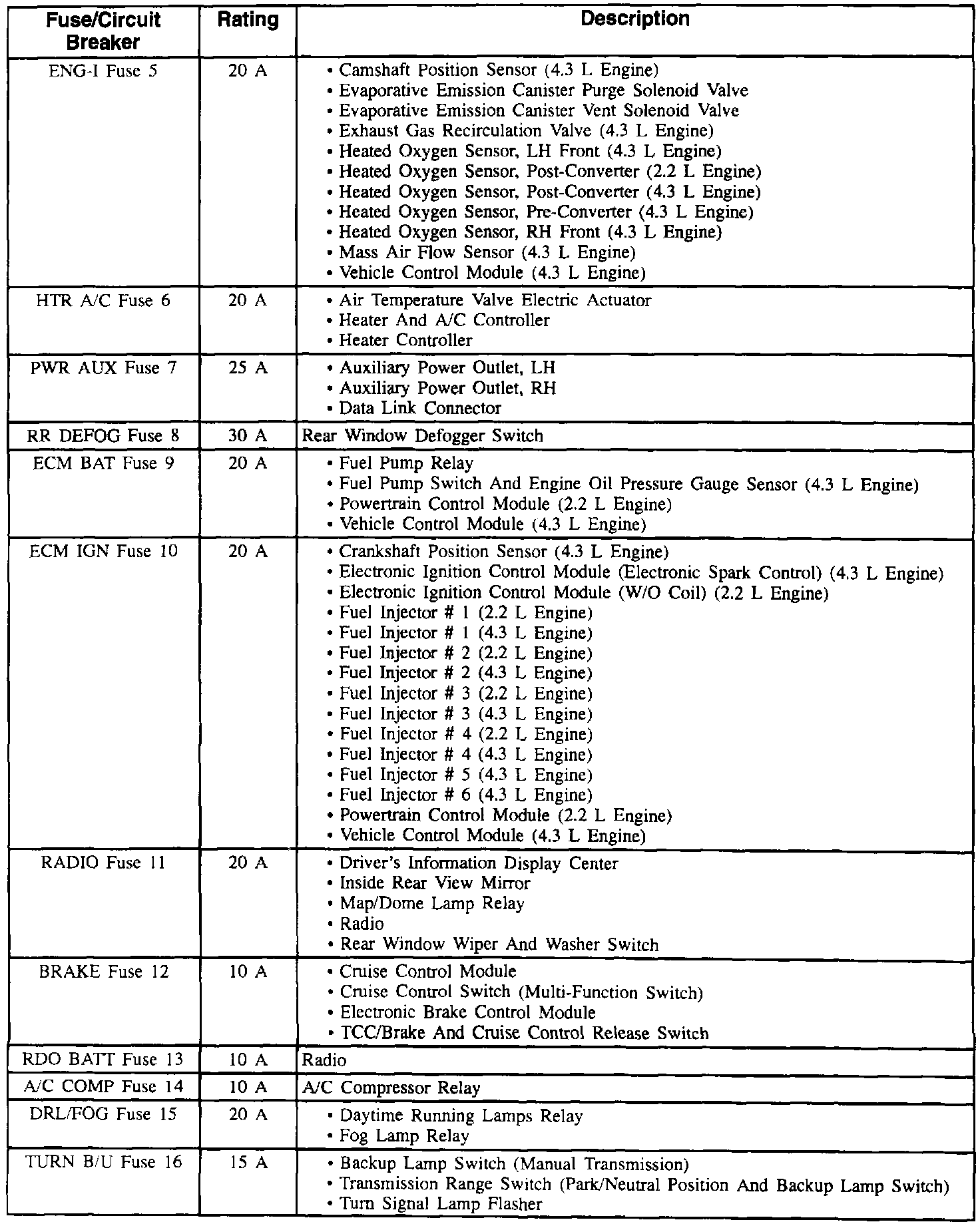

Fuse Application Table (Part 2 Of 3):

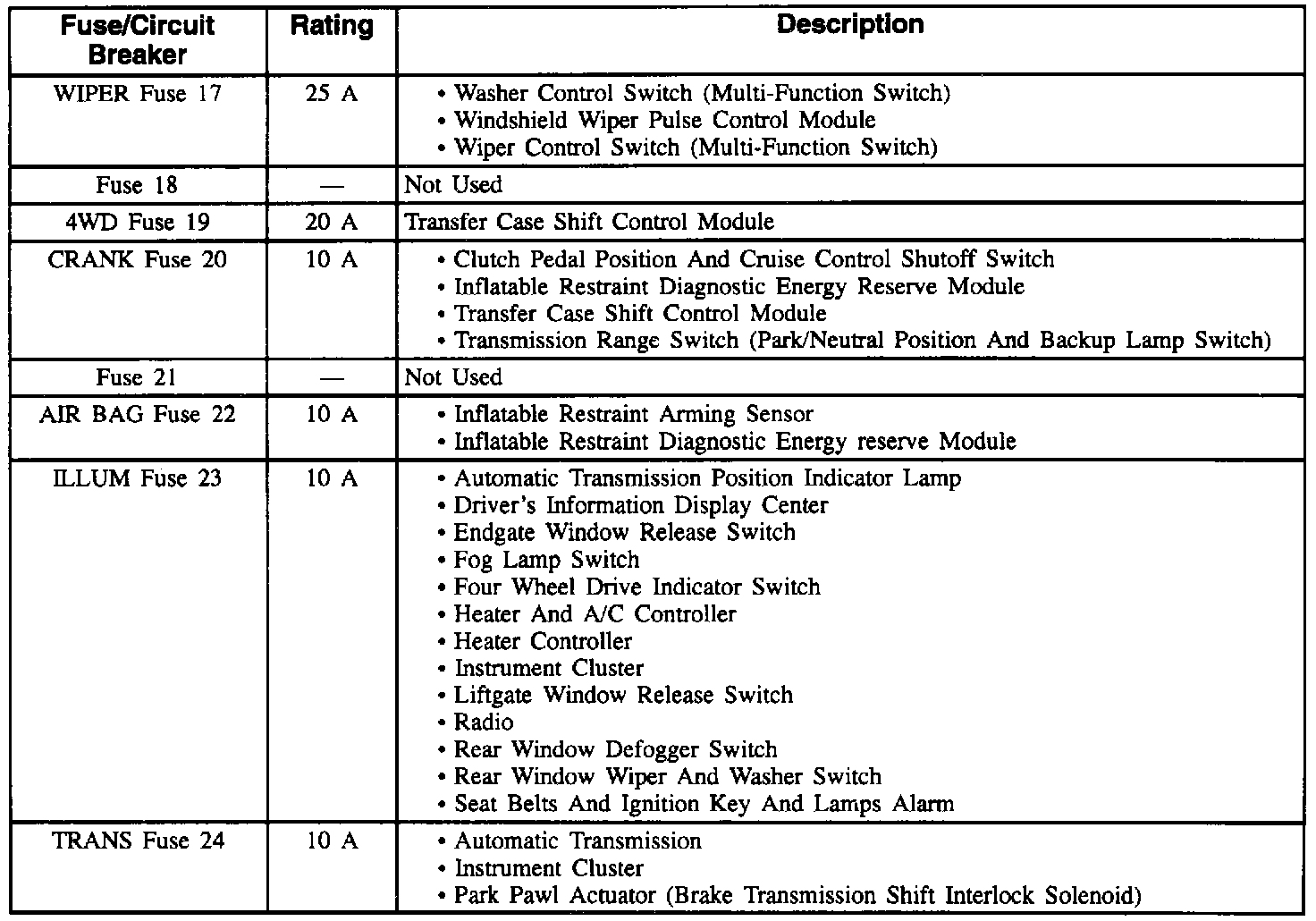

Fuse Application Table (Part 3 Of 3):
