Home >> Oldsmobile >> 1996 >> Silhouette V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

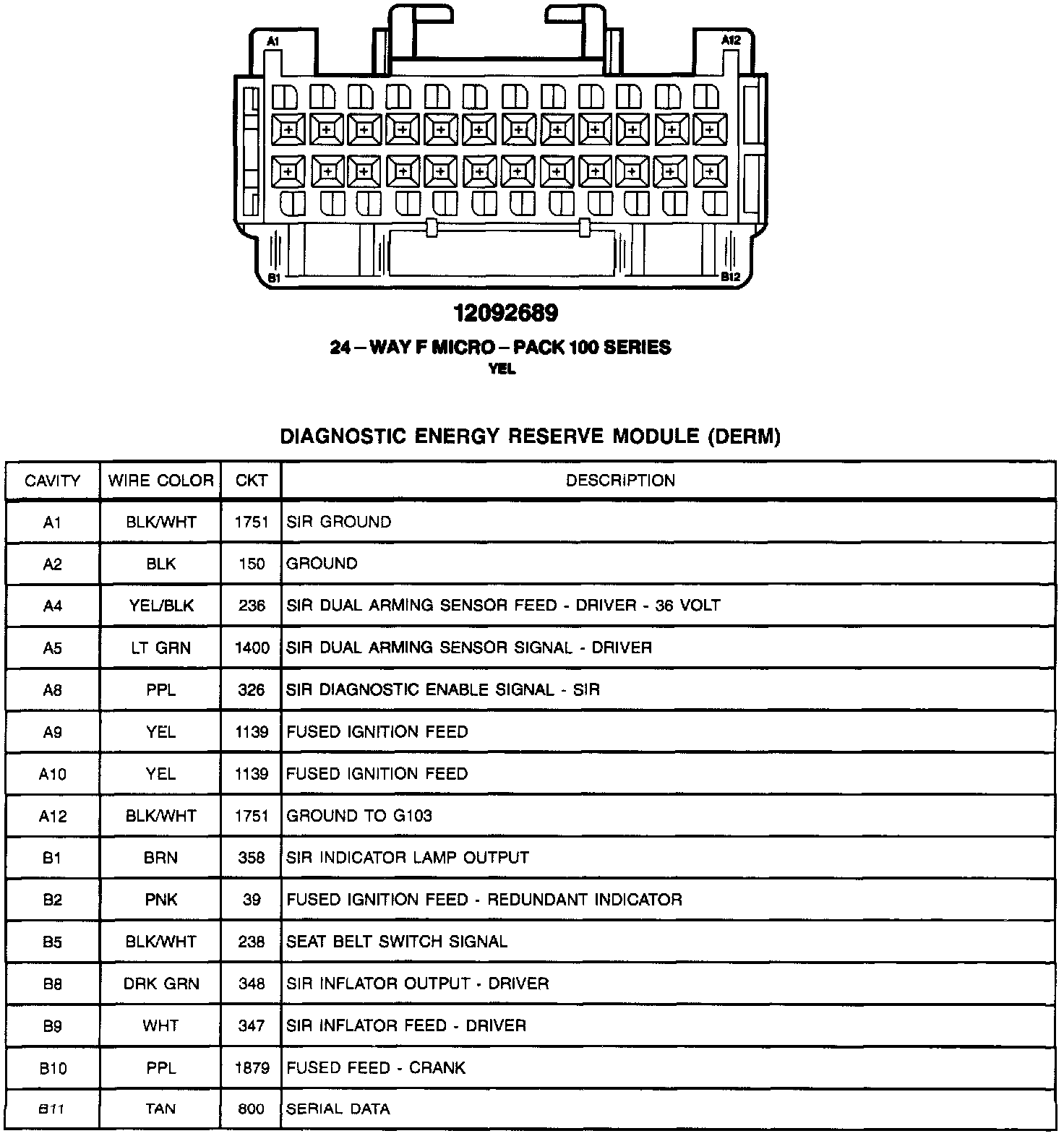

Air Bag Control Module

Diagnostic Energy Reserve Module (DERM):
