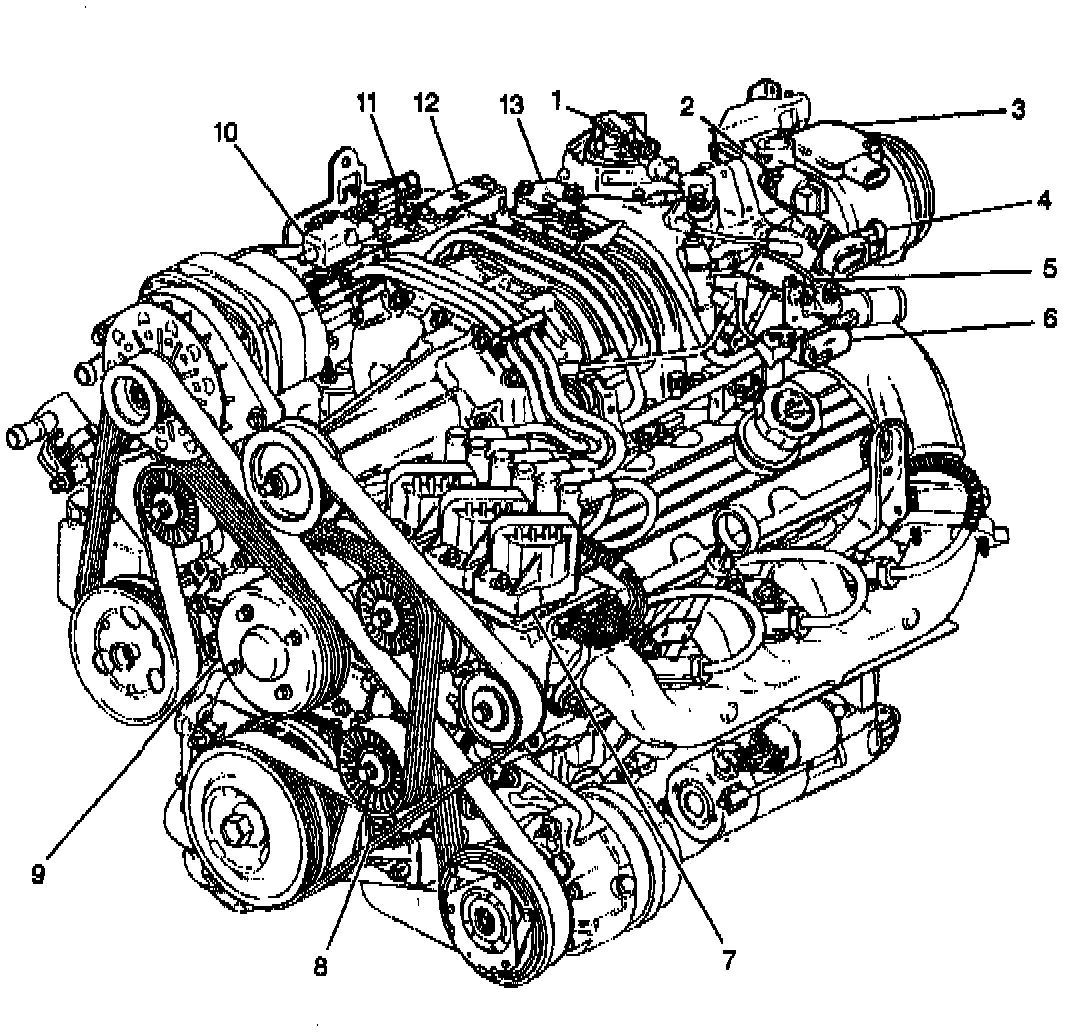

Powertrain Management: Locations

LEGEND
(1) Exhaust Gas Recirculation (EGR) Valve
(2) Idle Air Control (lAC) Valve
(3) Mass Air Flow (MAF) Sensor
(4) Throttle Position (TP) Sensor
(5) Bypass Valve Actuator
(6) Boost Control Solenoid
(7) Ignition Control Module
(8) Crankshaft Position (CKP) Sensor
(9) Camshaft Position (CMP) Sensor
(10) EVAP Canister Purge Valve
(11) Heated Oxygen Sensor 1 (HO2S 1)
(12) Manifold Absolute Pressure (MAP) Sensor
(13) PCV Valve
