Home >> Oldsmobile >> 1996 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

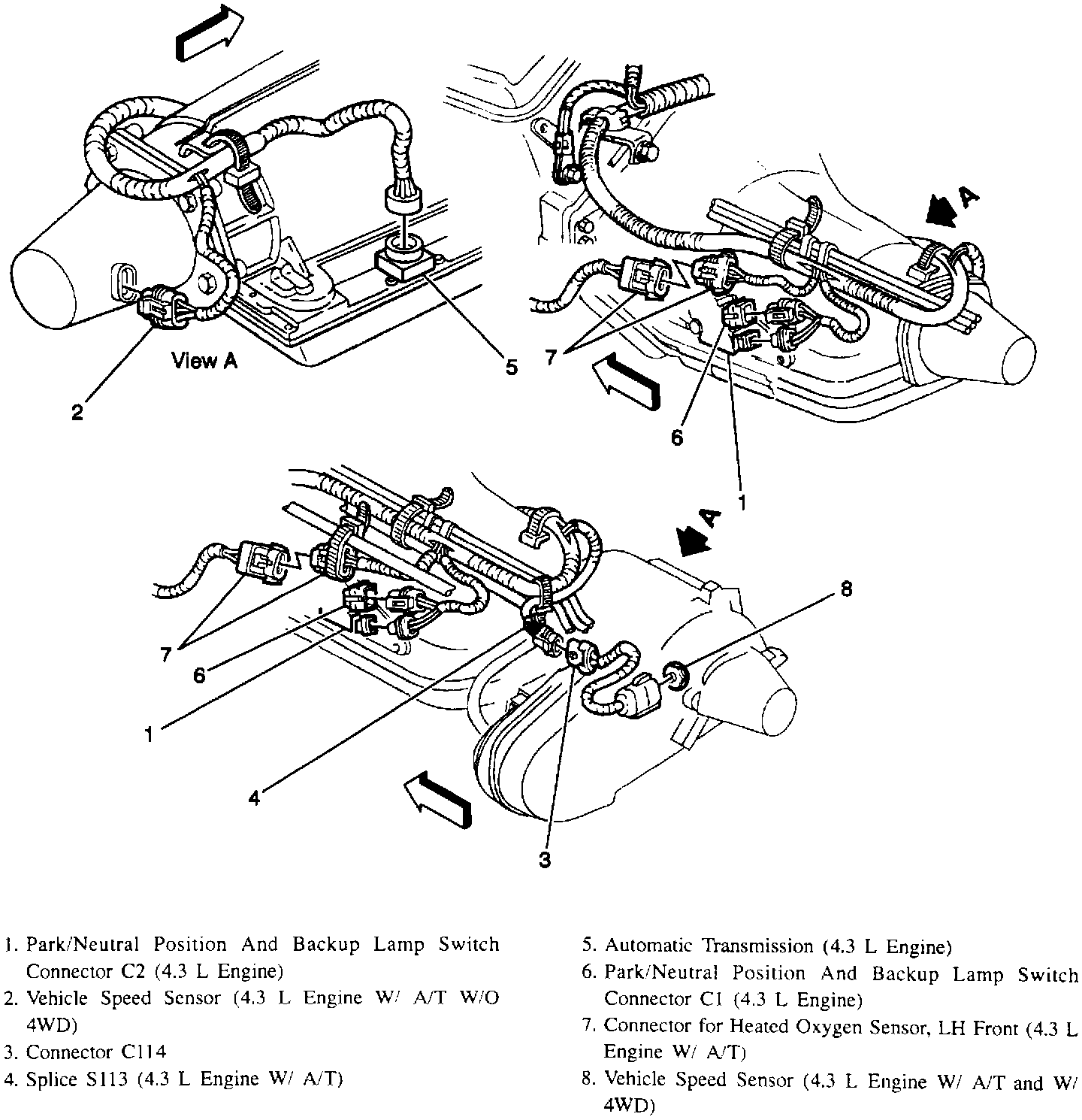

Automatic Transmission Wiring (4.3L Engine Shown Others Similar):
