Home >> Oldsmobile >> 1995 >> Ninety-Eight V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations >> Harness View

Harness View

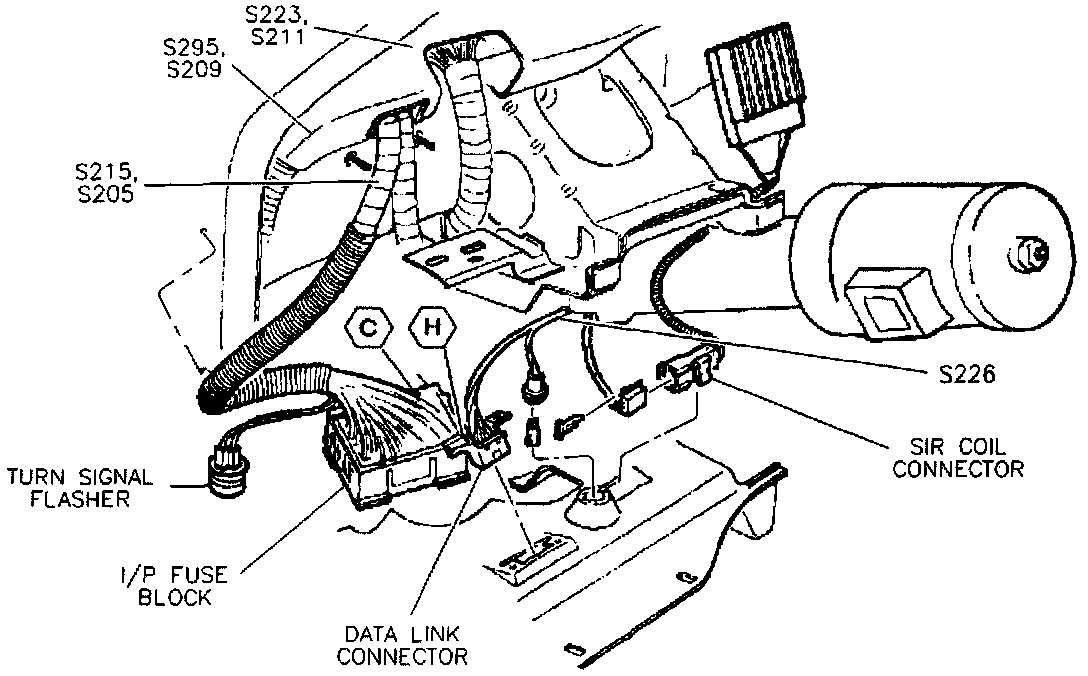

Passenger Compartment, I/P Fuse Block And Related Wiring:

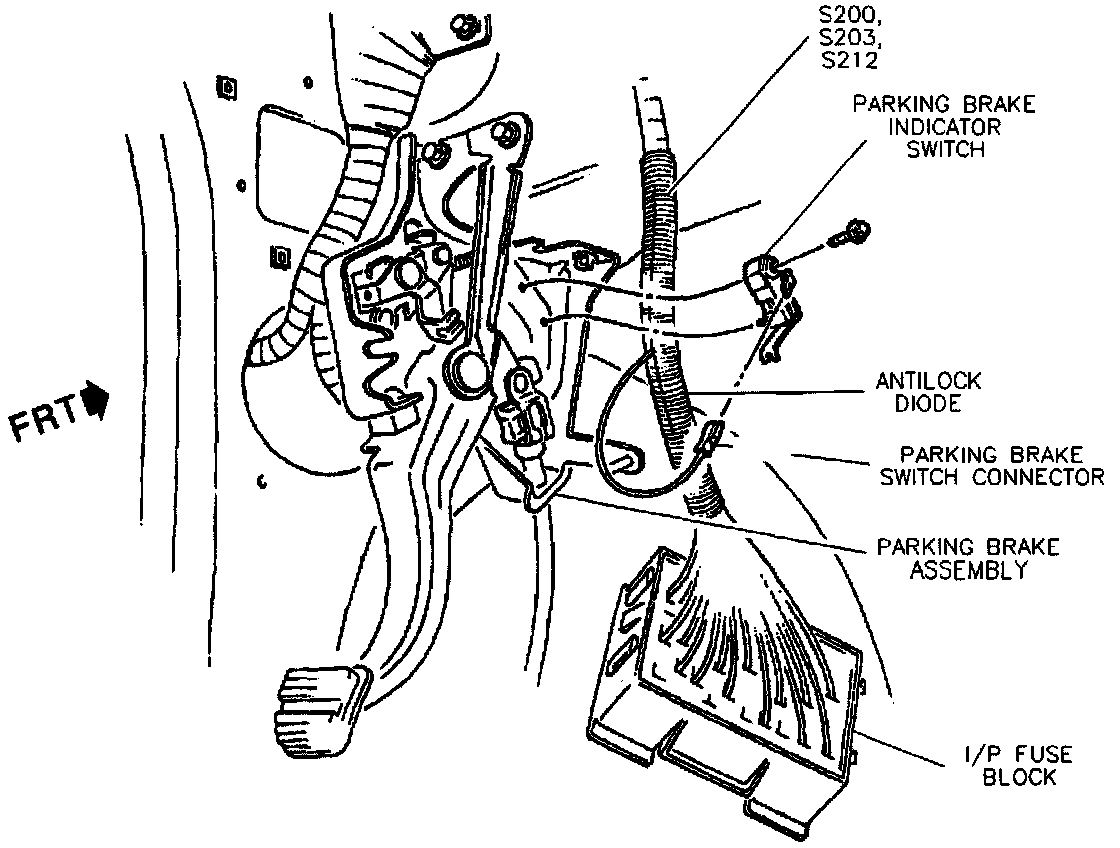

Park Brake Switch Wiring:
