Home >> Oldsmobile >> 1995 >> Ninety-Eight V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Mid-Rail Discriminating Sensor

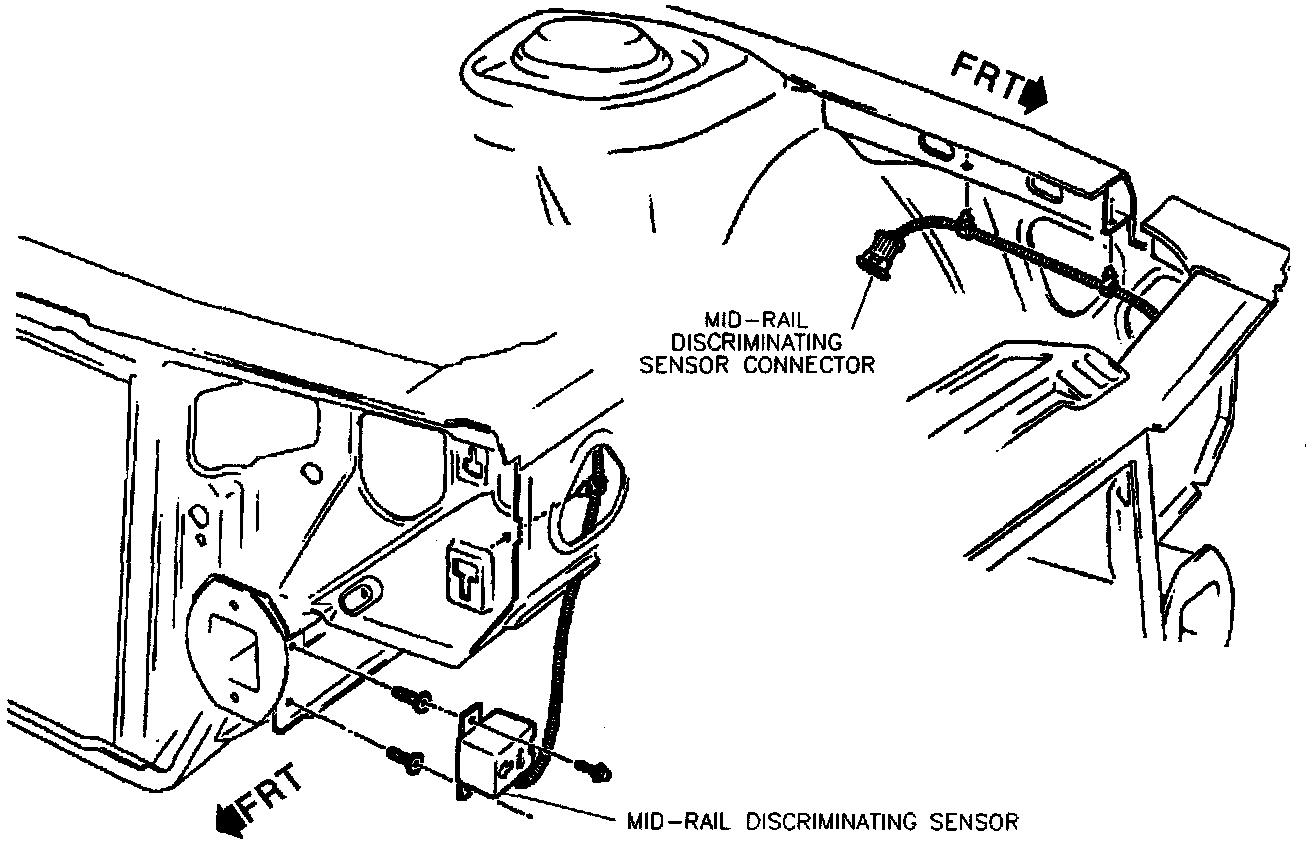

Mid-Rail Discriminating Sensor

Electrical Wiring, LH Front Of Engine Compartment:
