Remote Keyless Entry System

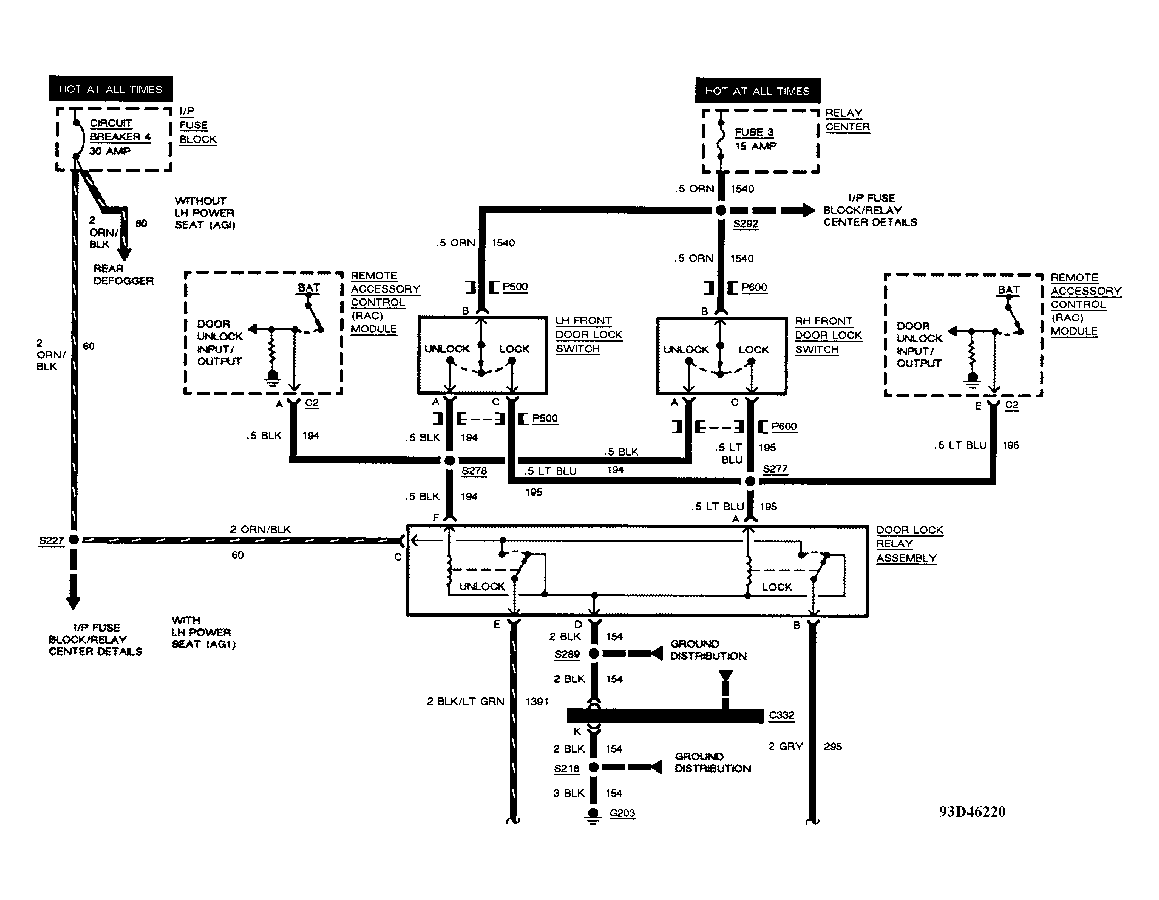

Fig 1: Wiring Diagram (Bonneville - 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

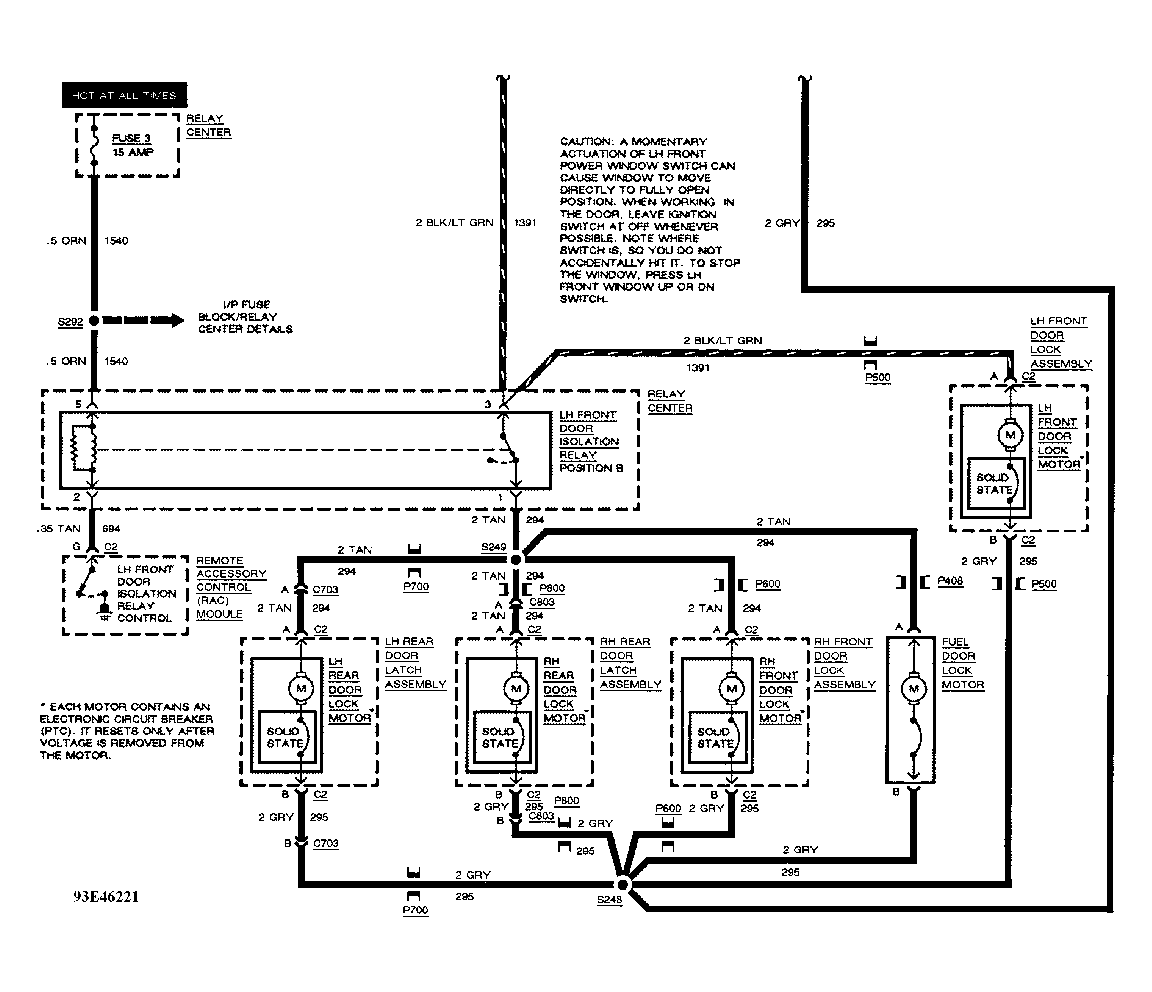

Fig 2: Wiring Diagram (Bonneville - 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

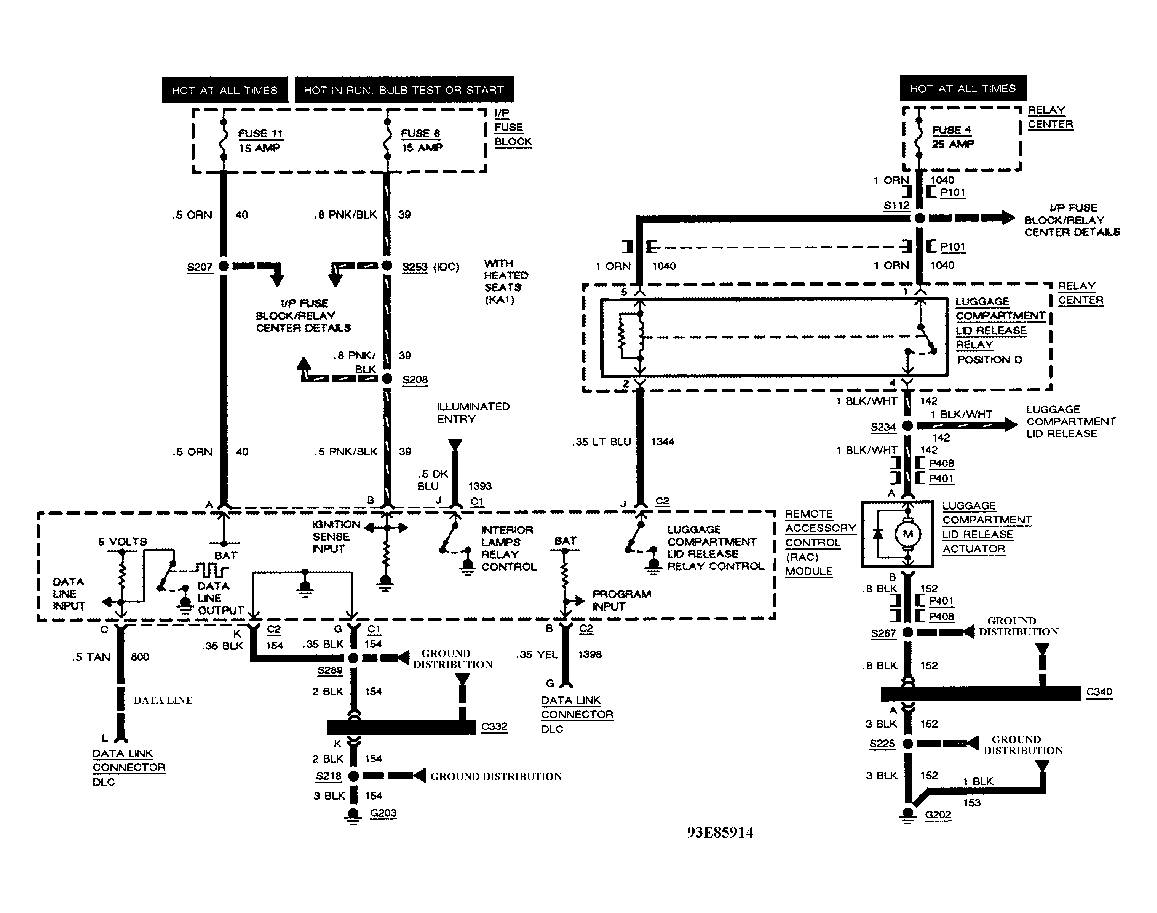

Fig 3: Wiring Diagram (Bonneville - 3 Of 3)

Courtesy of GENERAL MOTORS CORP.

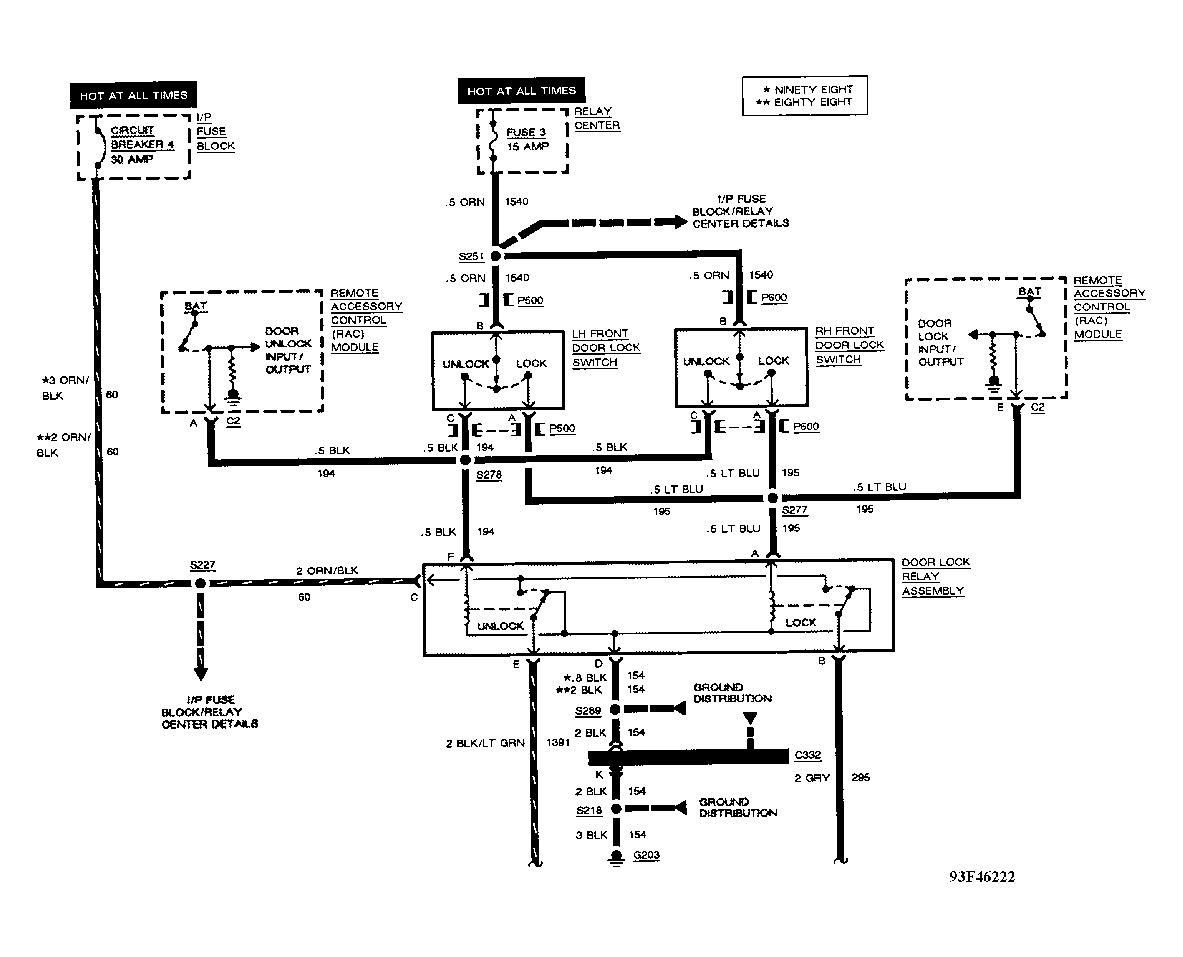

Fig 4: Wiring Diagram (Eighty-Eight & Ninety-Eight - 1 Of 4)

Courtesy of GENERAL MOTORS CORP.

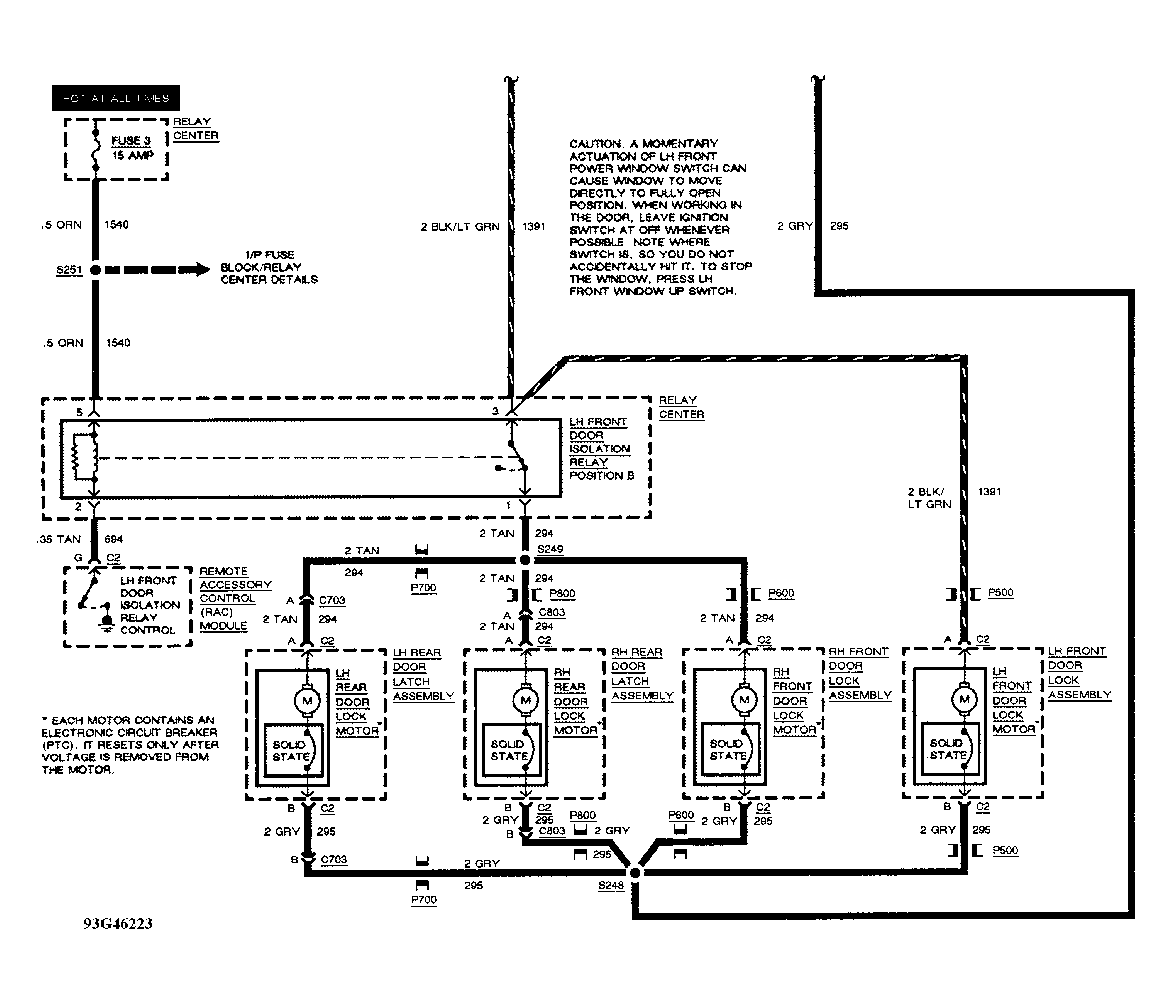

Fig 5: Wiring Diagram (Eighty-Eight & Ninety-Eight - 2 Of 4)

Courtesy of GENERAL MOTORS CORP.

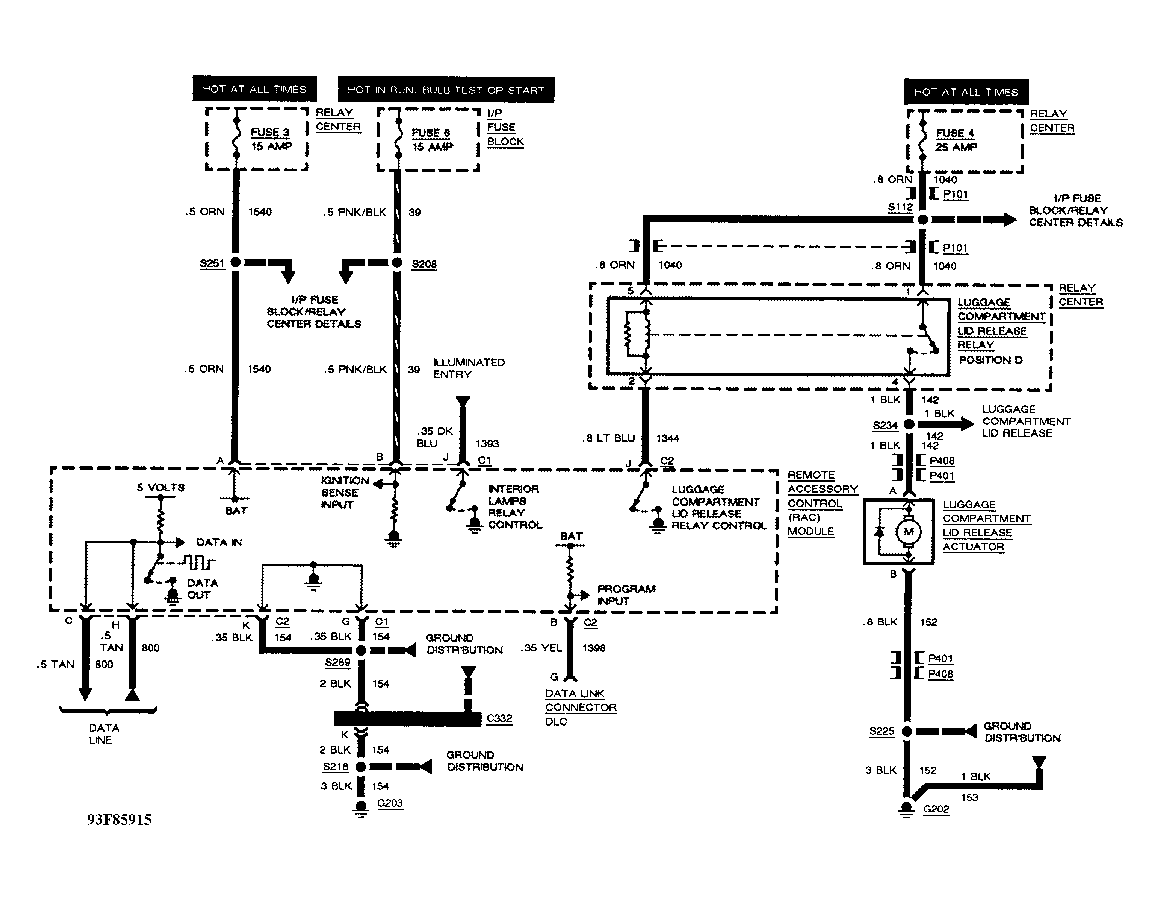

Fig 6: Wiring Diagram (Eighty-Eight & Ninety-Eight - 3 Of 4)

Courtesy of GENERAL MOTORS CORP.

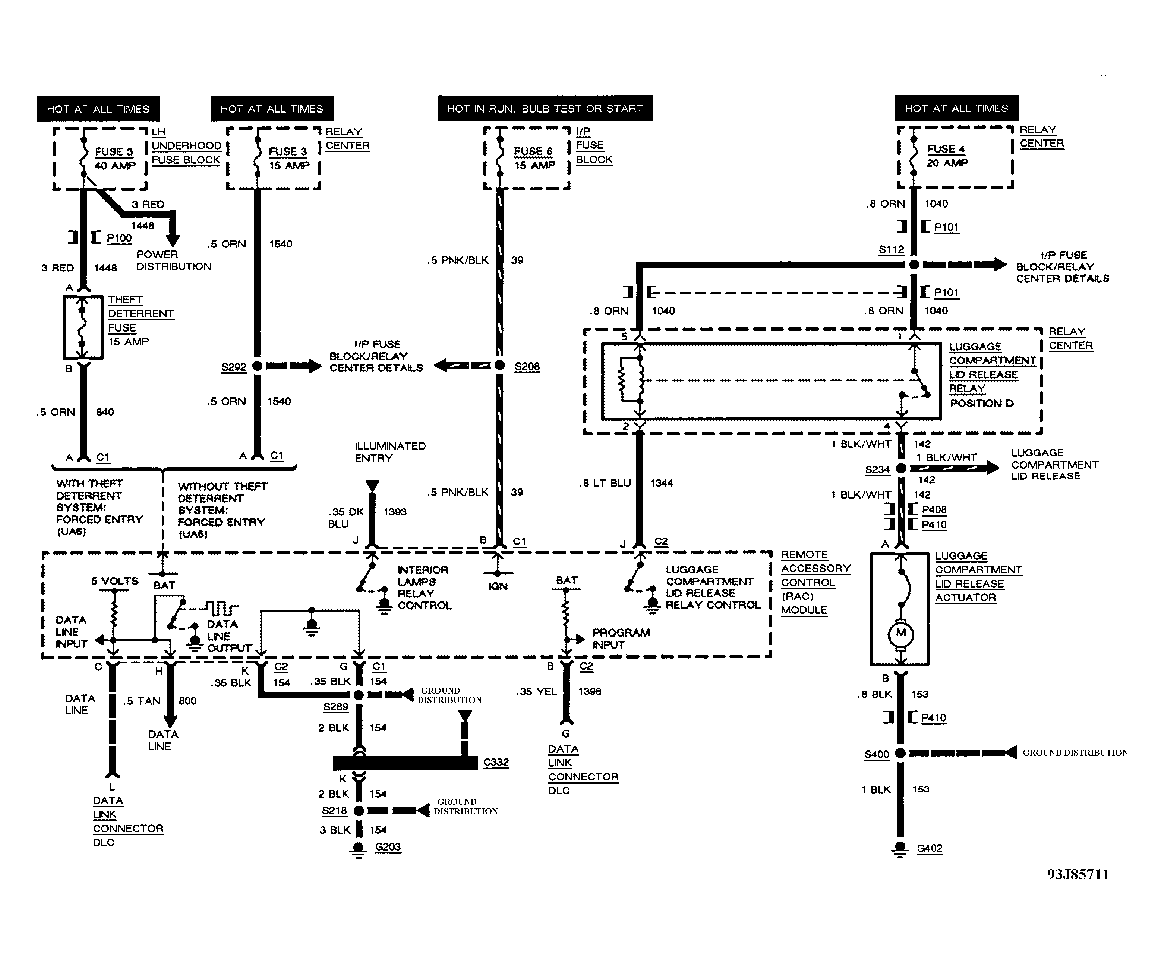

Fig 7: Wiring Diagram (Eighty-Eight & Ninety-Eight - 4 Of 4)

Courtesy of GENERAL MOTORS CORP.
