Home >> Oldsmobile >> 1993 >> Cutlass Ciera L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Pinout Description

Pinout Description

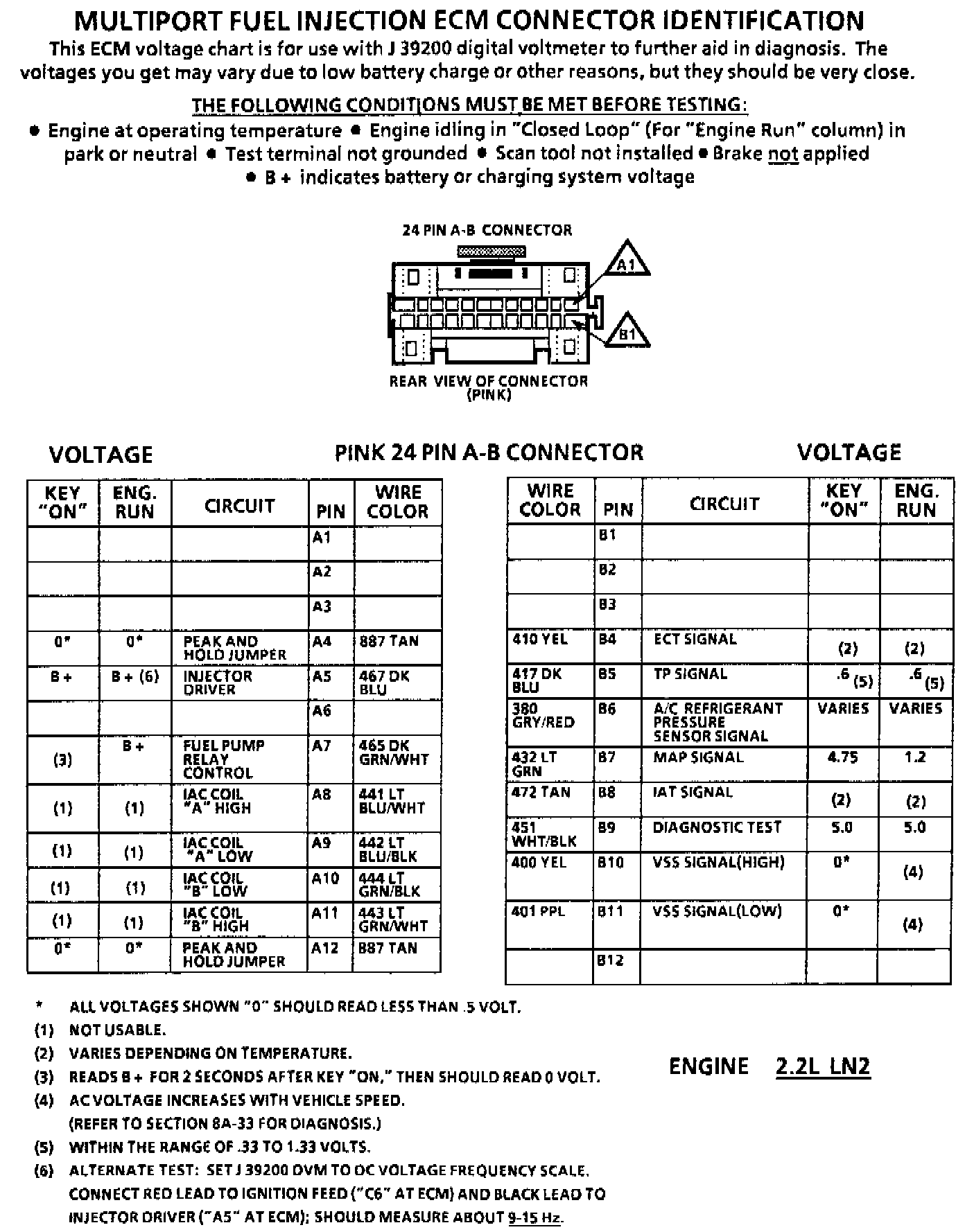

Pink 24 Pin A-B Connector ID:

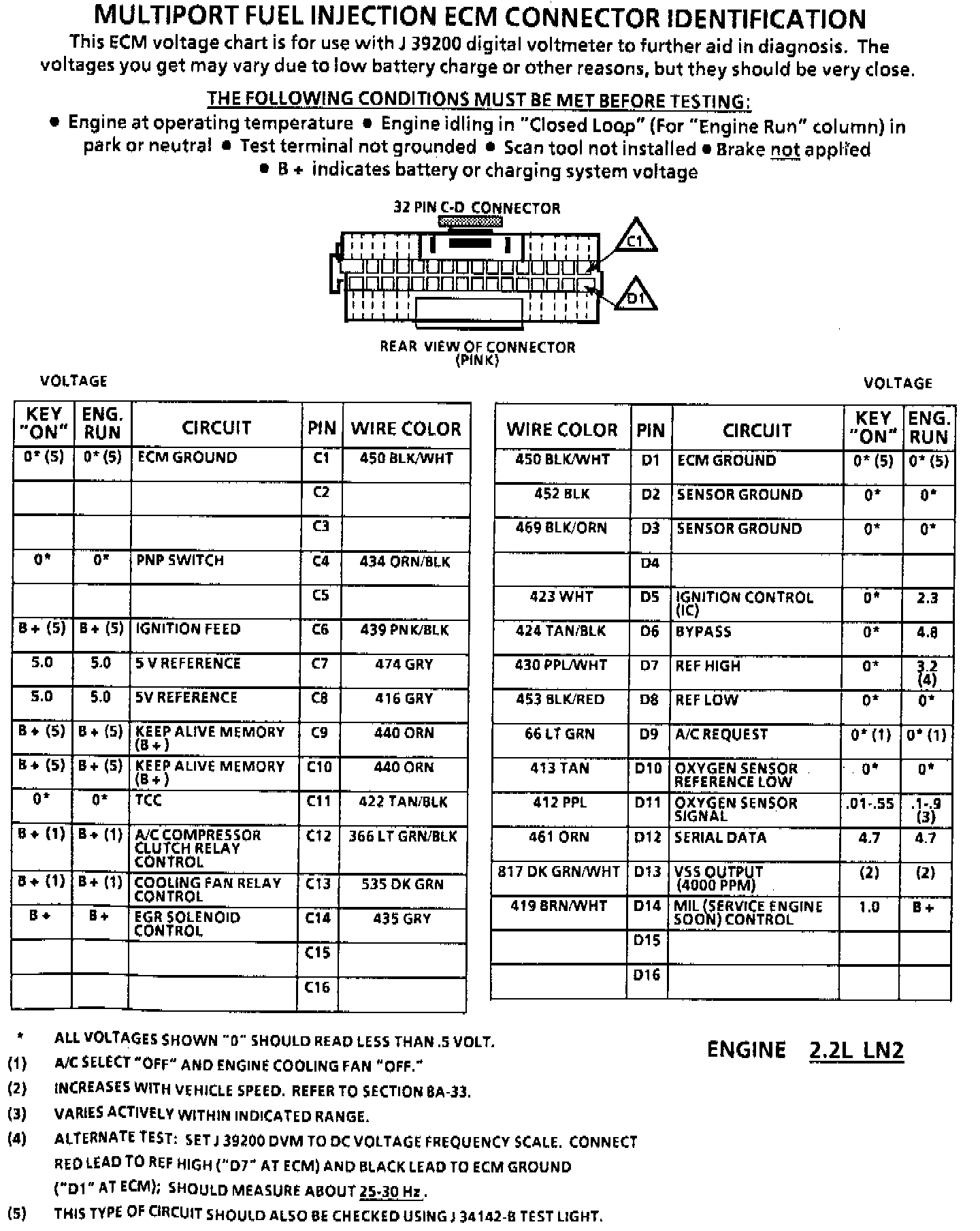

Pink 32 Pin C-D Connector ID:



ECM Connector Pin Voltage Chart:



ECM Connector Pin Voltage Chart:
