Home >> Oldsmobile >> 1993 >> Cutlass Ciera L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Connector C2

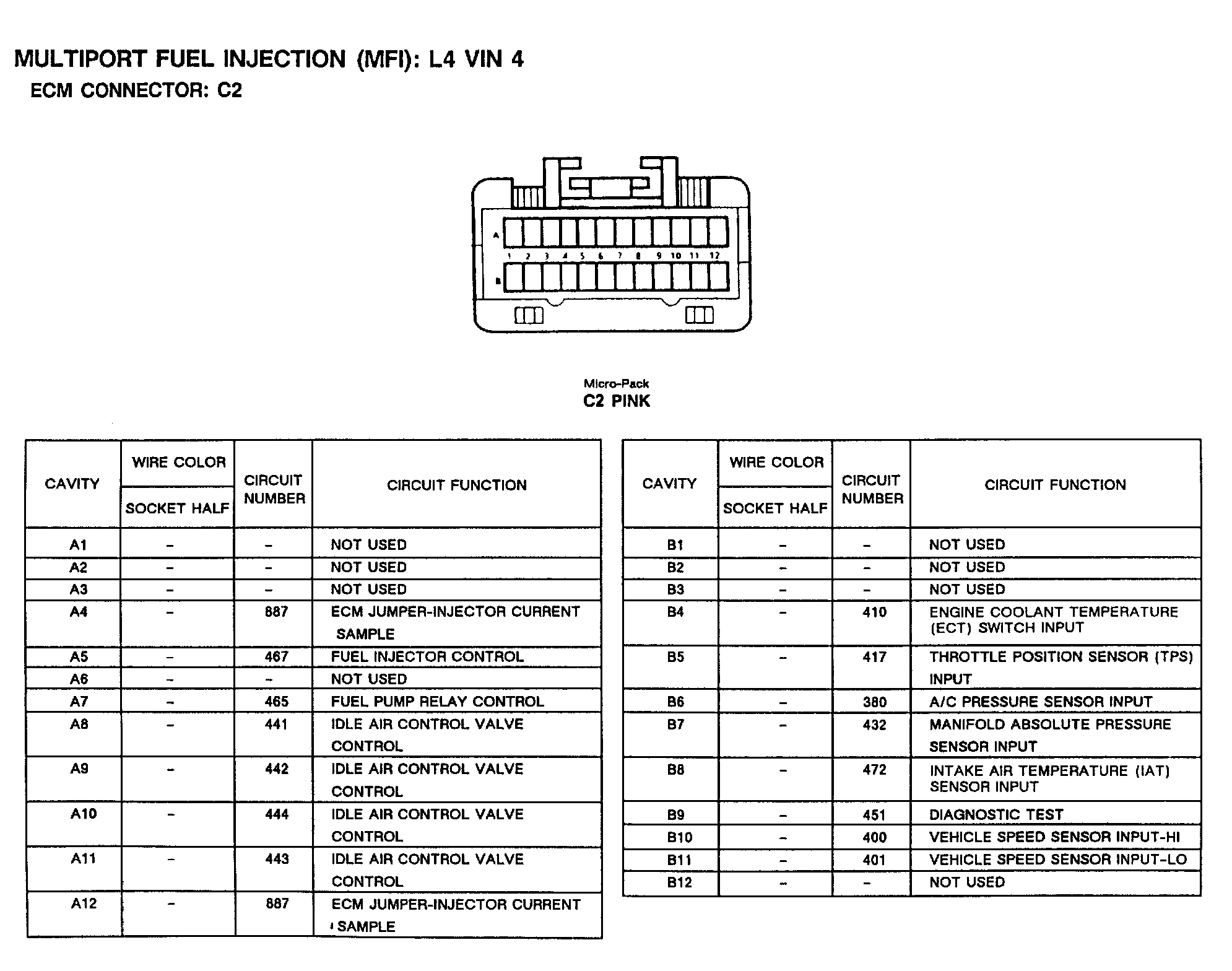

Connector C2
