Home >> Oldsmobile >> 1993 >> Achieva V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

Fuse Block

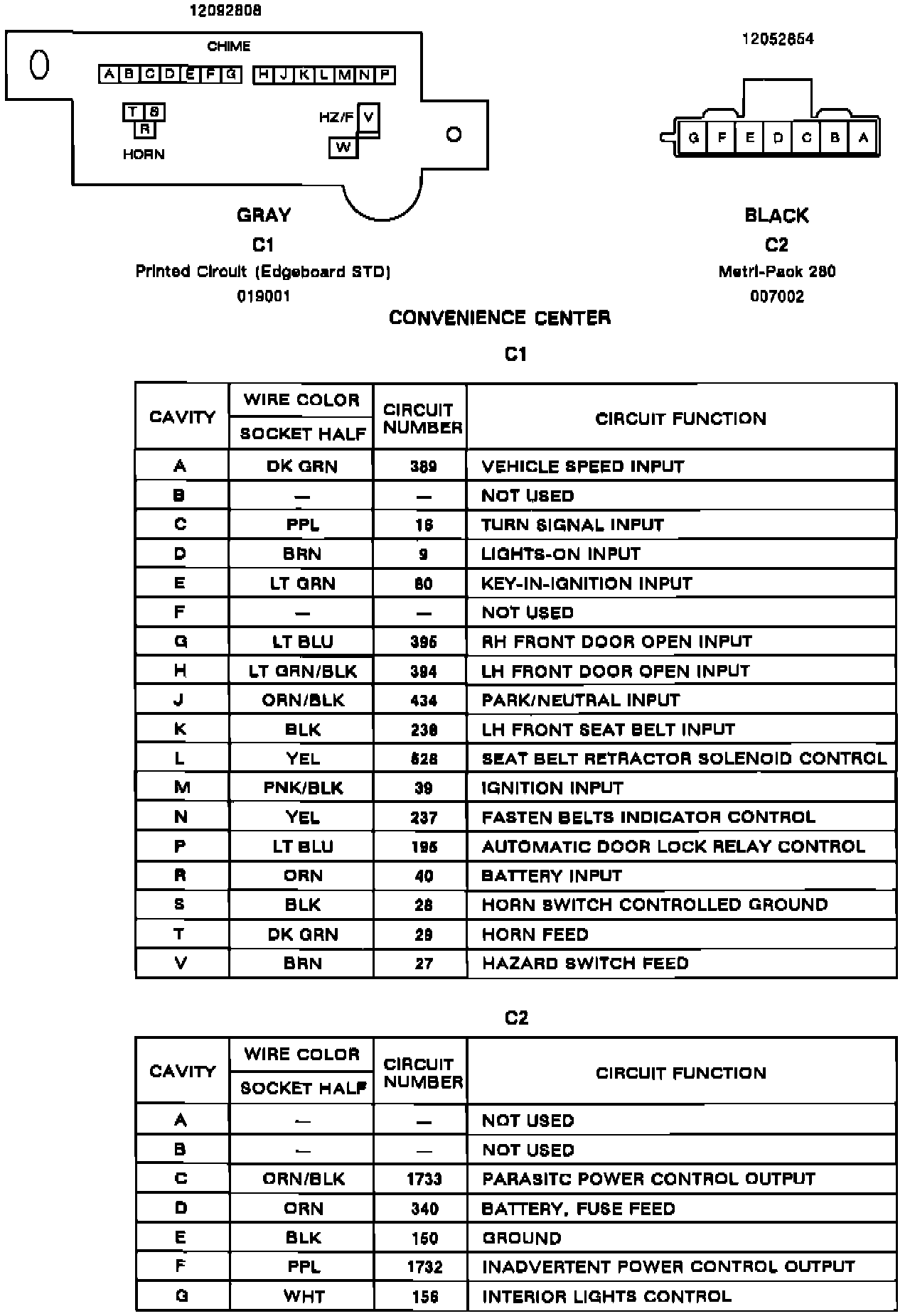

Convenience Center Connector:
