Electrical Specifications

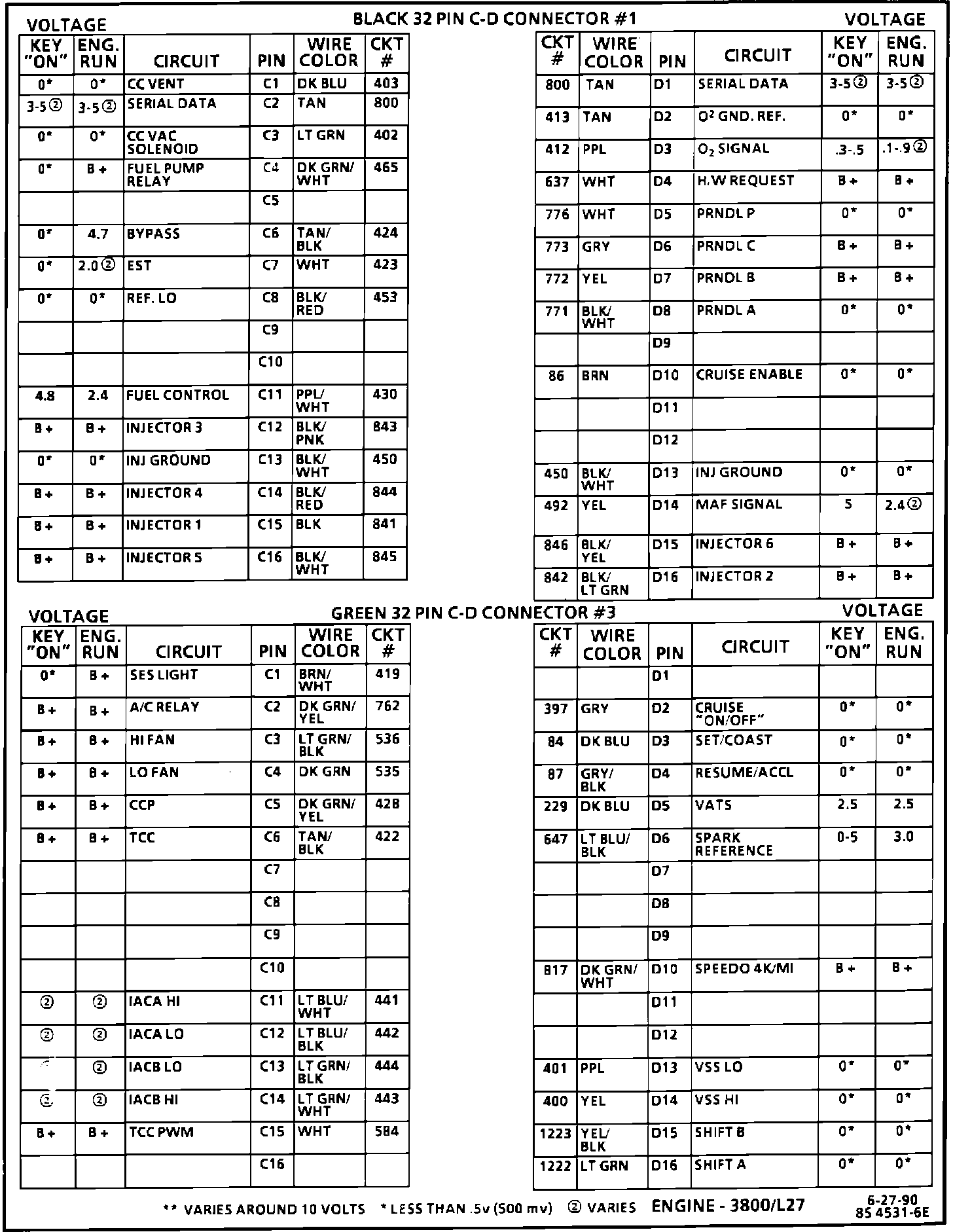

PCM Pin/Voltage Reference Chart (1 Of 2):





Part 1 of 2

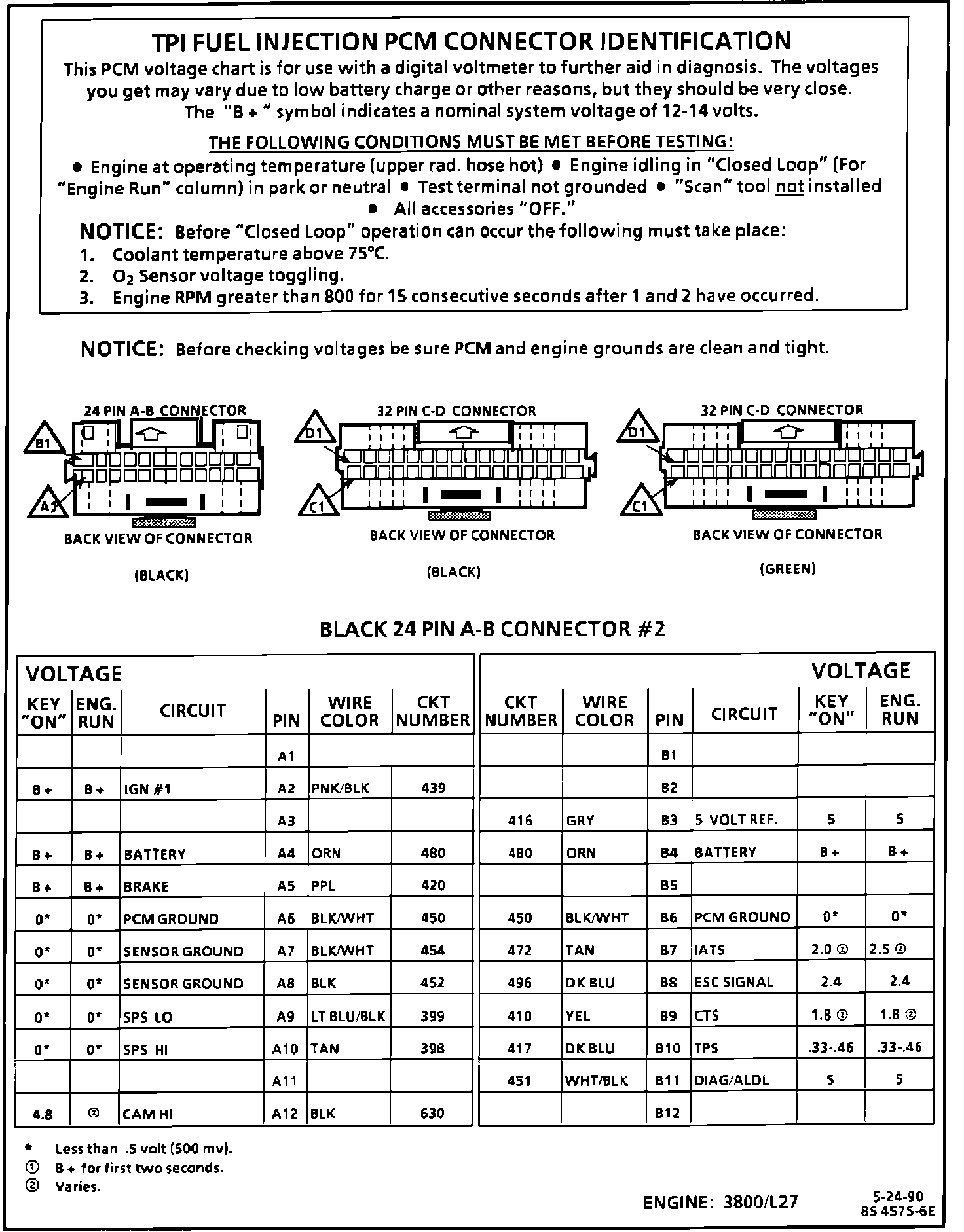

PCM Pin/Voltage Reference Chart (2 Of 2):





Part 2 of 2
