Home >> Oldsmobile >> 1992 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Components

Timing Components

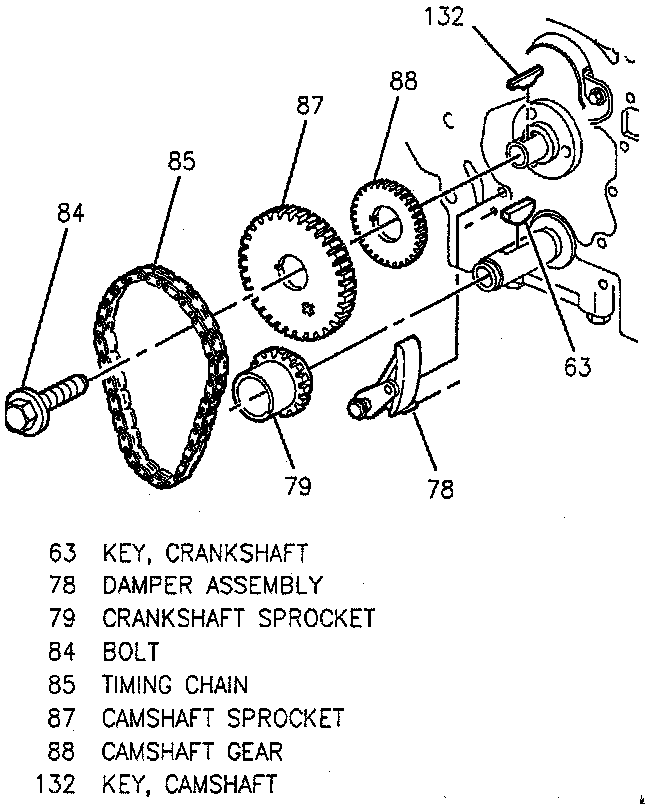

Timing Chain And Sprockets:
