System Diagram

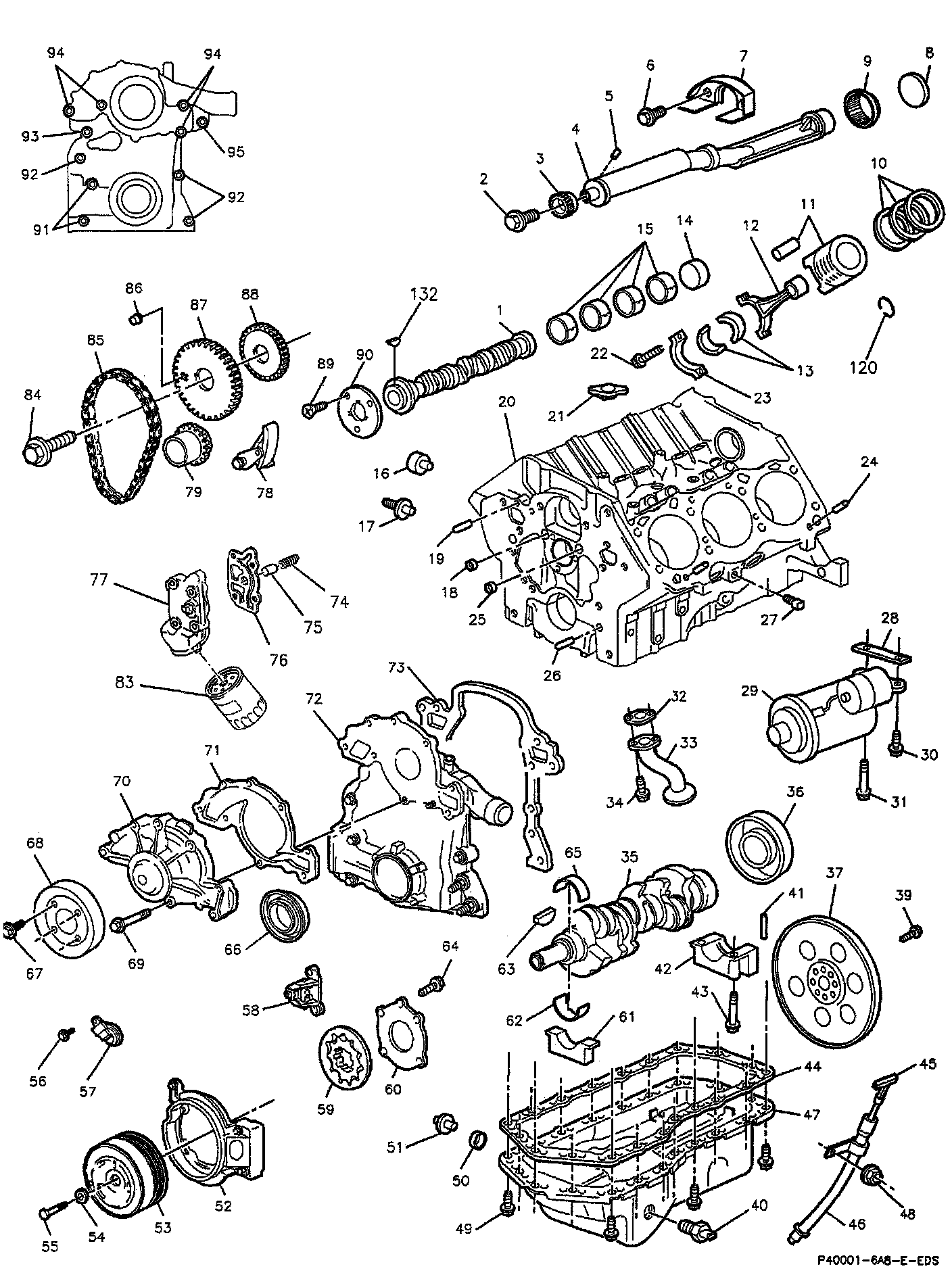

Disassembled Lower Engine:

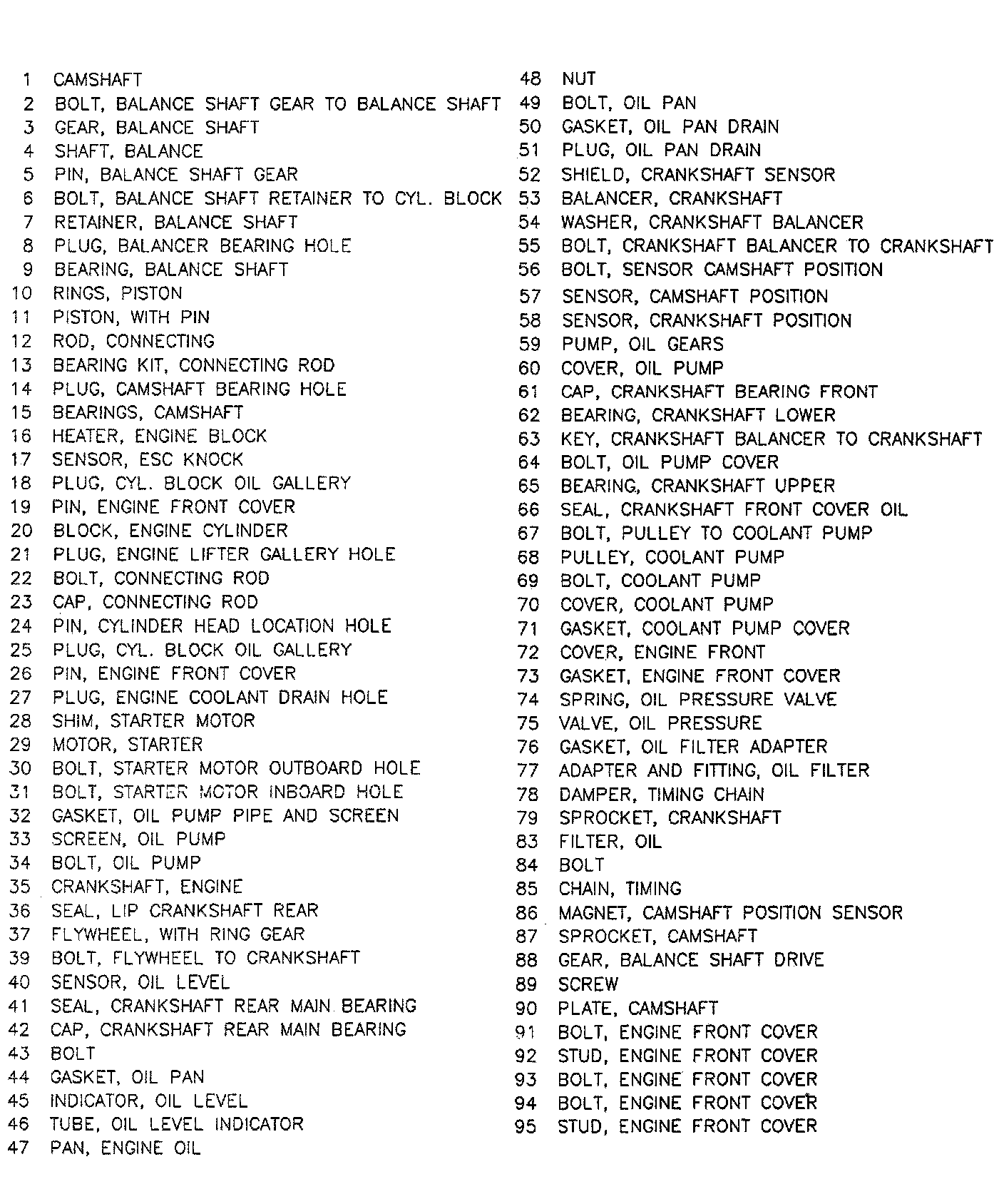

Legend, Lower Engine:

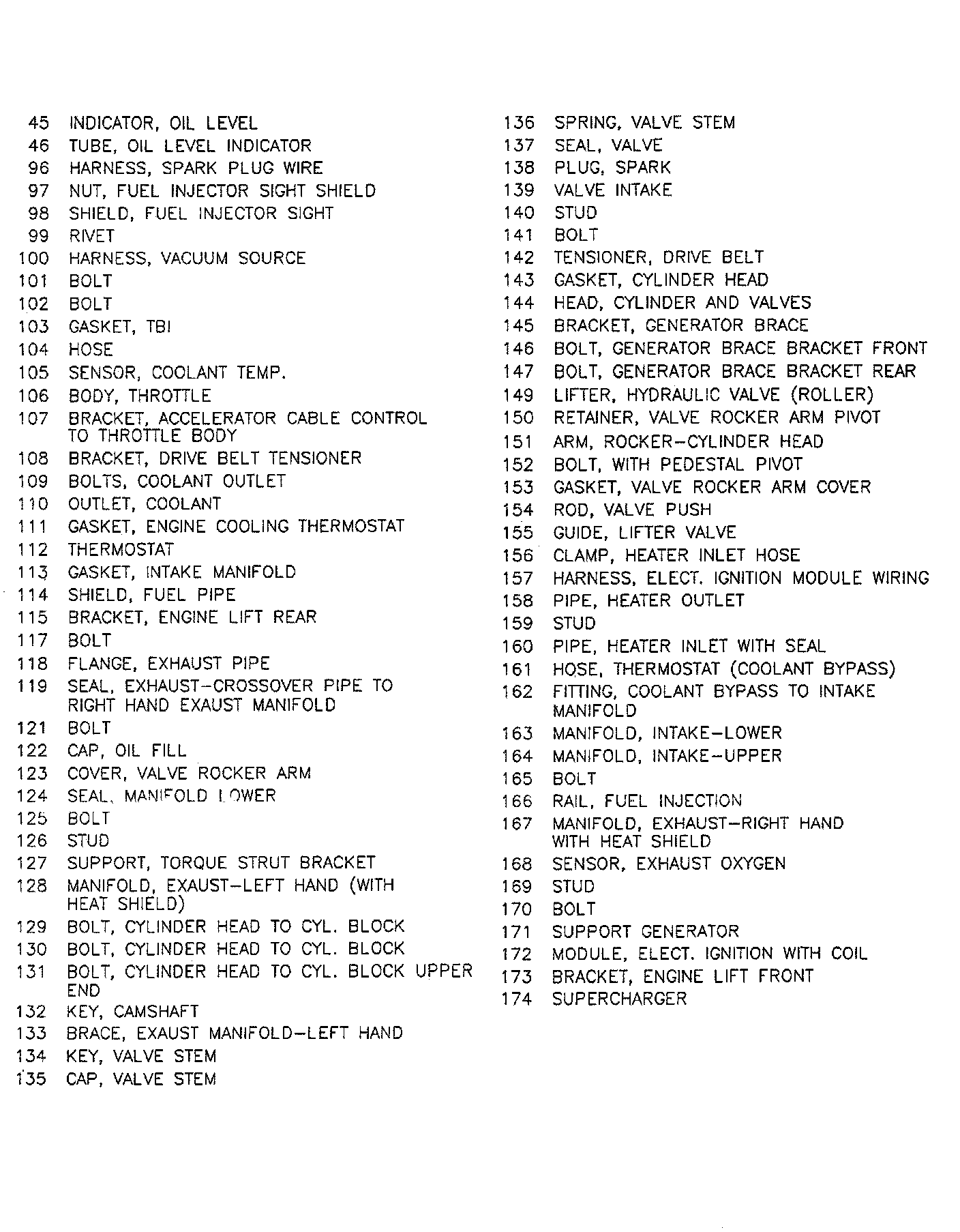

Legend, Upper Engine:

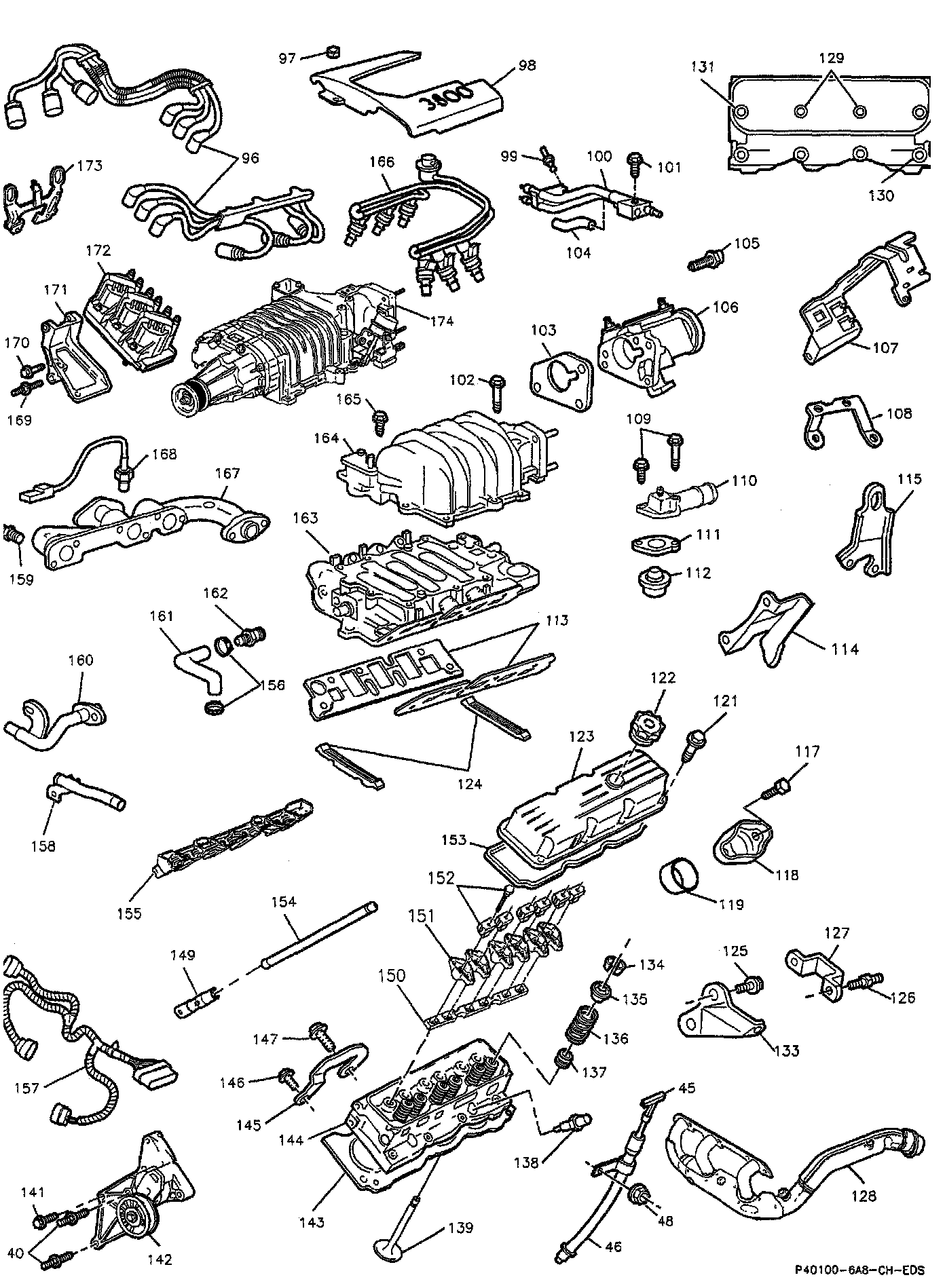

Disassembled Upper Engine:
