Home >> Oldsmobile >> 1992 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

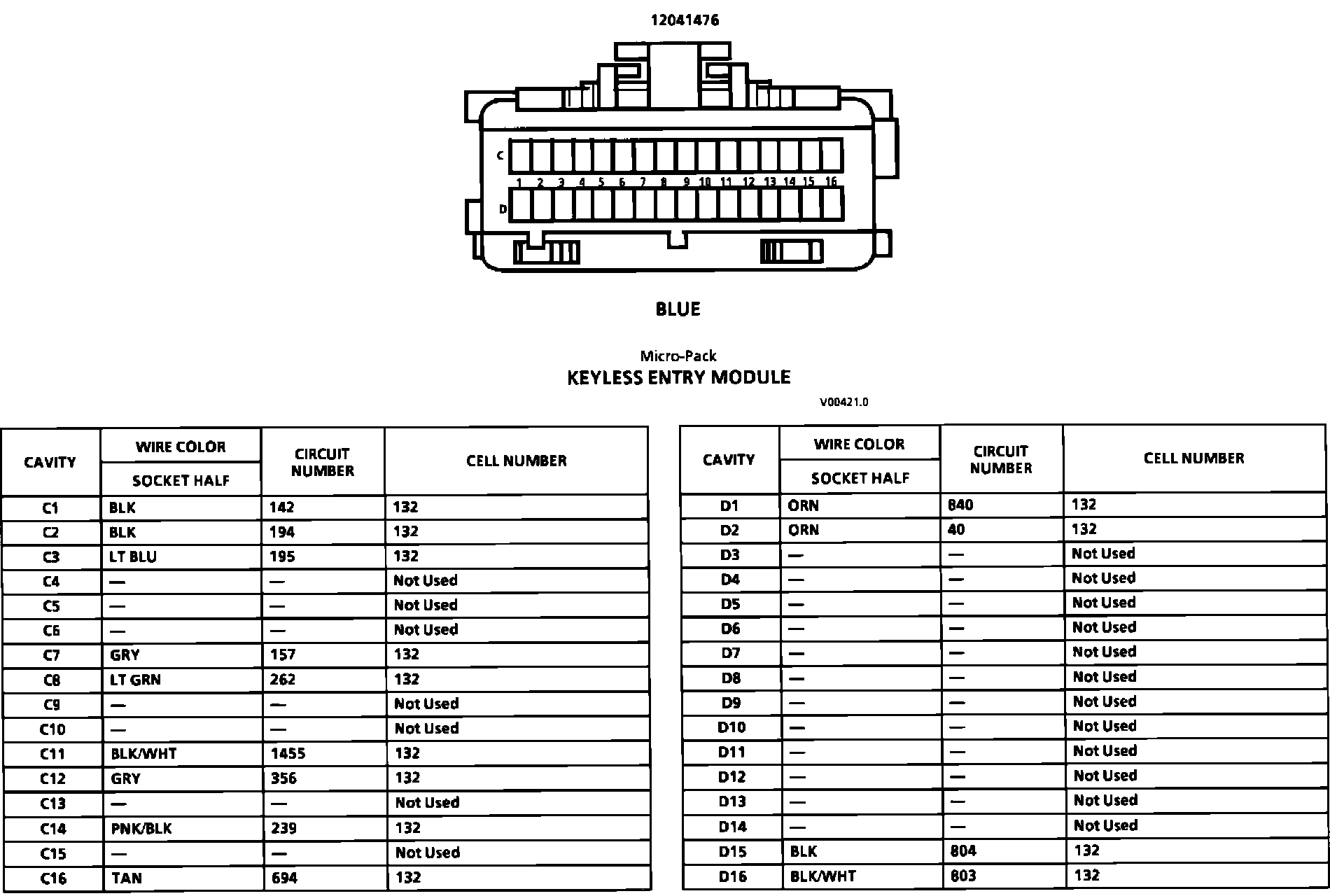

Keyless Entry Module

Connector View.:
